QUAD-M2-PCIE-CARD-B - Cables & Adaptors by StarTech.com

Quad M.2 NVMe / AHCI | PCIe 4.0 x16 Slot | Bifurcation

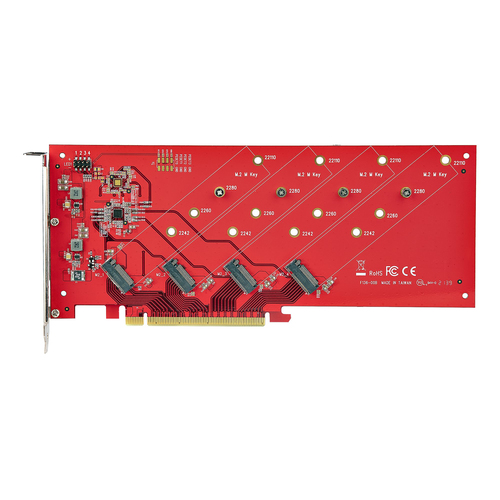

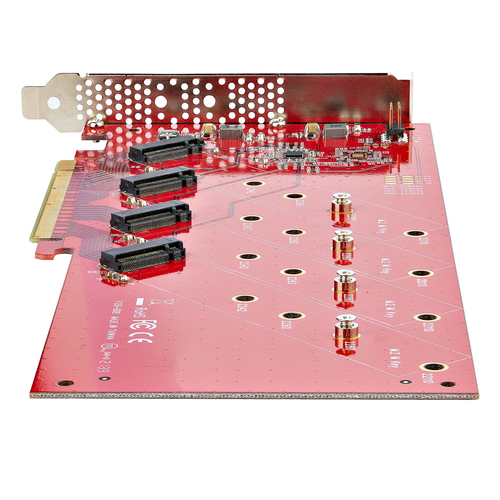

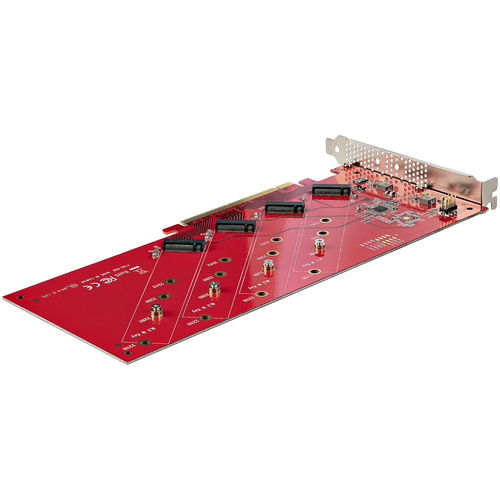

This Quad M.2 PCIe SSD Adapter adds up to four high performance PCIe M.2 SSDs (NVMe and AHCI) using the PCIe x16 slot of a desktop, workstation, or server.

Boost System Performance

Take full advantage of the fast performance and compact size of PCIe M.2 internal solid-state drives, with read and write speeds up to 7.8GBps per drive.

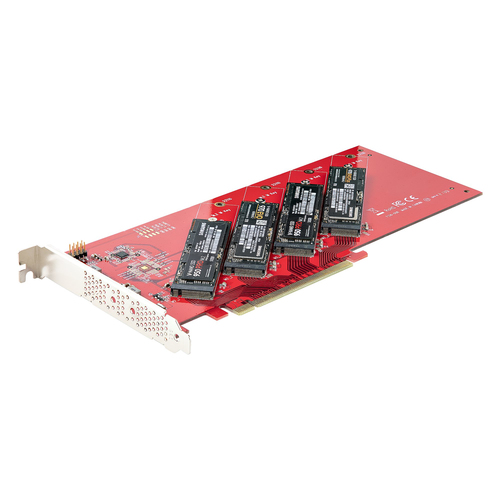

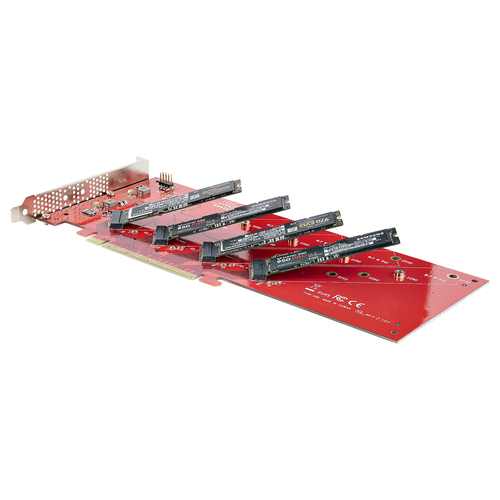

Access Four M.2 PCIe SSDs Simultaneously

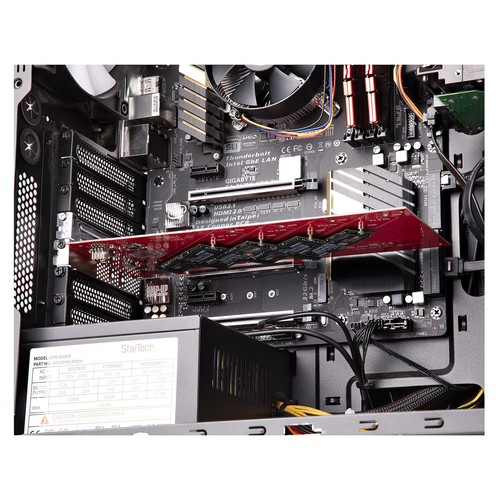

No on-board chip leads to wide system compatibility. This card requires PCIe bifurcation, meaning it easily integrates into any system with an available x16 PCIe slot that supports PCIe bifurcation.

Utilize software RAID, such as Storage Spaces (Microsoft) or mdraid/mdadm (Linux), to build a RAID array, adding redundancy or enhancing system performance.

Wide Compatibility

The PCIe M.2 NGFF (M Key or B+M Key) adapter supports PCIe NVMe and PCIe AHCI M.2 SSDs including 2242, 2260, 2280 and 22110mm drives. The PCIe M.2 Adapter Card does not require any software or drivers, meaning it works with most operating systems - if the computer/motherboard supports bifurcation.

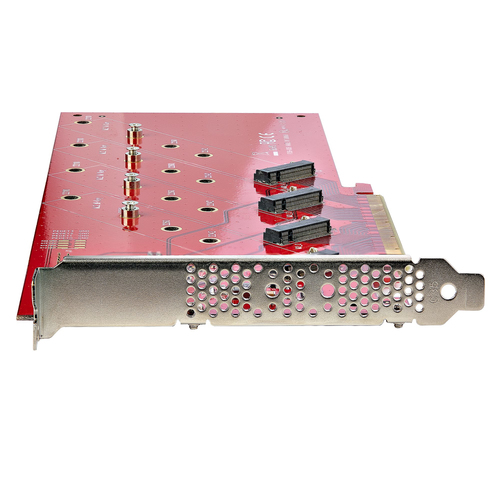

Vented Brackets

The pre-installed full-profile vented bracket increases air flow to improve heat dissipation, which aids in maintaining optimal and reliable operating temperatures.

The QUAD-M2-PCIE-CARD-B is backed for 2-years by StarTech.com, including free 24/5 multi-lingual technical assistance

The StarTech.com Advantage

3 IN STOCK

RRP Price €198.24

Specifications

Ports & interfaces

Host interface
PCIe
Output interface
M.2
Expansion card standard
PCIe 4.0
Number of M.2 (M) slots
4

Design

Internal
Yes
Product colour
Red
LED indicators
Yes
Mean time between failures (MTBF)
4353192 h

Features

Data transfer rate (max)
7.8 Gbit/s
Plug and Play
Yes

Operational conditions

Operating temperature (T-T)
-40 - 80 °C
Storage temperature (T-T)
-40 - 85 °C
Operating relative humidity (H-H)
15 - 90%

Weight & dimensions

Width
290 mm
Depth
170 mm
Height
30 mm
Weight
150 g

Packaging data

Screws included
Yes
Quick installation guide
Yes
Package width
290 mm
Package depth
120 mm
Package height
30 mm
Package weight
150 g

Logistics data

Products per master (outer) case
30 pc(s)
Master (outer) case width
380 mm
Master (outer) case length
500 mm
Master (outer) case height
310 mm

Accessories
