RK519WALLV - Accessories by StarTech.com

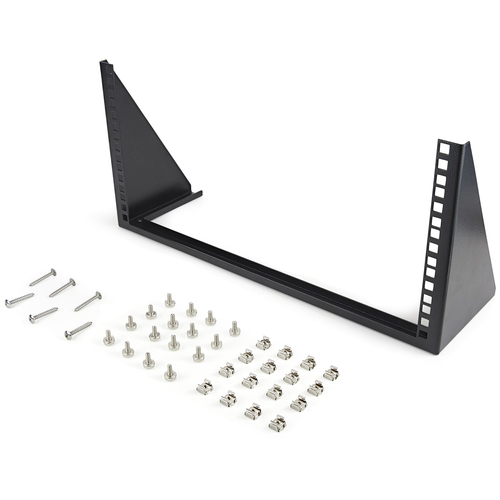

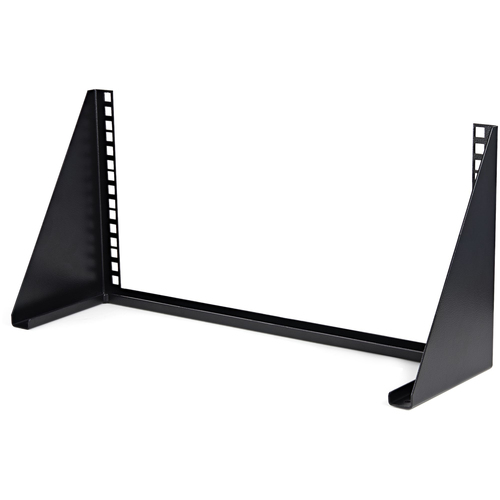

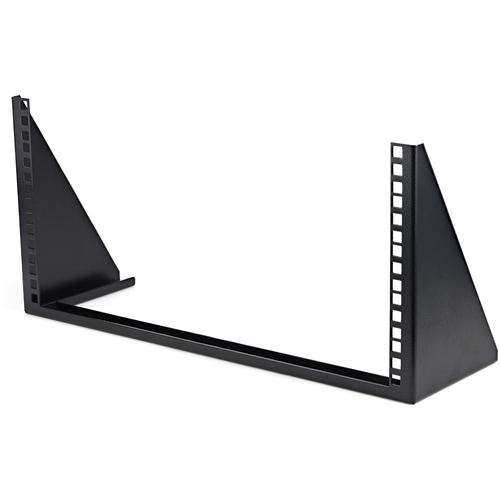

Mount server, network or telecommunications devices vertically with this 4U wall-mountable rackThe RK519WALLV 5U Wallmount Rack Bracket offers a versatile storage solution, allowing equipment (Network devices, power strips, patch panels) to be mounted vertically (flush with the wall) to save space. Alternatively, the 5U bracket can be installed under a desk for horizontal installation, making it easy to access installed equipment directly from your workspace. This TAA compliant product adheres to the requirements of the US Federal Trade Agreements Act (TAA), allowing government GSA Schedule purchases.Perfect for SoHo (small office, home office) environments, the wallmount bracket offers space-saving installation for environments lacking the footprint space for a full size server equipment rack.Suitable for mounting on virtually any wall/ceiling surface (e.g. drywall), the bracket mounting holes (used to mount to a wall or the desk underside) are positioned at exactly 16in apart, matching standard construction framework.Constructed to EIA-310 19in rack standards, the wallmount bracket features a sturdy steel design and is backed by StarTech.com's Lifetime Warranty.Need additional storage? StarTech.com also offers:1U 19in Wallmount Bracket2U 19in Wallmount Bracket3U 19in Wallmount Bracket4U 19in Wallmount BracketThe StarTech.com Advantage- VERSATILE FUNCTIONALITY: This TAA compliant multi-use low profile 5U vertical rack mount bracket enables servers, networking switches, patch panels or AV equipment to be mounted vertically for easy equipment access where a full rack is not desirable- STURDY DESIGN: Constructed to EIA-310 19 inch data rack standards, the wall mount patch panel bracket features durable solid steel construction supporting up to 200 lb (90 kg) while ensuring equipment is mounted safely out of the way- NO ASSEMBLY REQUIRED: The open frame, L-shaped rack kit arrives fully assembled with cage screws for mounting equipment and 1 ½” screws for mounting the rack to wood surfaces; it’s a convenient solution for all your small/home office needs

3 IN STOCK

RRP Price €110.74

Specifications

Features

Rack capacity
5U
Type
Wall mounted rack
Maximum weight capacity
90 kg
Product colour
Black
Material
Steel
Frame type
Open
Product design
2-post
Mounting hole shape
Square

Weight & dimensions

Width
235 mm
Depth
500 mm
Height
140 mm
Weight
1.4 kg

Packaging data

Nuts included
Yes
Number of nuts
16
Screws included
Yes
Number of screws
22
Package width
560 mm
Package depth
175 mm
Package height
260 mm
Package weight
2.2 kg

Technical details

Compliance certificates
CE, RoHS

Logistics data

Harmonized System (HS) code
85381000
Master (outer) case width
560 mm
Master (outer) case length
175 mm
Master (outer) case height
260 mm
Products per master (outer) case
1 pc(s)

Other features

Compliance industry standards
EIA/ECA-310-E
