RK9WALM - Accessories by StarTech.com

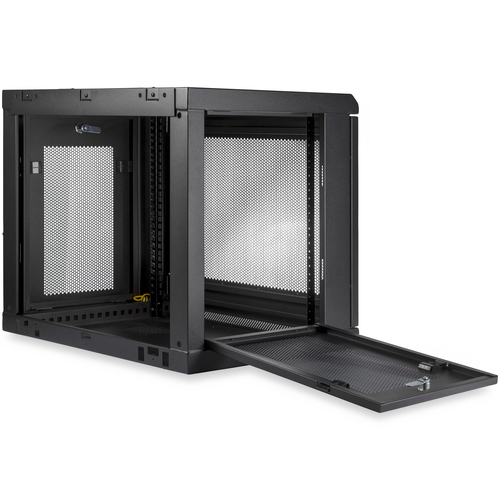

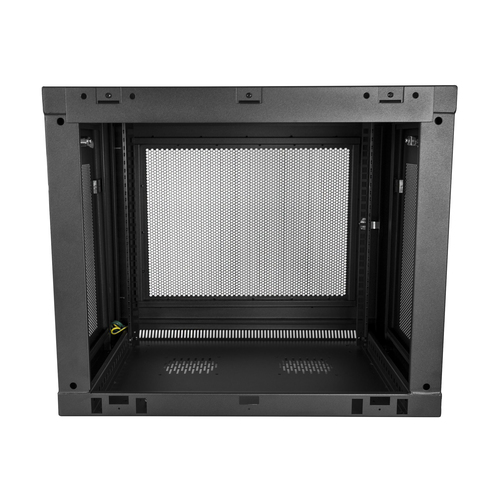

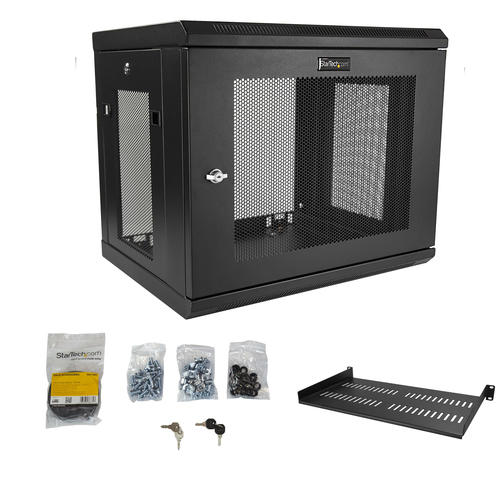

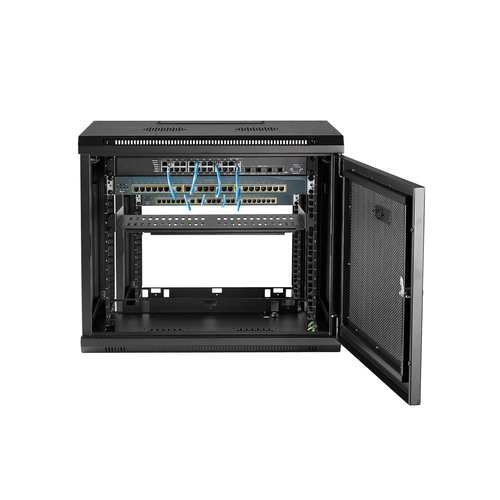

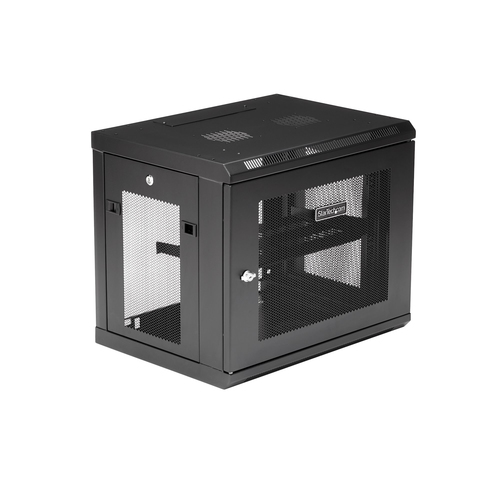

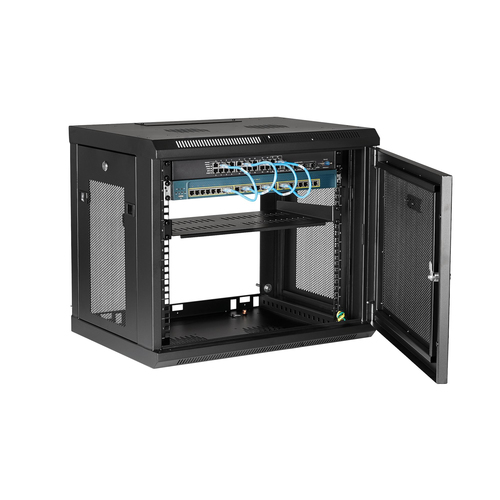

Use this wall mount network cabinet to mount your equipment to the wallThis 9U server rack cabinet lets you mount your EIA-310 compliant equipment to the wall. The enclosure features an adjustable mounting depth from 6 to 15 in. and offers a maximum load capacity of 200 lb. (90 kg).Save space in your office or server roomSave valuable floor space, by wall-mounting the enclosure. The wall-mounted design makes this enclosure the ideal solution for optimizing equipment storage in your classroom, retail store, server room or office. This rack also includes a 1U shelf that gives you a stable surface for storing your tools or placing equipment that's not rack-mountable.Easily install your servers and network equipmentThe wall-mount network rack makes it easy to install your equipment, with 2-post mounting rails that can be positioned to create more room at the front or the back of the enclosure depending on your requirements.The 9U network cabinet features a removable and reversible front door and removable side panels, each with quick-release mechanisms, so you can easily access your equipment. Plus, each door and panel on this rack features an independent lock, ensuring your equipment is secure. The wall-mount server rack also includes all of the cage nuts and mounting screws you'll need to fill the rack with equipment, saving you the time, hassle and cost of sourcing mounting hardware.For hassle-free cable management, the rack includes a 3-meter roll of hook-and-loop cable tie that makes it easy to keep your cables neat and tidy by binding them together or binding them to the rack. The self-gripping fabric can be cut to any size, enabling a wrap-around solution for the cables of any rack-mount equipment.Securely protect your equipmentThis server rack enclosure features heavy-duty steel construction, with lockable doors at all entrances. For hassle-free equipment installation, the mounting rails on the rack can be switched for use with square holes and cage nuts, or tapped rails.To ensure your equipment is running at an optimal temperature, the server rack/cabinet promotes passive cooling. It features mesh doors and vented top and bottom panels for maximum airflow.For simple and sturdy mounting, the rack's mounting holes are positioned 16 in. apart, so you can securely attach it to a wall using wall studs.

7 IN STOCK

RRP Price €344.97

Specifications

Features

Rack capacity
9U
Type
Wall mounted rack
Maximum weight capacity
90 kg
Product colour
Black
Material
Steel
Frame type
Closed
Product design
2-post
Back door construction
Steel
Front door construction
Steel
Removable front door
Yes
Key lock
Yes
Front door key lock
Yes
Adjustable mounting rails
Yes
Cable management
Yes
Mounting hole shape
Square
Assembly required
No
Certification
CE, REACH

Weight & dimensions

Width
600 mm
Depth
450 mm
Height
511 mm
Inner width
59.4 cm
Inner depth
43.3 cm
Weight
17.7 kg
Mounting depth (max)
37 cm

Packaging data

Nuts included
Yes
Number of nuts
36
Screws included
Yes
Number of screws
36
Wall mounting kit
Yes
Manual
Yes
Package width
670 mm
Package depth
530 mm
Package height
580 mm
Package weight
20.8 kg

Technical details

Compliance certificates
RoHS

Logistics data

Harmonized System (HS) code
85381000
Master (outer) case width
670 mm
Master (outer) case length
530 mm
Master (outer) case height
580 mm
Products per master (outer) case
1 pc(s)

Other features

Compliance industry standards
EIA/ECA-310-E

Accessories

License
