Name: StarTech.com Rackmount KVM Console - Single Port VGA KVM with 17" LCD Monitor for Server Rack - Fully Featured Universal 1U LCD KVM Drawer w/Cables &...
Brand: StarTech.com
SKU: RKCONS1701
Price: 1125.79 EUR
Availability: InStock

KVM Console | 1U | VGA | 1280x1024 | Cable & Mounting Hardware Included

Providing centralized control of your PC, server, or KVM switch, this single-port rackmount KVM console gives you easy access to your connected system. With a minimal footprint, it mounts in a server rack or cabinet using only 1U of rack space.

An All-Inclusive Solution

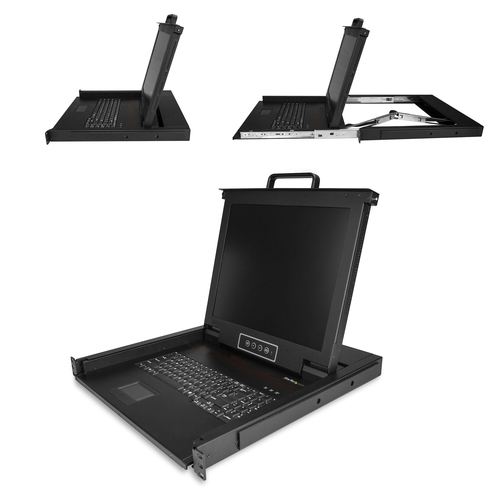

The 1U rackmount console features a built-in keyboard (QWERTY), a touchpad for intuitive control, and a 17-inch LCD display that supports resolutions up to 1280x1024.

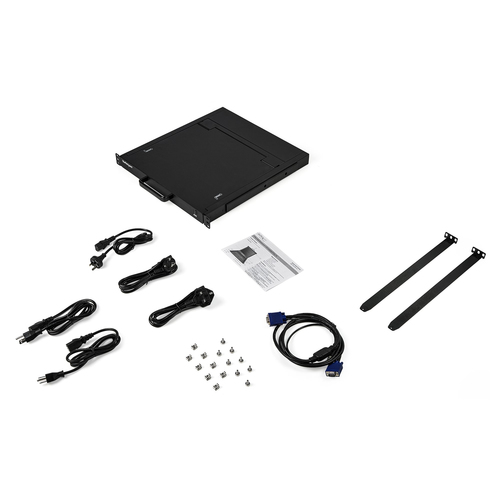

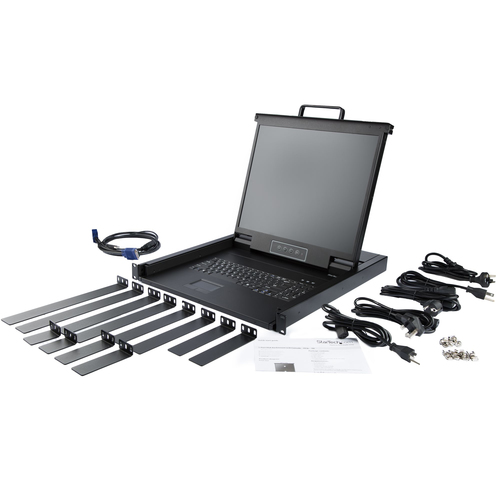

This single-port KVM console includes everything you need to set up right out of the box:

• 1 VGA KVM Cable
• Mounting Rails
• M5 Cage Nuts and Screws

Simple System Integration

The rack console features a single-port KVM module, which can be connected directly to a server or PC, or to a KVM switch for access to multiple systems. The KVM module offers the flexibility you need for easily integrating the console into your existing server infrastructure.

StarTech.com Rack Consoles

Rack consoles provide convenient, rack-mounted control options for single servers or entire server rooms. KVM consoles include LCD display, keyboard, and trackpad, all sliding into 1U of rack space. RKCONS1701 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

3 IN STOCK

RRP Price €1,125.79

Specifications

Display

Display diagonal

43.2 cm (17")

Display resolution

1280 x 1024 pixels

Display brightness

250 cd/m²

Contrast ratio (typical)

1000:1

Viewing angle, horizontal

170°

Viewing angle, vertical

160°

Pixel pitch

0.264 x 0.264 mm

Aspect ratio

5:4

Display type

LCD

Response time

5 ms

Display number of colours

16.78 million colours

Colour depth

8 bit

Technical details

Material

Steel

Mean time between failures (MTBF)

50000 h

Operating relative humidity (H-H)

10 - 80%

Rack mounting

Yes

Daisy chain

Key lock

IP control

LED indicators

Power, Status

Cable length

1.82 m

Compliance certificates

RoHS

Rack capacity

Ports & interfaces

Keyboard port type

USB

Mouse port type

USB

Video port type

VGA

Certificates

Certification

CE, FCC, PSE, UL

Power

Power consumption (typical)

13 W

AC adapter input voltage

100 - 240 V

Input current

1.5 A

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-20 - 60 °C

Weight & dimensions

Width

448 mm

Height

471 mm

Depth

42.5 mm

Weight

11.6 kg

Mounting depth (min)

45 cm

Mounting depth (max)

79 cm

Packaging data

Package weight

17.1 kg

Package width

615 mm

Package depth

765 mm

Package height

185 mm

Packaging content

Cables included

KVM

Screws included

Yes

Number of screws

Mounting brackets included

Yes

Cage nuts included

Yes

Number of cage nuts

Included power plug types

ANZ, EU, JP, NA, UK

Quick installation guide

Yes

Rack mount kit

Yes

Logistics data

Master (outer) case width

615 mm

Master (outer) case length

765 mm

Master (outer) case height

185 mm

Products per master (outer) case

1 pc(s)

Description

Manufacturer

StarTech.com

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

WH3 (5–7 Days)

N/A

Weight

11.6 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
