RX70KMSFPST - Cables & Adaptors by StarTech.com

1000 Mbps (1 Gbps) | Single Mode Fiber | LC | 70 km (43.5 mi) | Lifetime Warranty

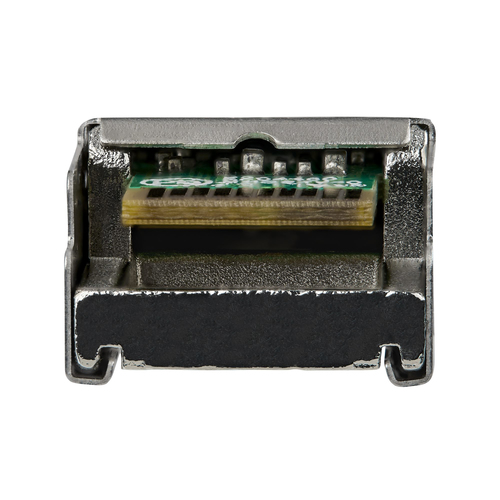

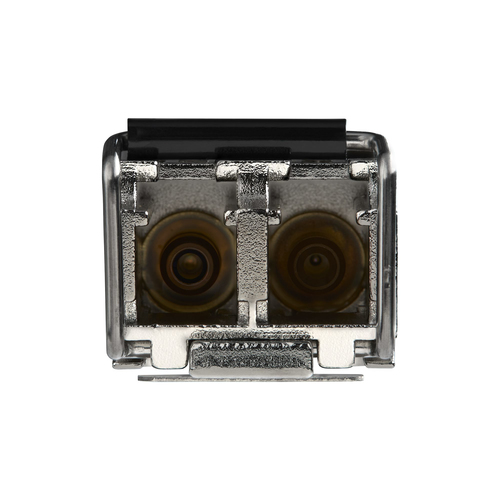

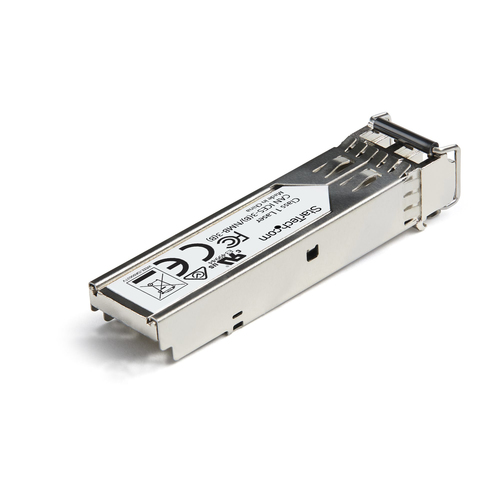

The RX70KMSFPST is a Juniper RX-FXSM-SFP compatible fiber transceiver module that has been designed, programmed and tested to work with Juniper brand switches and routers. It delivers dependable 1 GbE connectivity over fiber cable, for 1000BASE-ZX compliant networks, with a maximum distance of up to 10 km (6.2 mi).

Technical Specifications:

• Wavelength: 1550nm
• Maximum Data Transfer Rate: 1000 Mbps (1 Gbps)
• Type: Single Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 70 km (43.5 mi)
• MTBF: 53,972,659 hours
• Power Consumption: Low power consumption
• Digital Diagnostics Monitoring (DDM): Yes

This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.

The StarTech.com Advantage

ON ORDER

RRP Price €265.73

Specifications

Performance

SFP transceiver type
Fiber optic
Maximum data transfer rate
1000 Mbit/s
Interface type
SFP
Single-mode fiber (SMF) supported
Yes
Multi-mode fiber (MMF) supported
No
Fiber optic connector
LC
SFP transceiver standard
ZX
Maximum transfer distance
70000 m
Wavelength
1550 nm
Fiber ethernet cabling technology
1000BASE
Duplex system
Full
Digital Diagnostics Monitoring (DDM)
Yes

Features

Product colour
Silver
Hot-swap
Yes
Mean time between failures (MTBF)
53972659 h
Brand compatibility
Juniper
Compatible products
RX-70KM-SFP

Certificates

Compliance certificates
RoHS
Certification
CE, FCC, UR, REACH

Weight & dimensions

Width
14 mm
Depth
65 mm
Height
12 mm
Weight
72 g

Packaging content

Quantity per pack
1 pc(s)

Packaging data

Package width
207 mm
Package depth
230 mm
Package height
15 mm
Package weight
80 g

Logistics data

Master (outer) case width
344 mm
Master (outer) case length
295 mm
Harmonized System (HS) code
85369010
Master (outer) case height
255 mm
Products per master (outer) case
1 pc(s)
