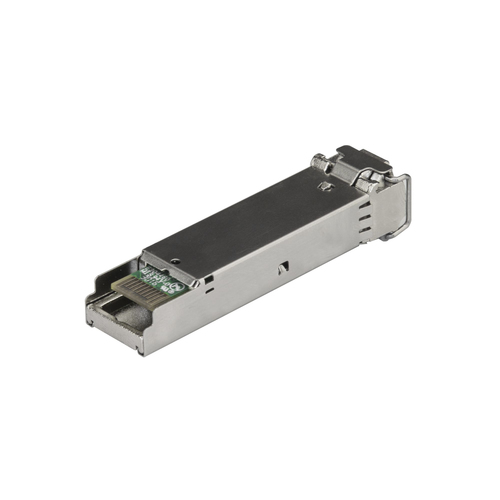

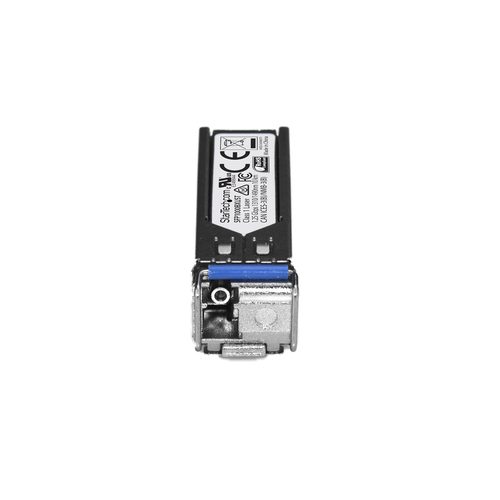

SFP1000BXUST - Cables & Adaptors by StarTech.com

1000 Mbps (1 Gbps) | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty

The SFP1000BXUST is an MSA compliant upstream fiber SFP transceiver which pairs with StarTech.com's SFP1000BXDST. They are designed, programmed and tested to work with 1000BASE-BX compatible MSA switches and routers. The SFP transceiver module supports a maximum distance of up to 10 km (6.2 mi) and delivers dependable 1 GbE connectivity over fiber cabling.

Technical Specifications:

• Wavelength: 1310nmTx/1490nmRx
• Maximum Data Transfer Rate: 1.25 Gbps
• Type: Single Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 10 km (6.2 mi)
• Power Consumption: Less than 1 Watt
• DDM: Yes

This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.

The StarTech.com Advantage

ON ORDER

RRP Price €104.40

Specifications

Performance

SFP transceiver type
Fiber optic
Maximum data transfer rate
1250 Mbit/s
Interface type
SFP
Single-mode fiber (SMF) supported
Yes
Fiber optic connector
LC
SFP transceiver standard
BX
Maximum transfer distance
10000 m
Tx power (min)
1310 dBmW
Rx power (min)
1490 dBmW
Networking standards
IEEE 802.3z
Duplex system
Full
Digital Diagnostics Monitoring (DDM)
Yes
Wavelength-division multiplexing (WDM)
No

Features

Product colour
Silver
Housing material
Aluminium
Hot-Plug support
Yes

Power

Power consumption (typical)
1 W

Certificates

Compliance certificates
RoHS
Certification
CE, FCC, UR

Operational conditions

Operating temperature (T-T)
0 - 70 °C
Storage temperature (T-T)
-40 - 85 °C
Operating relative humidity (H-H)
5 - 95%

Weight & dimensions

Width
14 mm
Depth
57 mm
Height
13 mm
Weight
19 g

Packaging content

Quantity per pack
1 pc(s)

Packaging data

Package width
92 mm
Package depth
116 mm
Package height
34 mm
Package weight
48 g

Logistics data

Master (outer) case width
198 mm
Master (outer) case length
304 mm
Harmonized System (HS) code
85369010
Master (outer) case height
164 mm
Products per master (outer) case
20 pc(s)
