SFP10GBLRST - Cables & Adaptors by StarTech.com

SFP10GBLRST - Cables & Adaptors by StarTech.com

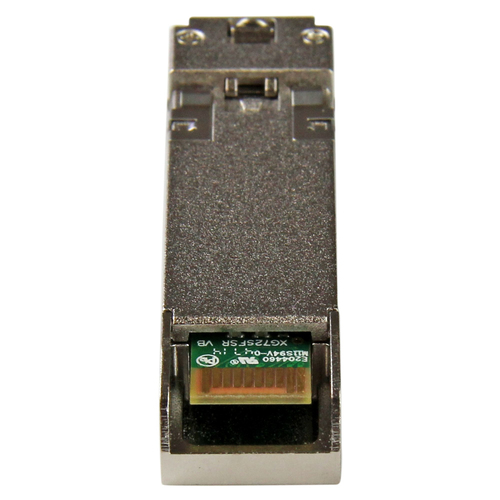

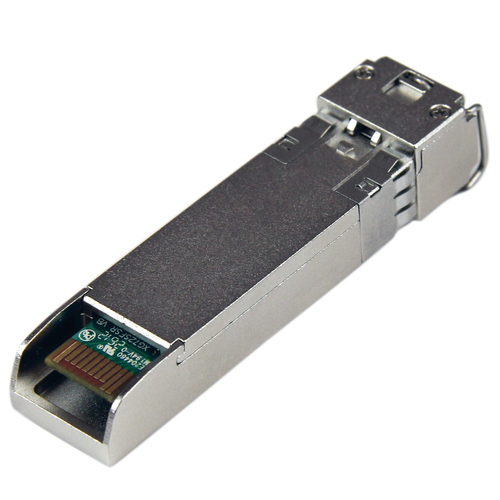

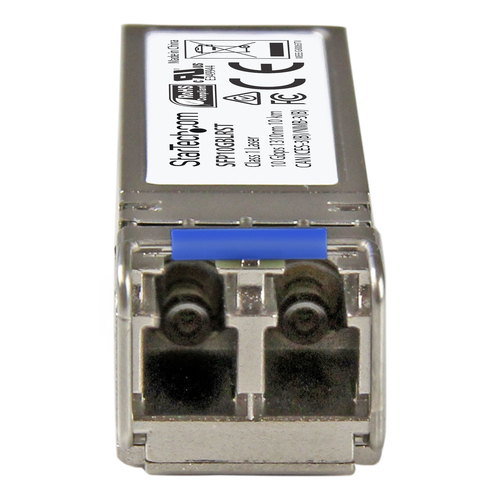

Name: StarTech.com MSA Compliant SFP+ Transceiver Module - 10GBASE-LR~MSA Uncoded SFP+ Module - 10GBASE-LR - 10GbE Single Mode Fiber (SMF) Optic Transceiver...
Brand: StarTech.com
SKU: SFP10GBLRST
Price: 88.84 EUR
Availability: InStock

10 Gbps | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty

The SFP10GBLRST is an MSA compliant fiber SFP transceiver that’s designed, programmed and tested to work with 10GBASE-LR compatible MSA switches and routers. The SFP+ transceiver module supports a maximum distance of up to 10 km (6.2 mi) and delivers dependable 10 GbE connectivity over fiber cabling.

Technical Specifications:

• Wavelength: 1310 nm
• Maximum Data Transfer Rate: 10 Gbps
• Type: Single Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 10 km (6.2 mi)
• Power Consumption: Less than 1.3 Watts
• DDM: Yes

This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.

The StarTech.com Advantage

7 IN STOCK

RRP Price €88.84

Specifications

Performance

SFP transceiver type

Fiber optic

Maximum data transfer rate

10000 Mbit/s

Interface type

SFP+

Single-mode fiber (SMF) supported

Yes

Fiber optic connector

SFP transceiver standard

Maximum transfer distance

10000 m

Wavelength

1310 nm

Networking standards

IEEE 802.3ae

Duplex system

Full

Digital Diagnostics Monitoring (DDM)

Yes

Wavelength-division multiplexing (WDM)

Features

Product colour

Silver

Housing material

Aluminium

Hot-Plug support

Yes

Power

Power consumption (typical)

1.3 W

Certificates

Compliance certificates

RoHS

Certification

CE, FCC, UR

Operational conditions

Operating temperature (T-T)

0 - 70 °C

Storage temperature (T-T)

-40 - 85 °C

Operating relative humidity (H-H)

5 - 95%

Weight & dimensions

Width

13.9 mm

Depth

58.4 mm

Height

12.6 mm

Weight

22 g

Packaging content

Quantity per pack

1 pc(s)

Packaging data

Package width

90 mm

Package depth

115 mm

Package height

30 mm

Package weight

52 g

Logistics data

Master (outer) case width

320 mm

Master (outer) case length

405 mm

Harmonized System (HS) code

85369010

Master (outer) case height

320 mm

Products per master (outer) case

80 pc(s)

Country of origin

China

Description

Manufacturer

StarTech.com

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

WH3 (5–7 Days)

N/A

Weight

0.022 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download

Accessories

No Accessories Found!

License

No License Found!

Related Products

Ubiquiti UACC-OM-MM-10G-D-2 network transceiver module Fiber optic 10000 Mbit/s 850 nm Cables & Adaptors

Multi-mode, duplex, fiber transceiver module.The 10 Gbps Multi-mode Optical Module is a duplex transceiver that delivers up to 10 Gbps speed over distances up to 300 meters.

€37.74

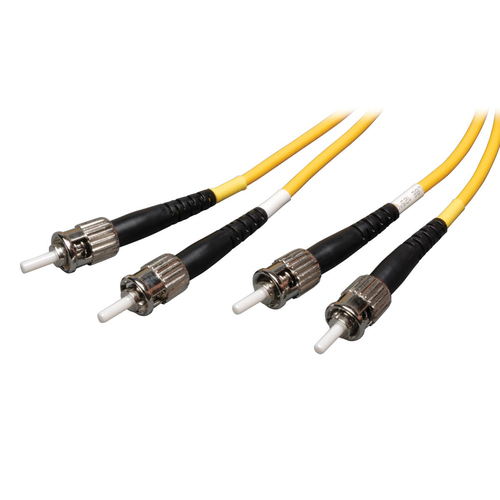

Tripp Lite N352-05M Duplex Singlemode 9/125 Fiber Patch Cable (ST/ST), 5M (16 ft.) Cables & Adaptors

This singlemode duplex fiber optic ST/ST Ethernet cable is manufactured from 9/125 zipcord fiber. The cable has ST connectors on each end, a PVC jacket and is FDDI and OFNR rated. Duplex singlemode fiber is most commonly used in LAN applications.

€17.64

StarTech.com Industrial 6 Port Gigabit Ethernet Switch - 4 PoE RJ45 +2 SFP Slots 30W PoE+ 12-48VDC 10/100/1000 Rugged Power Over Ethernet LAN Switch -40C to 75C - DIN Mountable Cables & Adaptors

Rugged Ethernet Switch | 5 RJ45 (4 PoE) | 2 SFP Slots | 30W PoE+ | 12V-48V DCEasily deploy or scale your network with this Gigabit Ethernet switch, features four dedicated PoE+ enabled ports, and one dedicated open SFP slot plus the flexibility of a switchable RJ-45/Open SFP port for use as an uplink or for non-PoE devices. It features an IP-30 housing, compact design, and is wall and DIN rail mountable.Power Over Ethernet & Low VoltageIdeal for powering PoE devices in situations where a traditional power source is not available; it accepts power as low as 12VDC for applications such as transportation (auto/bus/rail) and solar. PoE output is boosted to PoE/PoE+ standards (IEEE 802.3af/at, 55V) in applications where non-standard 12V (or higher) power sources are available.With a total power budget of 120W, this PSE Ethernet switch provides up to 30W of power per PoE port to IEEE 802.3af (PoE / Type 1) and IEEE 802.3at (PoE+ / Type 2) powered devices (PD) like:• Cameras• Sensors• Wi-Fi access pointsUses Cat 5e (or higher rated) Ethernet cabling.Flexible Power Input & Low VoltagePower input flexibility between 12/24/48/56V DC and low voltage DC inputs reduces the complexities of installation by avoiding additional in-line devices to boost power before it reaches the switch.This unique switch allows for 5x RJ-45 ports (4x PoE) to be active + 1 SFP, or 4 x RJ-45 (all PoE) + 2 SFP, for 6 device connections total.Designed for Harsh EnvironmentsIndustrial features include -40 C to 75 C operating temperature, IP-30 rated housing, vibration, shock, and free-fall standard testing.• Vibration: EN 60068-2-6• Shock: EN 60068-2-27• Free-Fall: EN 60068-2-32Includes an exterior aluminum heat sink for superior passive cooling; 600,000+ hours MTBF rating using Telcordia/Bellcore at 50 C for long-term reliability.Dual Power InputsDual power inputs provide redundancy. Accepts dual terminal block power, allowing the product to be hardwired from multiple power sources for high availabilty applications.The IES1G52UP12V is backed by a StarTech.com 2-year warranty and free lifetime technical support.The StarTech.com Advantage

€488.04

StarTech.com 50cm CAT6 Ethernet Cable - Purple CAT 6 Gigabit Ethernet Wire -650MHz 100W PoE RJ45 UTP Network/Patch Cord Snagless w/Strain Relief Fluke Tested/Wiring is UL Certified/TIA Cables & Adaptors

Make Gigabit Ethernet connections with PoE supportThis Cat6 cable delivers reliable Gigabit network connections, which ensures high-performance capability for your demanding Ethernet applications.Find the length and color you needThis 0.5-meter purple patch cable is perfect for use in server closets, patch panels and with Ethernet hubs. The cable is intended for short-distance applications such as point-to-point in-rack and across-rack network switch and server connections.For easier network installations, our Cat6 patch cables are available in a wide variety of lengths and colors. This ensures you have the right size of cable available when you need it and it lets you color code your connections for a more organized setup.Snagless RJ45 clips help protect your network connectionsFor trouble-free cable runs, this durable cable features snagless connectors that protect the RJ45 clips during installation, making them less likely to snag or break.The cable also features moulded boots which offer connector strain relief by stopping the RJ45 connector termination points from bending at sharp angles. This reduces the risk of damage to the cable, which could decrease network connectivity and performance.100% copper for outstanding valueGet the highest value for your cable investment with our Cat6 Ethernet cables. Each of our patch cables is manufactured using high-quality copper conductors and they are carefully constructed and tested, to keep Near-End Crosstalk (NEXT) well within acceptable limits.24-gauge wire for high-performance network connectionEnsure high-performance capability for your demanding Ethernet applications, such as Power-over-Ethernet and 4K or 1080p video streaming, using cables that include 24 AWG copper.50-micron gold connectors provide peak conductivityYou can rely on our RJ45 connectors to deliver optimum conductivity while eliminating signal loss due to oxidation or corrosion.The N6PATC50CMPL is backed by StarTech.com’s lifetime warranty for guaranteed reliability.The StarTech.com Advantage- High-quality 24 AWG copper wire- ETL verified- HIGH PERFORMANCE CAT6 ETHERNET CABLE: 100% copper for error-free Multi Gigabit 1/2.5/5Gbps connections; 10Gbps up to 50m; Fluke patch cord tested to comply w/ANSI/TIA-568-2.D Category 6 & ETL Verified

€2.51

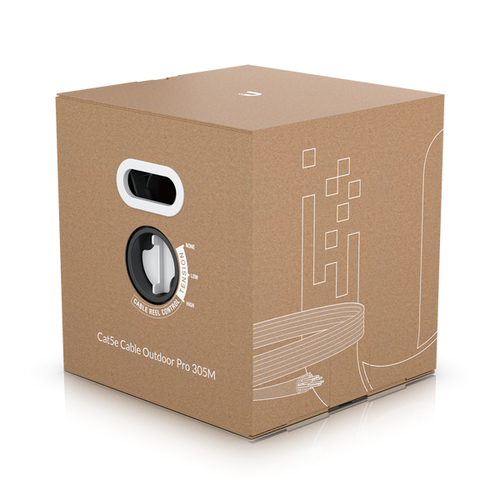

Ubiquiti UACC-CABLE-C5E-OUTDOOR-PRO-305M-W networking cable White Cat5e S/UTP (STP) Cables & Adaptors

Outdoor Category 5e cable designed to resist harsh weather damage and electromagnetic interference.The UniFi Outdoor Cable is an all-weather Category 5e cable designed to protect Gigabit Ethernet links from harsh weather damage and electromagnetic interference with its highly insulating, white, weatherproof jacket and built-in ESD drain wire. This 1,000-foot (305 m) cable also features 24 AWG solid copper conductor pairings and internal foil shielding to optimize connection stability and performance.

€172.25

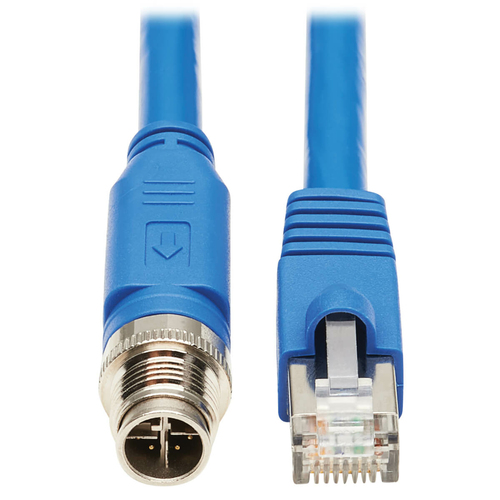

Tripp Lite NM12-6A2-10M-BL M12 X-Code Cat6a 10G F/UTP CMR-LP Shielded Ethernet Cable (M12 M/RJ45 M), IP68, PoE, Blue, 10 m (32.8 ft.) Cables & Adaptors

Cat6a M12 Cable Recommended for Industrial and Other Harsh EnvironmentsThis M12 X-Code cable connects 10 GbE networks in wet/humid environments, places subject to vibration and other areas where protection from harsh elements is essential, such as factories, warehouses, recycling plants, airports, railways and machine shops. The circular M12 connector with 12-millimeter locking thread is especially designed for washdown and corrosive applications, including agriculture, alternative energy, communications, factory automation, measurement and control, robotics, transportation and food/beverage facilities.IP68 Rating Denotes Resistance to Dust and WaterThe IP68 rating means the M12 connector end is not only 100% protected against dust, but also able to endure immersion in 1.5 meters of water for up to 60 minutes with no damage or decline in performance.Supports Power over Ethernet to Save You Money and Give You More Installation ChoicesBecause this Cat6a cable supports high-power 60W PoE, it can supply the power to operate compatible data, voice, security and audio/video PoE devices, such as surveillance cameras, VoIP telephones and access control devices. This saves you the expense and effort of purchasing, connecting and installing individual power supplies for each device, as well as installing separate power and data cables. It also helps you install PoE devices in areas far away from AC outlets, such as poles or ceilings.CMR-LP Certified for Cable Installations with Increased Power LevelsUL's Limited Power (LP) certification indicates the NM12-6A2-10M-BL has been evaluated to handle the marked current under installation scenarios without exceeding the temperature rating of the cable. This CMR-LP-certified cable provides a simple way to prepare installations for increased power levels without having to worry about susceptible issues caused by excessive heat.Colored Blue to Avoid Misidentification That Can Cause Costly DowntimeThis Cat6a F/UTP copper cable features a blue PVC jacket that allows easy, fast identification in field devices, controllers and switches and helps prevent the cable from becoming inadvertently disconnected.

€62.76

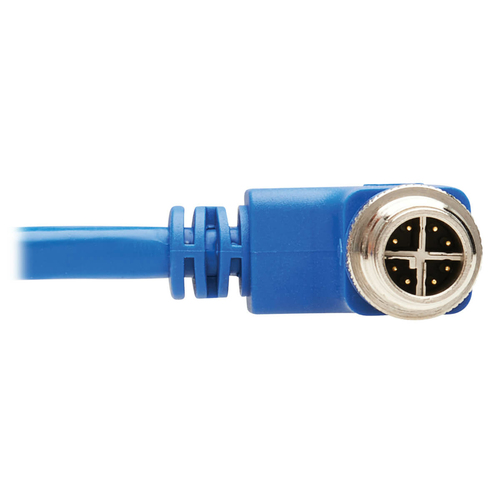

Tripp Lite NM12-604-03M-BL M12 X-Code Cat6 1G UTP CMR-LP Ethernet Cable (Right-Angle M12 M/RJ45 M), IP68, PoE, Blue, 3 m (9.8 ft.) Cables & Adaptors
