StarTech.com MSA Compliant SFP+ Transceiver Module - 10GBASE-ZR~MSA Uncoded SFP+ Module - 10GBASE-ZR - 10GbE Single Mode Fiber (SMF) Optic Transceiver - 10GE Gigabit Ethernet SFP+ - LC 80km - 1550nm - DDM

StarTech.com MSA Compliant SFP+ Transceiver Module - 10GBASE-ZR~MSA Uncoded SFP+ Module - 10GBASE-ZR - 10GbE Single Mode Fiber (SMF) Optic Transceiver - 10GE Gigabit Ethernet SFP+ - LC 80km - 1550nm - DDM

Name: StarTech.com MSA Compliant SFP+ Transceiver Module - 10GBASE-ZR~MSA Uncoded SFP+ Module - 10GBASE-ZR - 10GbE Single Mode Fiber (SMF) Optic Transceiver...
Brand: StarTech.com
SKU: SFP10GBZRST
Price: 2148.55 EUR
Availability: OutOfStock

10 Gbps | Single Mode Fiber | LC | 80 km (49.7 mi) | Lifetime Warranty

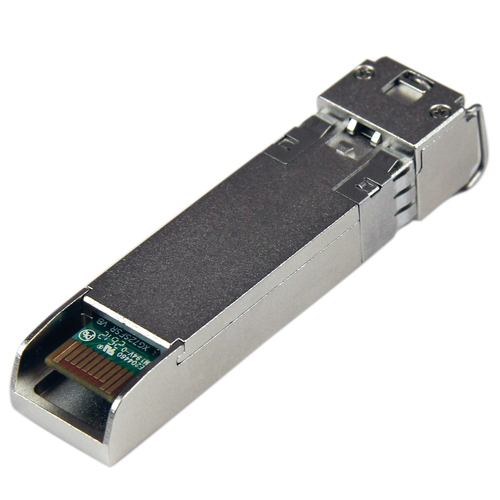

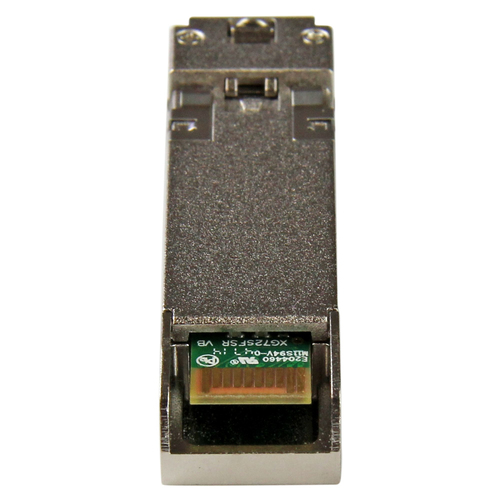

The SFP10GBZRST is an MSA compliant fiber SFP transceiver that’s designed, programmed and tested to work with 10GBASE-ZR compatible MSA switches and routers. The SFP+ transceiver module supports a maximum distance of up to 80 km (49.7 mi) and delivers dependable 10 GbE connectivity over fiber cabling.

Technical Specifications:

• Wavelength: 1550 nm
• Maximum Data Transfer Rate: 10 Gbps
• Type: Single Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 80 km (49.7 mi)
• Power Consumption: Less than 1.6 Watts
• DDM: Yes

This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.

The StarTech.com Advantage

ON ORDER

SKU: SFP10GBZRST

Manufacturer:

StarTech.com

RRP Price €2,148.55

Specifications

Performance

SFP transceiver type

Fiber optic

Maximum data transfer rate

10000 Mbit/s

Interface type

SFP+

Single-mode fiber (SMF) supported

Yes

Fiber optic connector

SFP transceiver standard

Maximum transfer distance

80000 m

Wavelength

1550 nm

Networking standards

IEEE 802.3ae

Duplex system

Full

Digital Diagnostics Monitoring (DDM)

Yes

Wavelength-division multiplexing (WDM)

Features

Product colour

Silver

Housing material

Aluminium

Hot-Plug support

Yes

Power

Power consumption (typical)

1.6 W

Certificates

Compliance certificates

RoHS

Certification

CE, FCC, UR

Operational conditions

Operating temperature (T-T)

0 - 70 °C

Storage temperature (T-T)

-40 - 85 °C

Operating relative humidity (H-H)

5 - 95%

Weight & dimensions

Width

13.9 mm

Depth

58.4 mm

Height

12.6 mm

Weight

24 g

Packaging content

Quantity per pack

1 pc(s)

Packaging data

Package width

90 mm

Package depth

115 mm

Package height

30 mm

Package weight

54 g

Logistics data

Master (outer) case width

315 mm

Master (outer) case length

400 mm

Harmonized System (HS) code

85369010

Master (outer) case height

318 mm

Products per master (outer) case

80 pc(s)

Description

Manufacturer

StarTech.com

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

0.024 kg

Country of Origin

N/A

Datasheet

Data Sheet
