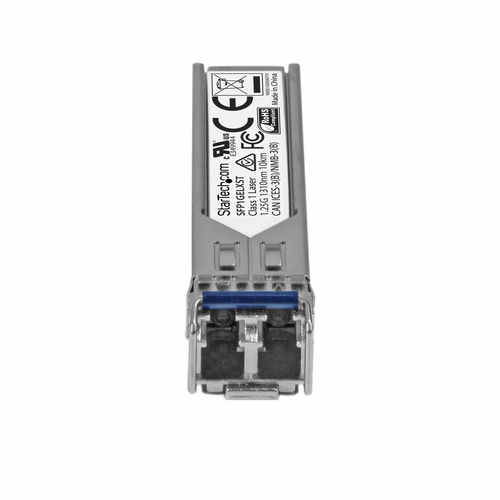

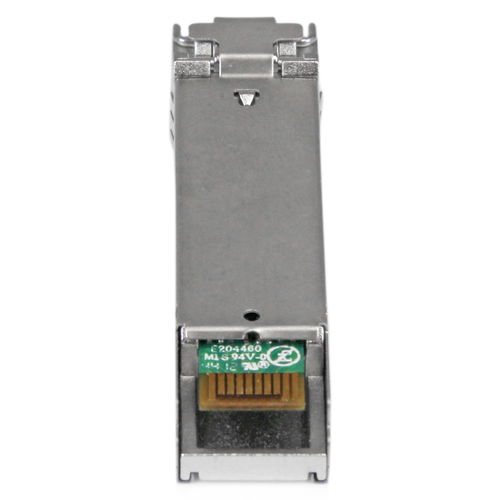

Name: StarTech.com Juniper SFP-1GE-LX Compatible SFP Transceiver Module - 1000BASE-LX~Juniper SFP-1GE-LX Compatible SFP Module - 1000BASE-LX - 1GbE Single M...
Brand: StarTech.com
SKU: SFP1GELXST
Price: 67.74 EUR
Availability: OutOfStock

1000 Mbps (1 Gbps) | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty

The SFP1GELXST is a Juniper SFP-1GE-LX compatible fiber transceiver module that has been designed, programmed and tested to work with Juniper® brand switches and routers. It delivers dependable 1GbE connectivity over fiber cable, for 1000BASE-LX compliant networks, with a maximum distance of up to 10 km (6.2 mi).

Technical Specifications:

• Wavelength: 1310 nm
• Maximum Data Transfer Rate: 1.25 Gbps
• Type: Single Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 10 km (6.2 mi)
• MTBF: 3,092,408 hours
• Power Consumption: Less than 1 Watt
• Digital Diagnostics Monitoring (DDM): Yes

This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.

The StarTech.com Advantage

ON ORDER

RRP Price €67.74

Specifications

Performance

SFP transceiver type

Fiber optic

Maximum data transfer rate

1250 Mbit/s

Interface type

SFP

Single-mode fiber (SMF) supported

Yes

Fiber optic connector

SFP transceiver standard

Maximum transfer distance

10000 m

Wavelength

1310 nm

Networking standards

IEEE 802.3z

Duplex system

Full

Digital Diagnostics Monitoring (DDM)

Yes

Features

Product colour

Silver

Housing material

Aluminium

Hot-swap

Yes

Mean time between failures (MTBF)

3092408 h

Power

Power consumption (typical)

1 W

Certificates

Compliance certificates

RoHS

Certification

CE, FCC, UR

Operational conditions

Operating temperature (T-T)

0 - 70 °C

Storage temperature (T-T)

-40 - 85 °C

Operating relative humidity (H-H)

5 - 95%

Weight & dimensions

Width

13.7 mm

Depth

56.6 mm

Height

12.5 mm

Weight

19 g

Packaging content

Quantity per pack

1 pc(s)

Packaging data

Package width

119 mm

Package depth

93 mm

Package height

33 mm

Package weight

49 g

Logistics data

Master (outer) case width

250 mm

Master (outer) case length

305 mm

Harmonized System (HS) code

85369010

Master (outer) case height

205 mm

Products per master (outer) case

36 pc(s)

Description

Manufacturer

StarTech.com

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

0.019 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
