SFPC1110 - Cables & Adaptors by StarTech.com

10/100/1000 Mbps | Copper | RJ45 | 100 m (328 ft) | Lifetime Warranty

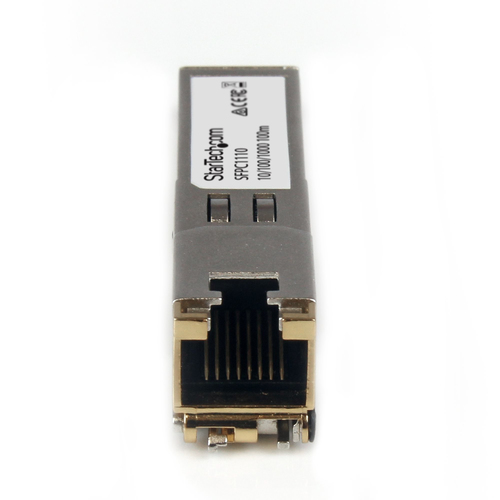

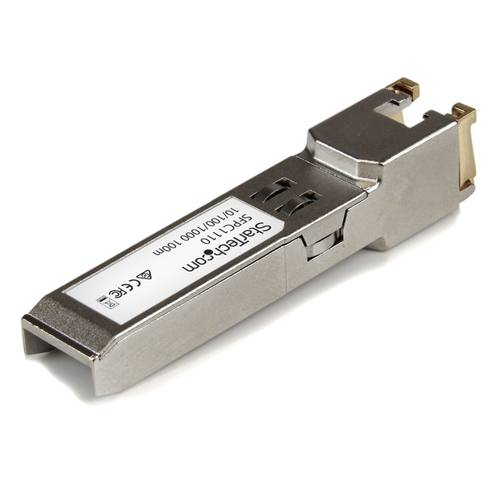

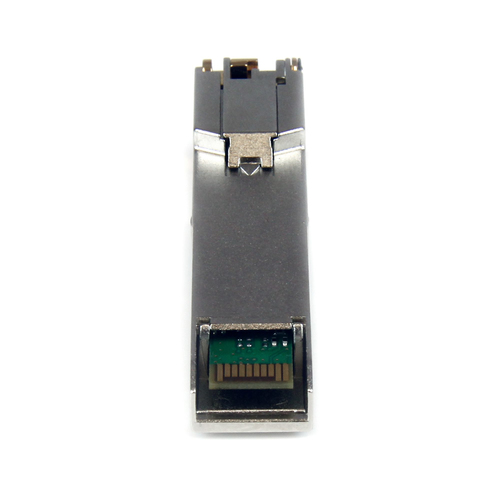

The SFPC1110 is a Cisco SFP-GE-T compatible copper transceiver module that has been designed, programmed and tested to work with Cisco® brand switches and routers. It delivers dependable 1GbE (1000 Mbps) connectivity over copper cable, for 1000BASE-T compliant networks, with a maximum distance of up to 100 m (328 ft).

Technical Specifications:

• Maximum Data Transfer Rate: 1.25 Gbps
• Type: Copper
• Connection Type: RJ45 Connector
• Maximum Transfer Distance: 100 m (328 ft)
• MTBF: 4,655,371 hours
• Power Consumption: Less than 1.3 Watts
• Digital Diagnostics Monitoring (DDM): No

This SFP copper module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.

The StarTech.com Advantage

12 IN STOCK

RRP Price €60.62

Specifications

Performance

SFP transceiver type
Copper
Maximum data transfer rate
1250 Mbit/s
Interface type
SFP
Fiber optic connector
SFP
Maximum transfer distance
100 m
Networking standards
IEEE 802.3ab
Cabling technology
1000BASE-T
Ethernet LAN (RJ-45) ports
1
Auto MDI/MDI-X
Yes
Auto-negotiation
Yes
Digital Diagnostics Monitoring (DDM)
Yes

Features

Product colour
Silver
Hot-swap
Yes
Mean time between failures (MTBF)
4655371 h

Power

Power consumption (typical)
1.3 W

Certificates

Compliance certificates
RoHS
Certification
CE, FCC, UL, REACH

Operational conditions

Operating temperature (T-T)
0 - 70 °C
Storage temperature (T-T)
-40 - 85 °C
Operating relative humidity (H-H)
30 - 70%

Weight & dimensions

Width
13 mm
Depth
70 mm
Height
13 mm
Weight
46 g

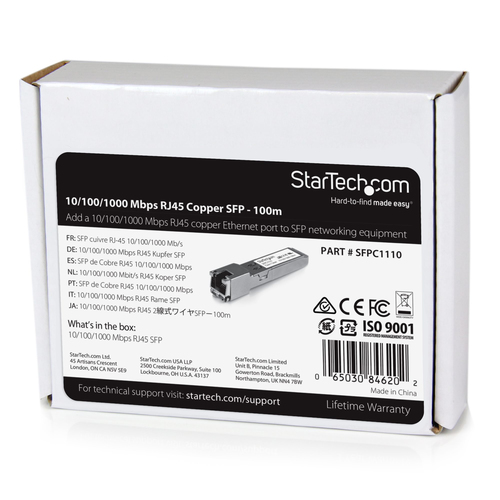

Packaging content

Quantity per pack
1 pc(s)

Packaging data

Package width
92 mm
Package depth
116 mm
Package height
33 mm
Package weight
55 g

Logistics data

Master (outer) case width
206 mm
Master (outer) case length
298 mm
Harmonized System (HS) code
85369010
Master (outer) case height
248 mm
Products per master (outer) case
36 pc(s)
