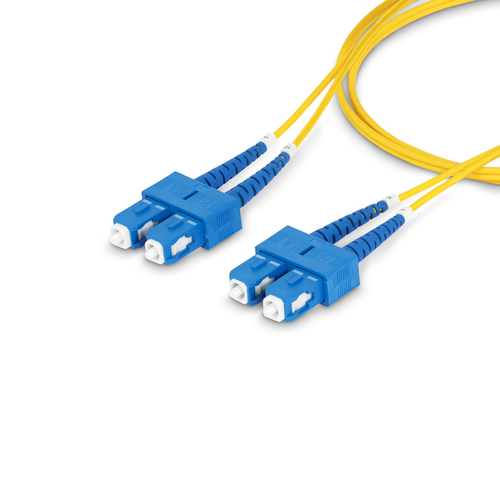

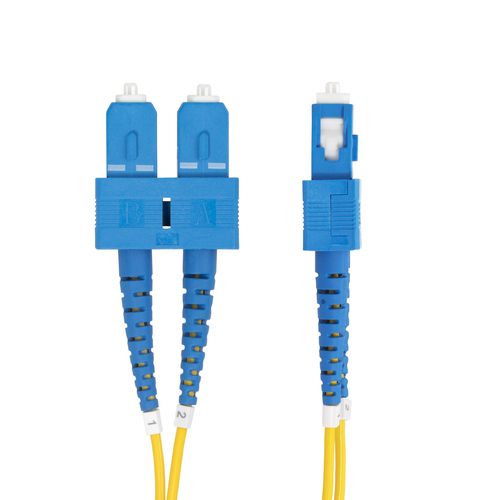

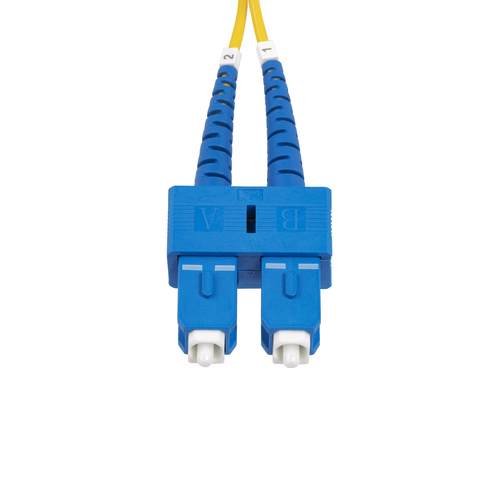

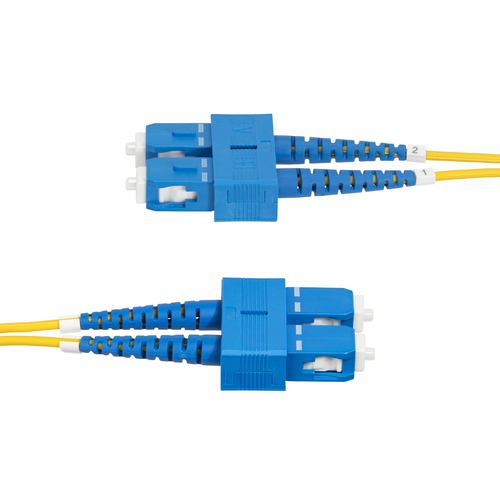

StarTech.com 5m (16.4ft) SC to SC (UPC) OS2 Single Mode Duplex Fiber Optic Cable, 9/125µm, 40G/100G Zipcord, Bend Insensitive, Low Insertion Loss - LSZH Fiber Jumper Cord

StarTech.com 5m (16.4ft) SC to SC (UPC) OS2 Single Mode Duplex Fiber Optic Cable, 9/125µm, 40G/100G Zipcord, Bend Insensitive, Low Insertion Loss - LSZH Fiber Jumper Cord

Name: StarTech.com 5m (16.4ft) SC to SC (UPC) OS2 Single Mode Duplex Fiber Optic Cable, 9/125µm, 40G/100G Zipcord, Bend Insensitive, Low Insertion Loss - LS...
Brand: StarTech.com
SKU: SMDOS2SCSC5M
Price: 21.20 EUR
Availability: InStock

Enhance the performance capabilities of CWDM applications over an OS2 fiber network

OS2 SC to SC Single Mode Duplex Fiber Optic Patch cable facilitates connectivity across 40G/100G networks. It supports Coarse Wavelength Division Multiplexing (CWDM) across an extended wavelength range of 1260-1625nm, improving channel isolation for optimal signal strength over long distances.

Compatibility

This 9/125µm Single Mode fiber cable supports 1260-1625nm laser-optimized sources and is ideal for critical connections between servers, switches, and data center equipment. It is backward compatible with OS1 networks, ensuring a reliable connection in legacy fiber environments.

Engineered for Optimal Performance

Precision-manufactured ceramic ferrules ensure accurate fiber alignment for an insertion loss below 0.3dB. Ultra Physical Contact (UPC)-polished SC to SC fiber ends greatly improve return loss characteristics over older PC polishing techniques. The Bend Insensitive Fiber Core is surrounded by a layer of low refractive index material. This material reduces the amount of light that can escape the fiber cable by reflecting the light back into the fiber. The OS2 fiber patch cord is engineered for low attenuation and performance that exceeds ITU-T G652.D/G657.A1 and IEC60703-2-50 type B1.3/B6.a1 industry standards.

LSZH Cable Jacket

Housed in a Low-Smoke Zero-Halogen (LSZH) flame-retardant jacket, the OS2 fiber cable emits low smoke and toxic fumes when exposed to extreme heat or in the event of a fire. This enables safer cable installations in areas with poor ventilation including some industrial settings, self-contained environments such as trains and aircraft, as well as residential settings where compliance with building codes must be considered.

Each OS2 fiber cable is individually tested for insertion loss performance and includes a test report, for guaranteed compatibility and 100% reliability.

The StarTech.com Advantage

2 IN STOCK

SKU: SMDOS2SCSC5M

Manufacturer:

StarTech.com

RRP Price €21.20

Specifications

Features

Cable length

5 m

Fibre optic type

OS2

Connector 1

Connector 2

Connector 1 gender

Male

Connector 2 gender

Male

Connector polish type

UPC

Cable type

SC/UPC

Product colour

Yellow

Full duplex

Yes

Core diameter

9 µm

Cladding diameter

125 µm

Fiber mode structure

Single-mode

Wavelengths supported

1260,1280,1300,1310,1383,1490,1550,1590,1600,1625 nm

Data transfer rate

100 Gbit/s

Insertion loss

0.3 dB

Return loss

55 dB

Jacket material

Low smoke zero halogen (LSZH), Polypropylene

Operational conditions

Operating temperature (T-T)

-20 - 60 °C

Storage temperature (T-T)

-20 - 60 °C

Weight & dimensions

Cable diameter

2 mm

Bending radius

1 cm

Packaging data

Package width

220 mm

Package depth

200 mm

Package height

5 mm

Package weight

55.3 g

Packaging content

Quantity per pack

1 pc(s)

Other features

Attenuation (max)

0.35 dB/km

Logistics data

Master (outer) case width

380 mm

Master (outer) case length

380 mm

Master (outer) case height

280 mm

Products per master (outer) case

170 pc(s)

Description

Manufacturer

StarTech.com

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

WH3 (5–7 Days)

N/A

Weight

0.0553 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
