Home > Computer Systems > Shuttle > SPCEL03

SPCEL03 - Computer Systems by Shuttle

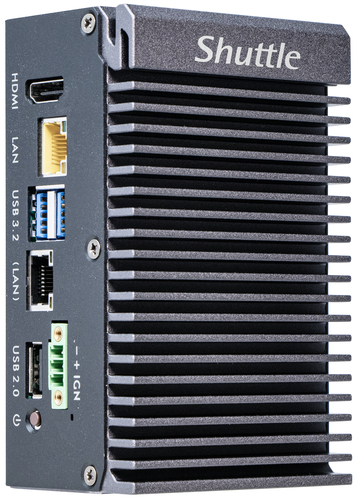

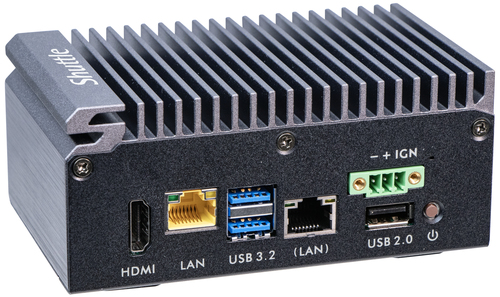

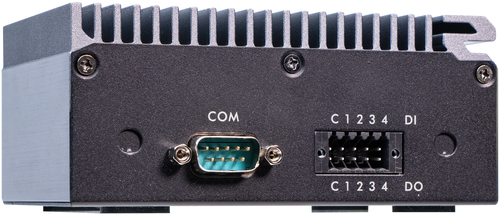

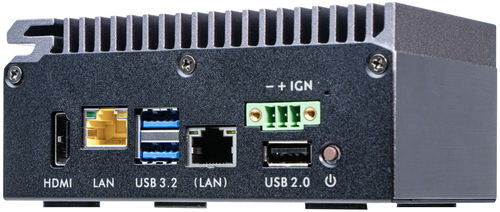

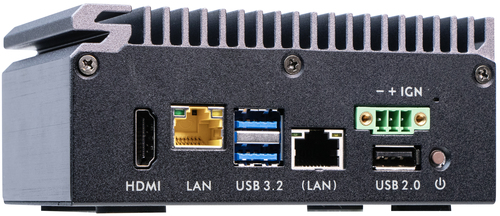

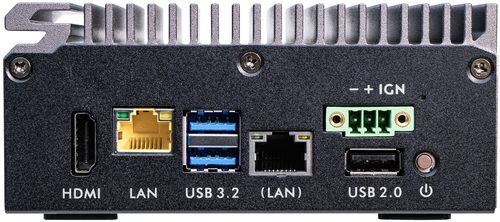

The Shuttle Edge PC SPCEL03 is a fanless IPC barebone in a robust 450 ml metal chassis and intended for DIN-Rail or VESA mounting. It is flexible in use and de-signed for maintenance-free 24/7 operation at ambient temperatures of up to 60°C. Inside there is an Intel Atom "Elkhart Lake" processor with slots for RAM module, M.2 SSD card and WLAN card. The small housing offers an amazing variety of connections, including dual LAN, COM port and Digital I/O. This product is targeted at professional applications such as edge computing (IoT gateway), automation, digital signage, control, data logging and video surveillance.

2 IN STOCK

RRP Price €409.52

  loading...
Register for Discounts

Specifications

Processor

Processor manufacturer
Intel
Processor family
Intel Atom®
Processor model
x6413E
Processor cores
4
Processor threads
4
Processor boost frequency
3 GHz
Processor frequency
1.5 GHz
Built-in processor
Yes
L2 cache
1.5 MB
Thermal Design Power (TDP)
9 W

Memory

Memory slots type
SO-DIMM
Number of memory slots
1
Maximum internal memory
32 GB
Supported memory clock speeds
3200 MHz
Supported memory types
DDR4-SDRAM
Memory channels
Single-channel
Memory voltage
1.2 V
ECC
No
Non-ECC
Yes

Storage

Supported storage drive types
SSD
Storage drive sizes supported
M.2
SSD form factor
M.2
Storage drive interface
Serial ATA

Graphics

On-board graphics card
Yes
Graphics card family
Intel
On-board graphics card model
Intel® UHD Graphics

Audio

Built-in speaker(s)
No

Network

Ethernet LAN
Yes
Wi-Fi
No
LAN controller
Intel I226-V

Ports & interfaces

USB 2.0 ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
HDMI ports quantity
1
HDMI version
2.0b
Ethernet LAN (RJ-45) ports
2
Serial ports quantity
1
DC-in jack
Yes

Design

Chassis type
0.46L sized PC
Product colour
Black
Cooling type
Passive
LED indicators
Power
Housing material
Aluminium
VESA mounting
Yes
Panel mounting interface
100 x 100 mm
Product type
Mini PC barebone

Performance

Motherboard chipset
Intel SoC
Processor socket
BGA 1493
Number of processors supported
1
BIOS type
UEFI AMI
Trusted Platform Module (TPM)
Yes
Trusted Platform Module (TPM) version
2.0

Technical details

Compliance certificates
CE, Federal Communications Commission (FCC), RoHS, VCCI

Logistics data

Harmonized System (HS) code
84733080

Software

Windows operating systems supported
Windows 10, Windows 11
Linux operating systems supported
Yes
Operating system installed
No

Sustainability

Sustainability certificates
ENERGY STAR

Power

Power supply type
External AC adapter
AC adapter output voltage
12 - 24 V

Operational conditions

Operating temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
20 - 80%

Weight & dimensions

Width
120 mm
Depth
75 mm
Height
51 mm
Weight
720 g
Package weight
1.2 kg

Packaging content

AC adapter included
No
SPCEL03 - Computer Systems by Shuttle

Description

Manufacturer

Shuttle

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

2

WH3 (5–7 Days)

N/A

Weight

0.72 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
