SPCEL12 - Computer Systems by Shuttle

Robust 0.5L Industry PC supports three displays and optional 4G

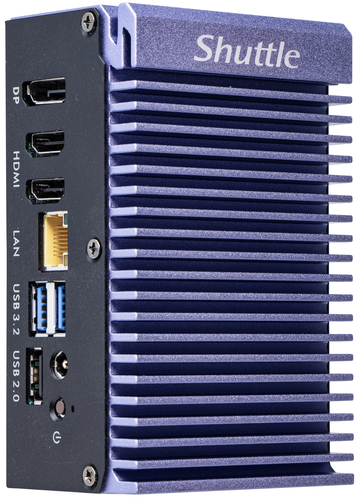

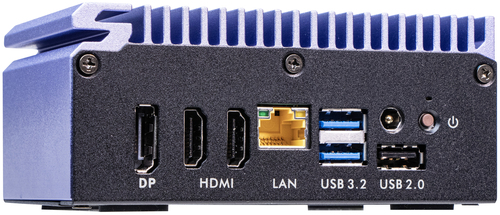

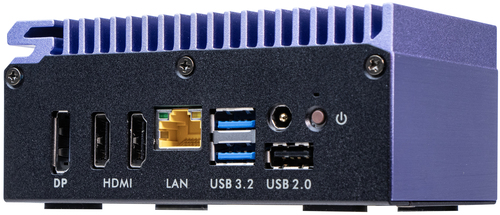

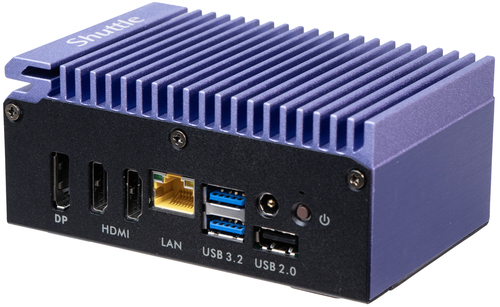

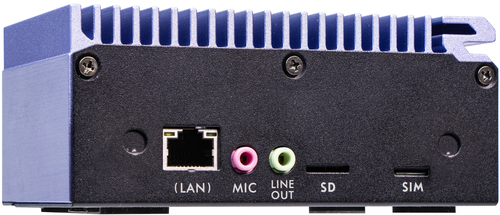

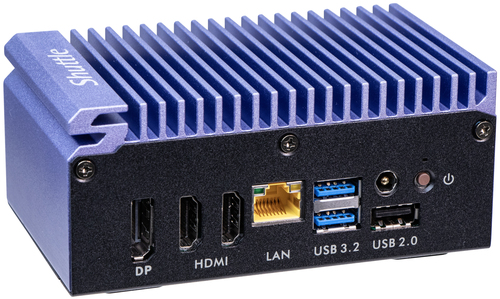

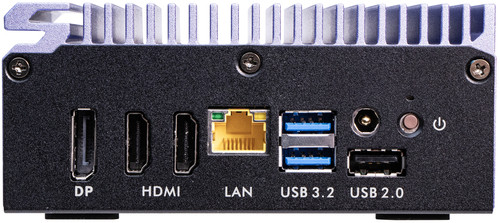

The Shuttle Edge PC SPCEL12 is a fanless Industrial PC barebone in a robust metal chassis and intended for VESA mounting. It is flexible in use and de-signed for maintenance-free 24/7 operation at ambient temperatures of up to 40°C. Inside there is an Intel Celeron "Elkhart Lake" processor with slots for RAM module, M.2 SSD card and optional WLAN or 4G card. The small housing offers an amazing variety of connections, including three graphics ports, dual LAN, Audio, and slots for Micro SD and Nano SIM. This product is targeted at professional applications such as digital signage (media player), edge computing (IoT gateway), automation, control, data logging and video surveillance.

1 IN STOCK

RRP Price €391.46

Specifications

Processor

Processor manufacturer
Intel
Processor family
Intel® Celeron®
Processor model
J6412
Processor cores
4
Processor threads
4
Processor boost frequency
2.6 GHz
Processor frequency
2 GHz
Built-in processor
Yes
L2 cache
1.5 MB
Thermal Design Power (TDP)
10 W

Memory

Memory slots type
SO-DIMM
Number of memory slots
1
Maximum internal memory
32 GB
Supported memory clock speeds
3200 MHz
Supported memory types
DDR4-SDRAM
Memory channels
Single-channel
Memory voltage
1.2 V
ECC
No
Non-ECC
Yes

Storage

Supported storage drive types
SSD
Storage drive sizes supported
M.2
SSD form factor
M.2
Storage drive interface
Serial ATA
Card reader integrated
Yes
Compatible memory cards
MicroSD (TransFlash)

Graphics

On-board graphics card
Yes
Graphics card family
Intel
On-board graphics card model
Intel® UHD Graphics
Maximum resolution
3840 x 2160 pixels

Audio

Built-in speaker(s)
No

Network

Ethernet LAN
Yes
Wi-Fi
No
LAN controller
Intel I226-V

Ports & interfaces

USB 2.0 ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
HDMI ports quantity
2
HDMI version
2.0b
DisplayPorts quantity
1
DisplayPort version
1.4
Microphone in
Yes
Headphone outputs
1
Ethernet LAN (RJ-45) ports
2
DC-in jack
Yes

Design

Chassis type
0.46L sized PC
Product colour
Black, Blue
Cooling type
Passive
LED indicators
Power
Housing material
Aluminium
VESA mounting
Yes
Panel mounting interface
100 x 100 mm
Product type
Mini PC barebone

Performance

Motherboard chipset
Intel SoC
Processor socket
BGA 1493
Number of processors supported
1
BIOS type
UEFI AMI
Trusted Platform Module (TPM)
Yes
Trusted Platform Module (TPM) version
2.0
Audio chip
Realtek ALC888-VD

Technical details

Compliance certificates
CE, Federal Communications Commission (FCC), RoHS, VCCI

Logistics data

Harmonized System (HS) code
84733080

Software

Windows operating systems supported
Windows 10, Windows 11
Linux operating systems supported
Yes
Operating system installed
No

Sustainability

Sustainability certificates
ENERGY STAR

Power

Power supply type
External AC adapter
Power supply
65 W
Number of power supply units
1
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
AC adapter output voltage
19 V
AC adapter output current
3.42 A

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
20 - 80%

Weight & dimensions

Width
120 mm
Depth
75 mm
Height
51 mm
Weight
720 g
Package weight
1.2 kg

Packaging content

Power cord included
Yes
AC adapter included
Yes
