Tripp Lite SRW10US SmartRack 10U Low-Profile Switch-Depth Wall-Mount Small Rack Enclosure, Hinged Back

The SRW10US SmartRack® 10U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 200 pounds (90.7 kilograms).

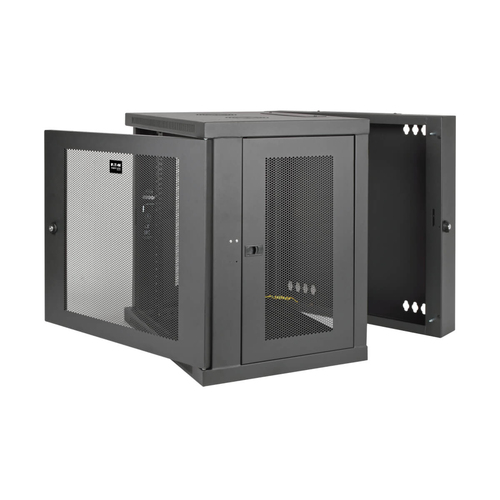

The cabinet swings away from the wall on a sturdy hinge, allowing easy back-door access to equipment and cabling during installation and maintenance. The doors and side panels lock securely to help prevent damage, tampering or theft. The front, top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible doors can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing.

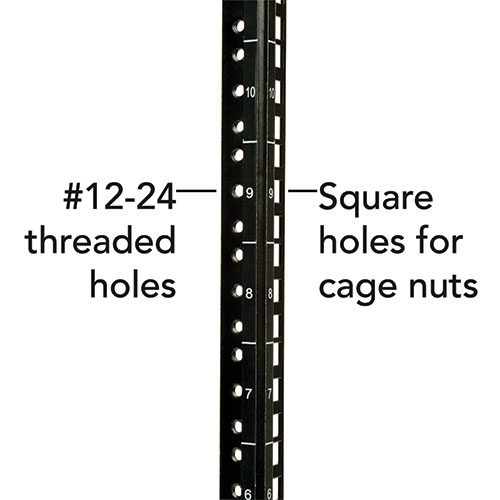

The SRW10US comes fully assembled and ready to mount to the wall, or use the optional SRCASTER rolling caster kit (sold separately) to make it a mobile rack. Square and 12-24 threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 20.5 inches deep, such as network switches and patch panels.

ON ORDER
SKU: SRW10US
Manufacturer:
Eaton Eaton

RRP Price €473.14

Specifications

Features

Rack capacity
10U
Type
Wall mounted rack
Maximum weight capacity
90.7 kg
Product colour
Black
Certification
EIA-310-E, IEC 60297-3-100, RoHS, DIN 41494, IP20, UL 60950

Weight & dimensions

Width
600.2 mm
Depth
549.4 mm
Height
547.6 mm
Weight
24.2 kg

Packaging data

Package width
670.1 mm
Package depth
612.9 mm
Package height
616 mm
Package weight
26.8 kg

Logistics data

Country of origin
China
Harmonized System (HS) code
8517.79.0000
Master (outer) case width
670.1 mm
Master (outer) case length
612.9 mm
Master (outer) case height
616 mm
Master (outer) case gross weight
26.8 kg
Products per master (outer) case
1 pc(s)
