SRW9UG - Computer Systems by Eaton

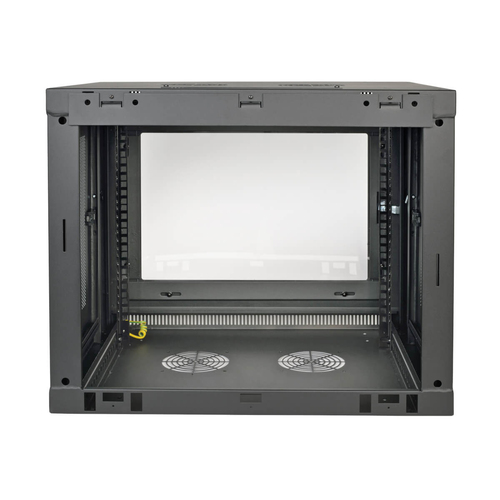

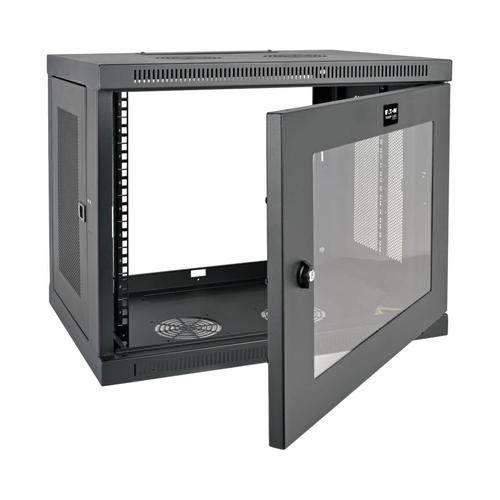

The SRW9UG SmartRack® 9U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 200 pounds (90.7 kilograms).

The front door features a shatter-resistant clear acrylic window that lets you monitor equipment without unlocking the enclosure. Not only does the window help prevent equipment tampering and reduce acoustic noise, but it also adds visual flair to your IT installation.

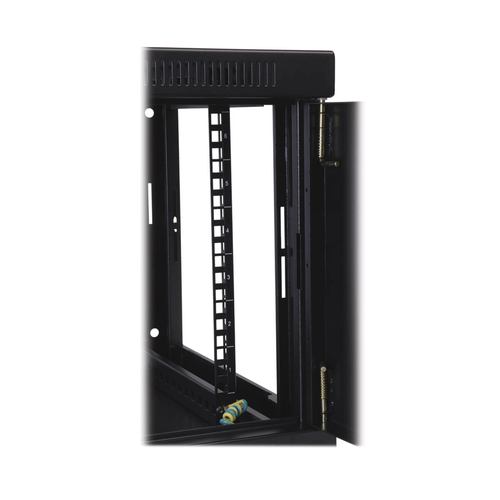

The side panels and front door lock securely to help prevent damage, tampering or theft. The top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible front door can open left or right by rotating the cabinet 180 degrees before mounting. Convenient top and bottom ports allow easy cable routing.

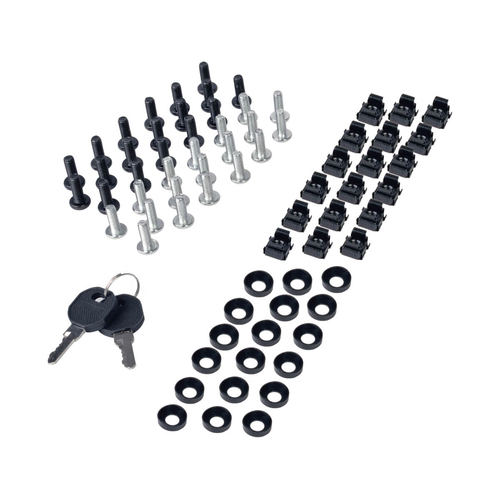

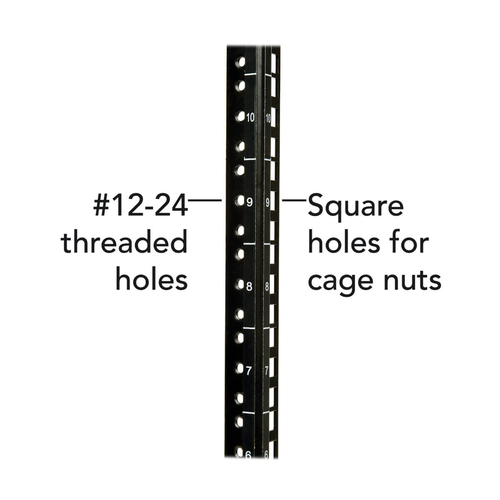

The SRW9UG comes fully assembled and ready to mount to the wall, or use the optional SRCASTER rolling caster kit (sold separately) to make it a mobile rack. Square and 12-24 threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 16.5 inches deep, such as network switches and patch panels.

ON ORDER

RRP Price €360.82

Specifications

Features

Rack capacity
9U
Type
Wall mounted rack
Maximum weight capacity
90.7 kg
Product colour
Black
Material
Acrylic, Steel
Key lock
Yes
Certification
UL/CSA 60950-1; EIA-310-E, RoHS

Weight & dimensions

Width
600.2 mm
Depth
449.3 mm
Height
501.6 mm
Weight
15.7 kg

Packaging data

Mounting kit
Yes
Manual
Yes
Package width
576.6 mm
Package depth
510.5 mm
Package height
662.9 mm
Package weight
18.1 kg

Logistics data

Country of origin
China
Harmonized System (HS) code
8517.79.0000
Master (outer) case width
576.6 mm
Master (outer) case length
510.5 mm
Master (outer) case height
662.9 mm
Master (outer) case gross weight
18.1 kg
Products per master (outer) case
1 pc(s)
