SRWO8U22 - Computer Systems by Eaton

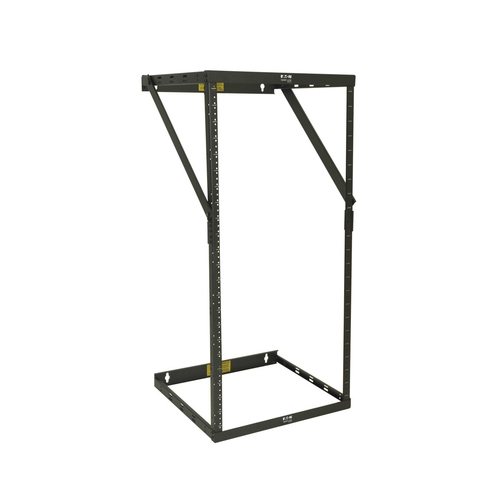

The SRWO8U22 SmartRack 8U/12U/22U Expandable Flat-Pack Low-Profile Switch-Depth Wall-Mount 2-Post Open-Frame Rack stores and organizes EIA-standard 19-inch rack equipment compatible with 2-post mounting in network wiring closets, back offices and other secure IT areas with limited floor space where a locked enclosure is not required. Mounted to the wall or resting on the floor, this rack offers fast, easy access to network components and cabling.

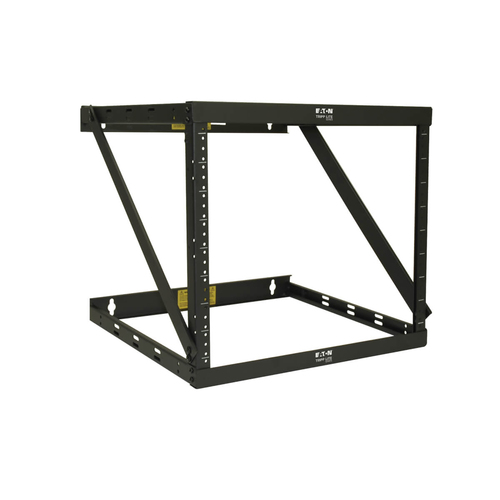

Constructed from heavy-duty steel with a durable black powder-coated finish, the rack has a maximum load capacity of 150 lbs (68 kgs). The expandable design allows you to assemble the rack in an 8U, 12U or 22U configuration to meet your current needs, while leaving rack space in reserve for future expansion.

The rack is simple to assemble and mount to the wall. Threaded 12-24 mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails accommodate equipment up to 18 inches deep, such as network switches and patch panels. Assembly and equipment-mounting hardware is included.

ON ORDER

RRP Price €181.77

Specifications

Features

Type
Wall mounted rack
Maximum weight capacity
68 kg
Product colour
Black
Certification
EIA-310-D, IEC 60297-3-100, DIN 41494, RoHS, UL 60950

Weight & dimensions

Width
518.7 mm
Depth
463.3 mm
Height
1074.7 mm
Weight
7.7 kg

Packaging data

Wall mounting kit
Yes
Manual
Yes
Package width
579.1 mm
Package depth
553.7 mm
Package height
94 mm
Package weight
8.62 kg

Logistics data

Country of origin
China
Harmonized System (HS) code
8517.79.0000
Master (outer) case width
579.1 mm
Master (outer) case length
553.7 mm
Master (outer) case height
94 mm
Master (outer) case gross weight
8.62 kg
Products per master (outer) case
1 pc(s)
