ST10GSPEXNDP2 - Cables & Adaptors by StarTech.com

AVB | PXE Boot | PCIe 3.0 x4 | Marvell AQC113CS

Install this 2-port 10GbE PCI Express (PCIe) Network Interface Card (NIC) with independent controllers into a server or computer to enable fast network speeds and enhanced network functionality by providing failover and redundancy protection to mission-critical servers/applications.

This Card supports six speeds: 10/5/2.5/1Gbps and 100/10Mbps with auto-negotiation for instant compatibility with new and legacy hardware. In addition, 10GBASE-T and NBASE-T (2.5GBASE-T/5GBASE-T) capabilities ensure compatibility with the latest network switches and access points manufactured by Cisco®; HPE®; and Aruba Networks®.

10GbE Network Speeds

This PCIe Network Card enables access to two high-bandwidth ethernet connections. As a result, it reduces network degradation when running data-intensive applications/processes such as FTPs, online storage/backup, and streaming online content. The Ethernet Network Card supports 10GBASE-T using existing Cat6 (or better) cable infrastructure.

Enhance Existing Hardware

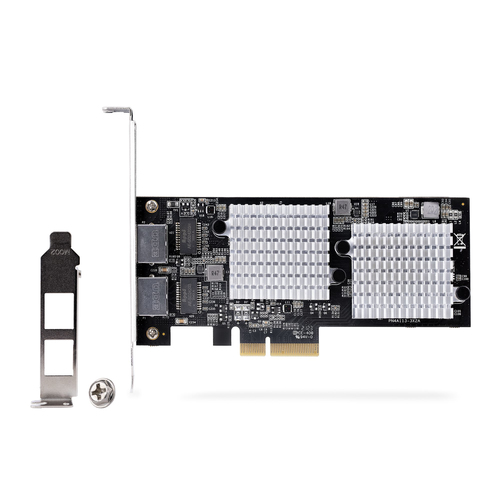

NBASE-T technology maximizes the capability of Cat5e copper infrastructure over distances of up to 100 meters. The Network Interface Card connects to a PCIe x4 3.0/4.0 (or higher) slot and comes with a full-height bracket preinstalled, and a low-profile bracket is included. This Card is compatible with Windows, Windows Server, and Linux operating systems.

Take advantage of advanced features such as load balancing in server or network equipment, bridging two different networks on one system, Audio Video Bridging (AVB), VLAN tagging (802.1Q), 16K-byte Jumbo Frames, full-duplex (FDX), UEFI Secure Boot (SB), and Preboot eXecution Environment (PXE).

The StarTech.com Advantage

4 IN STOCK

RRP Price €219.20

Specifications

Ports & interfaces

Connectivity technology
Wired
Host interface
PCI Express
Interface
Ethernet
Ethernet LAN (RJ-45) ports
2
PCI version
3.0
PCI Card form factor
Full-height (low-profile)

Network

Maximum data transfer rate
10000 Mbit/s
Networking standards
IEEE 802.3, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u
Ethernet LAN
Yes
Ethernet interface type
2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates
10,100,1000,2500,5000,10000 Mbit/s
Cabling technology
10GBase-T
Wake-on-LAN ready
Yes
Auto MDIX IEEE
Yes
Full duplex
Yes
Jumbo frames support
Yes
Jumbo frames
16000
VLAN tagging
Yes
Maximum operating distance
100 m

Design

Component for
PC/Server
Product colour
Black
Internal
Yes
Chipset
Marvell AQC113CS
LED indicators
Activity, Link, Status

System requirements

Windows operating systems supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Linux operating systems supported
Yes
Server operating systems supported
Windows Server 2012 R2, Windows Server 2016, Windows Server 2019

Operational conditions

Operating temperature (T-T)
5 - 50 °C
Storage temperature (T-T)
-10 - 60 °C
Operating relative humidity (H-H)
20 - 80%

Sustainability

Sustainability compliance
Yes

Weight & dimensions

Width
20 mm
Depth
145 mm
Height
65 mm
Weight
116 g

Packaging data

Package width
145 mm
Package depth
215 mm
Package height
35 mm
Package weight
208 g

Packaging content

Mounting brackets included
Yes
Quick installation guide
Yes

Technical details

Compliance certificates
CE

Logistics data

Master (outer) case width
440 mm
Master (outer) case length
370 mm
Master (outer) case height
315 mm
Products per master (outer) case
40 pc(s)

Accessories

License
