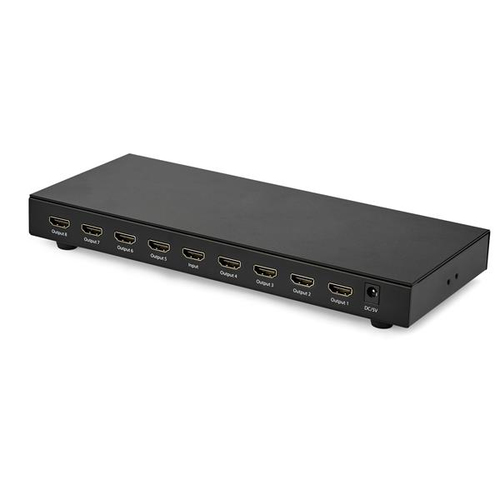

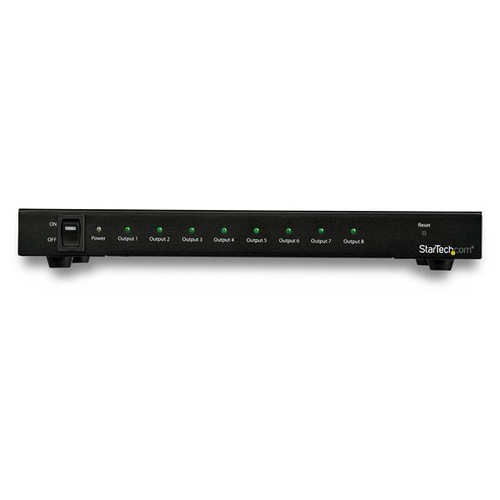

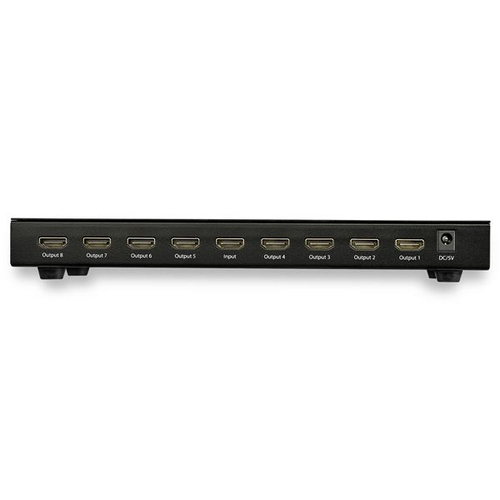

StarTech.com 8-Port 4K 60Hz HDMI Splitter

Easily distribute an HDMI 4K60 signal to up to eight monitors with this HDMI 2.0 splitterThis 4K HDMI splitter lets you connect your HDMI video source to eight HDMI displays, with support for Ultra HD resolutions and HDR (High Dynamic Range) as well as 7.1 surround sound audio.Supports true 4K at 60HzThis 8-port 4K 60Hz HDMI splitter offers full support for your HDMI 2.0 equipment, including true 4K resolution at 60Hz. For smoother video and color transitions, the splitter offers 4:4:4 chroma subsampling, meaning every pixel gets its own unique color. Support for HDMI 2.0 devices means this splitter can transmit bandwidth up to 18Gbps, making it the ideal solution for high-resolution tasks requiring the highest color detail.Note: In order to support 4K 60Hz coming through the splitter, each device in the chain must support HDCP 2.2.Widely compatibleThe splitter supports HDCP 2.2 and is backward compatible with 4K 30Hz and 1080p displays. This ensures that it will work with lower resolution displays such as TVs or projectors around your site or in your digital signage application.Easy installation and setupThe 4K HDMI splitter offers easy plug-and-play installation with no additional software or drivers required. The splitter passes EDID between your video source and the display attached to port 1, ensuring native settings such as resolution and refresh rate are configured automatically.The ST128HD20 is backed by a 2-year StarTech.com warranty.The StarTech.com Advantage

3 IN STOCK

RRP Price €228.35

Specifications

Ports & interfaces

Video port type
HDMI
Video out
8x HDMI
HDMI version
2.0
Video ports quantity
8

Features

Product colour
Black
Maximum resolution
3840 x 2160 pixels
HD type
4K Ultra HD
Maximum refresh rate
60 Hz
HDCP
Yes
Supported graphics resolutions
1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA)
Power LED
Yes
Supported video modes
720p, 1080p
LED indicators
Yes
Certification
CE, FCC, REACH

Power

AC input voltage
100 - 240 V
Input current
0.6 A
Output voltage
5 V
Output current
3 A
Power consumption (typical)
15 W

Weight & dimensions

Width
110 mm
Depth
258 mm
Height
26 mm
Weight
762 g

Packaging data

Package width
260 mm
Package depth
325 mm
Package height
70 mm
Package weight
1.2 kg

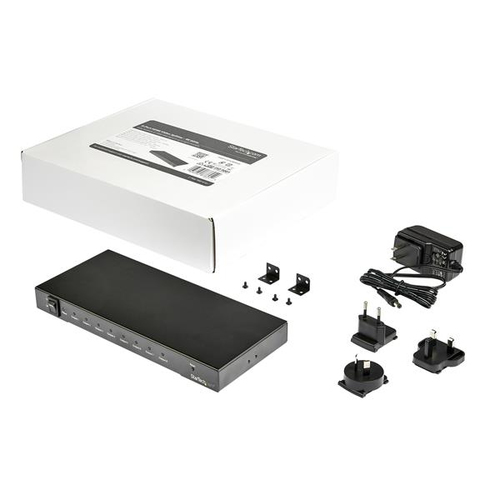

Packaging content

Included power plug types
AU, EU, NA, UK

Operational conditions

Operating temperature (T-T)
0 - 45 °C
Storage temperature (T-T)
-10 - 70 °C
Operating relative humidity (H-H)
10 - 85%

Technical details

Audio support
Yes
Supported audio channels
7.1
Compliance certificates
RoHS

Logistics data

Harmonized System (HS) code
85176990
