StarTech.com HDMI over IP Extender Kit with Video Wall Support - 1080p

StarTech.com HDMI over IP Extender Kit with Video Wall Support - 1080p

Name: StarTech.com HDMI over IP Extender Kit with Video Wall Support - 1080p
Brand: StarTech.com
SKU: ST12MHDLAN2K
Price: 782.97 EUR
Availability: OutOfStock

HDMI® Video over Cat5e or Cat6 |Multiple Sources to Multiple Displays | Mobile Control App

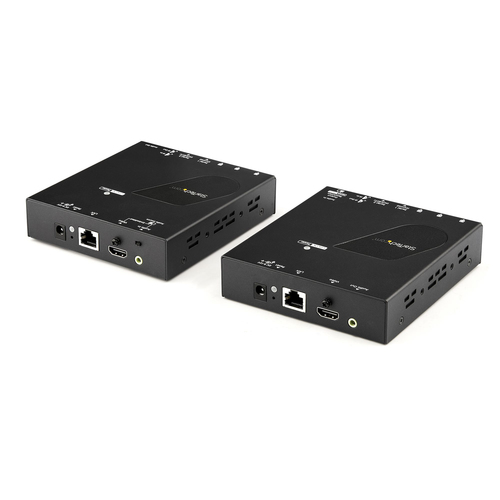

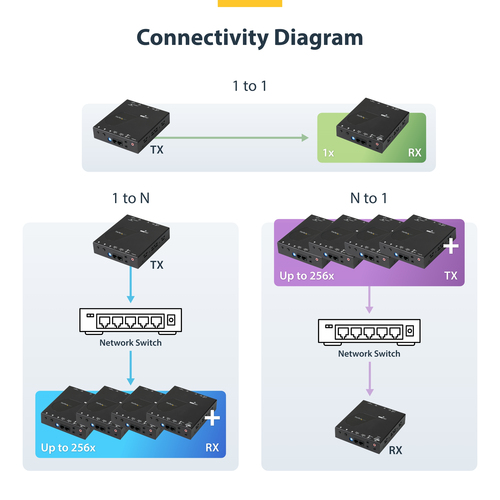

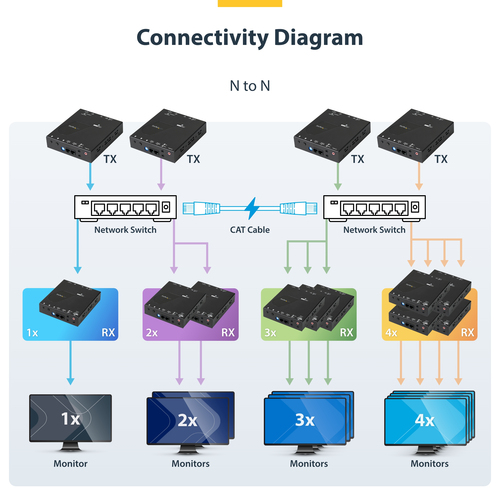

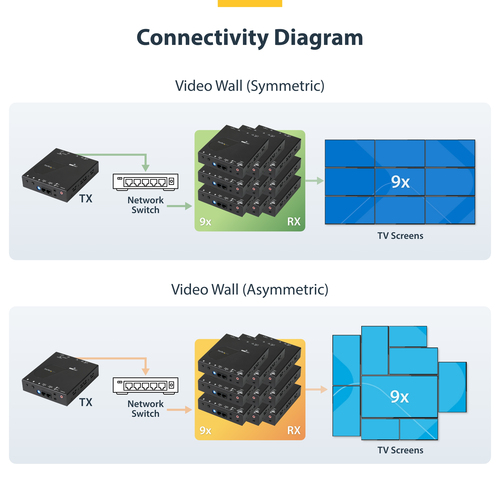

This HDMI over IP extender kit distributes video to a remote location, over your local area network (LAN) and Cat5e or Cat6 Ethernet cabling. By combining this kit with additional receivers (sold separately) and an Ethernet switch (sold separately) you can distribute an HDMI source to multiple locations and create video walls using several remote displays and receivers in the same location.

You can also use multiple transmitters on the same network to distribute different video sources or connect the transmitter directly to a receiver at up to 330 ft. (100 m), in a point-to-point setup. Remote control of serial devices is supported through RS-232 extension.

Resolutions up to 1080p, with Audio

With support for video resolutions up to 1080p (1920 x 1080 at 60Hz), the transmitter also supports digital and analog audio to the receiver and analog audio from the receiver to the transmitter.

Mobile Control Through a Free App

The kit includes an easy-to-use online app to manage your IP video distribution.

The app is available on iOS for an iPhone or iPad, and Android for a smartphone or tablet.

Download the StarTech.com Video Control software to manage your IP video distribution.

NOTE: Your router must support IGMP snooping. Please refer to your network switch or router documentation to ensure IGMP snooping is supported and enabled.

Hassle-Free Installations

The HDMI transmitter/receiver kit includes optional shelf-mounting hardware. It uses Cat5e or Cat6 cables and works with existing network infrastructures, eliminating the expense of running proprietary cables.

ST12MHDLAN2K is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

ON ORDER

RRP Price €782.97

Specifications

Features

Type

AV transmitter & receiver

Maximum resolution

1920 x 1080 pixels

Cable types supported

Cat5e, Cat6

Maximum transfer distance

100 m

Maximum refresh rate

60 Hz

Audio output channels

7.1 channels

LED indicators

Link, Network, Power, Status

Supported video modes

720p, 1080p

Supported graphics resolutions

1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 800, 1360 x 768 (WXGA), 1440 x 900, 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080)

Rack mounting

Yes

Daisy chain

Yes

Rubber feet

Yes

Product colour

Black

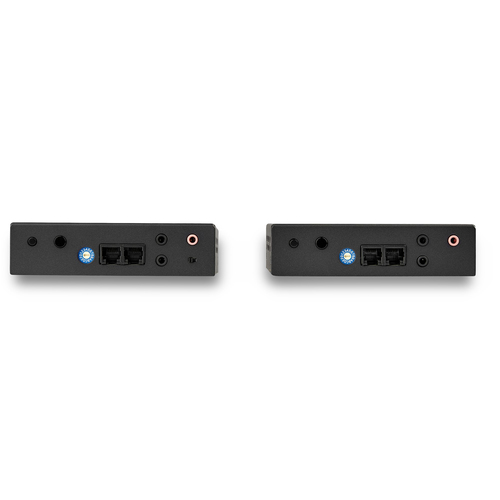

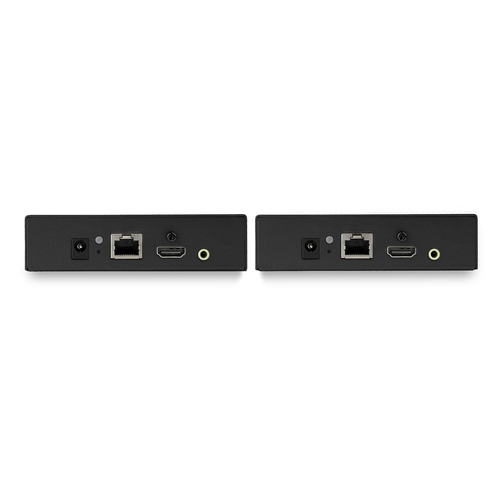

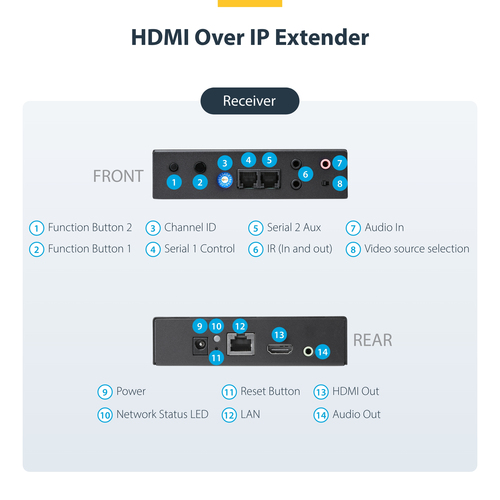

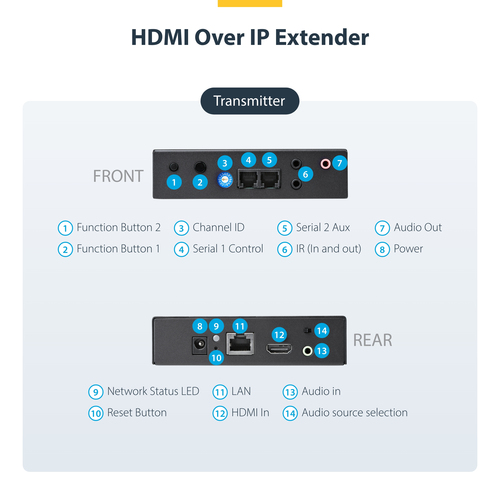

Ports & interfaces

RJ-45 input ports

RJ-45 output ports

HDMI in

Number of HDMI outputs

Audio input

2 x 3.5 mm

Audio output

2 x 3.5 mm

RJ-11 ports quantity

3.5 mm (1/8-inch) in

Yes

3.5 mm (1/8-inch) out

Yes

Power

AC input voltage

100 - 240 V

Operating voltage

12 V

Input current

0.6 A

Output current

1.5 A

Power consumption (typical)

10 W

External power adapter

Yes

Power plug type

Type M

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-10 - 60 °C

Operating relative humidity (H-H)

0 - 80%

Weight & dimensions

Width

118 mm

Depth

131 mm

Height

31 mm

Weight

1.2 kg

Packaging data

Package width

235 mm

Package depth

365 mm

Package height

75 mm

Package weight

2.3 kg

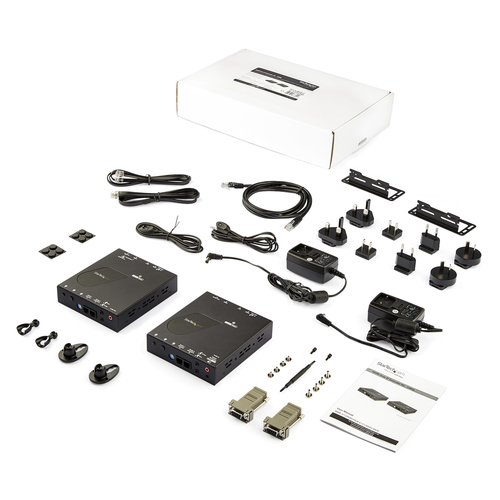

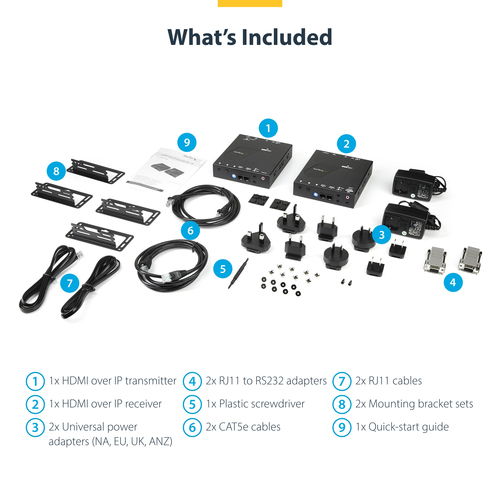

Packaging content

AC adapter included

Yes

Cables included

LAN (RJ-45), Phone (RJ-11)

Included power plug types

ANZ, EU, JP, NA, UK, US

Manual

Yes

IR blaster included

Yes

IR receiver included

Yes

Mounting kit

Yes

Technical details

Sustainability compliance

Yes

Compliance certificates

CE, RoHS

Logistics data

Master (outer) case width

385 mm

Master (outer) case length

390 mm

Master (outer) case height

270 mm

Products per master (outer) case

6 pc(s)

Description

Manufacturer

StarTech.com

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

1.2 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
