StarTech.com 16 Port 1U Rackmount USB KVM Switch with OSD

Control up to 16 USB computers from a single keyboard, mouse and monitorThe SV1631DUSBU 16 Port 1U Rack Mountable USB KVM Switch with OSD lets you control 16 USB computers from a single console (USB keyboard, USB mouse, VGA monitor).Convenient push-button and hot-key controls provide quick, reliable switching between connected computers while manual and auto-scan switching modes and an On Screen Display (OSD) offer additional control options.Designed to ensure maximum space efficiency, the USB KVM switch features a slim 1U design that fits neatly into a server equipment rack/cabinet with the included brackets, and can be cascaded with multiple KVM switches to deliver control of up to 136 computers from this single switch. Rear cable connections help to eliminate cable tangles and minimize workspace disruption.Backed by a StarTech.com 3-year warranty and free lifetime technical support.The StarTech.com Advantage- Extracting the keyboard strokes from the USB connection this KVM enables hot key support for wireless keyboard and mouse combo kits that use a single USB receiver- On Screen Display adds the ability to rename connected computers for easy identification and provides per-port password security- Supports cascading with other KVM switches for one spot control of up to 136 computers

ON ORDER

RRP Price €963.44

Specifications

Ports & interfaces

Number of computers controlled
16
Keyboard port type
USB
Mouse port type
USB
Video port type
VGA

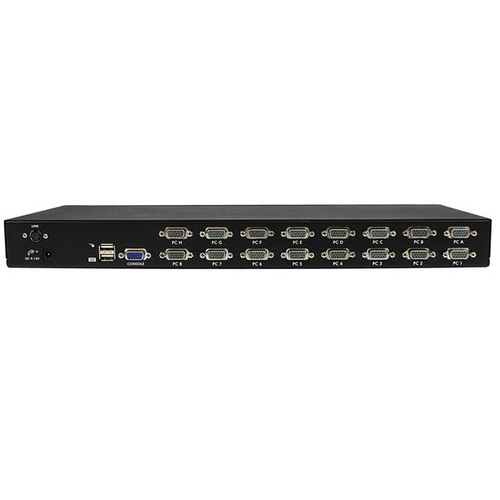

Console ports
USB A, VGA (D-Sub)
Console USB ports quantity
2
Audio connections
No
DC-in jack
Yes

Performance

Maximum resolution
1920 x 1440 pixels
Plug and Play
Yes
Daisy chain
Yes

Design

Rack mounting
Yes
Rack capacity
1U
Product colour
Black
Housing material
Steel
LED indicators
Yes

Display

Built-in display
No

Power

Input voltage
110-240 V
Input current
0.8 A
Output voltage
12 V
Output current
1.5 A
Power plug type
Type M

Operational conditions

Operating temperature (T-T)
5 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
5 - 80%

Weight & dimensions

Width
540 mm
Depth
180 mm
Height
45 mm
Weight
3.1 kg

Packaging data

Package width
89 mm
Package depth
468 mm
Package height
264 mm
Package weight
3.53 kg

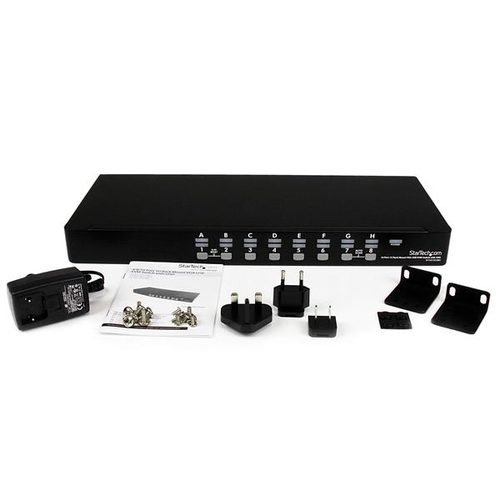

Packaging content

Manual
Yes
AC adapter included
Yes

Other features

Audio support
No
IP control
No

Logistics data

Harmonized System (HS) code
85176200
