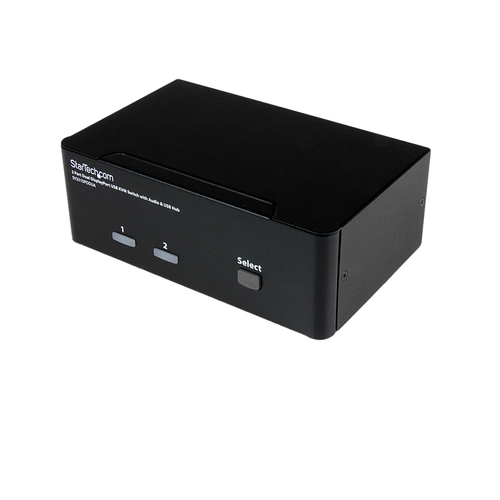

StarTech.com 2 Port Dual DisplayPort USB KVM Switch with Audio & USB 2.0 Hub

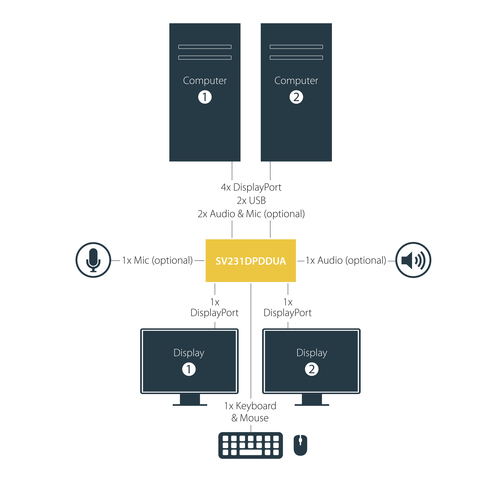

Control 2 high-resolution dual DisplayPort computers with a single console

The SV231DPDDUA 2-Port USB Dual DisplayPort KVM Switch with Audio and USB 2.0 Hub combines next generation digital display standards with seamless KVM control, allowing you to switch between 2 dual head or twin DisplayPort systems. Also ideal for systems with a single DisplayPort output, and a second video source such as DVI or HDMI, using a low cost accessory adapter.

Delivering multi-computer control for high-res multimedia applications, the dual view KVM supports resolutions of 2560x1600 (@60 Hz) with DisplayPort HD audio, as well as 2-channel analog stereo audio and microphone input.

Suitable for high quality static imaging, such as medical applications (MRI, X-ray, etc.), a maximum resolution of 3840x2400 is supported at reduced refresh rates.

This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.

The StarTech.com Advantage

- Versatile audio support via digital DisplayPort HD multi-channel audio or 3.5mm stereo analog audio
- Integrated USB 2.0 hub provides peripheral sharing to eliminate the expense of duplicate devices (printers, scanners, etc.)
- Versatile KVM solution works well with Mini-DisplayPort, DisplayPort to DVI or HDMI adapters; perfect for Dual DisplayPort or DisplayPort + DVI or HDMI video output, including Macbook connectivity

15 IN STOCK

RRP Price €500.60

Specifications

Ports & interfaces

Number of computers controlled
2
Keyboard port type
USB
Mouse port type
USB
Video port type
DisplayPort
DisplayPorts quantity
6

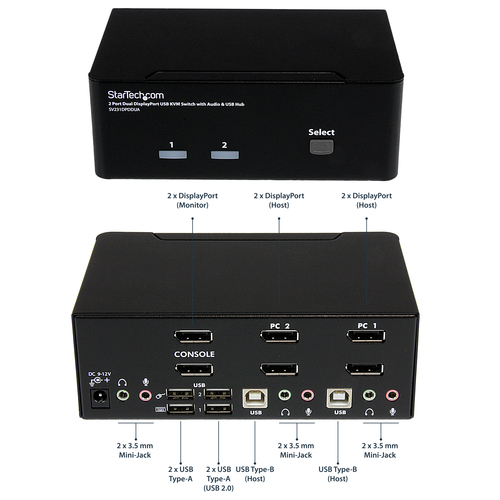

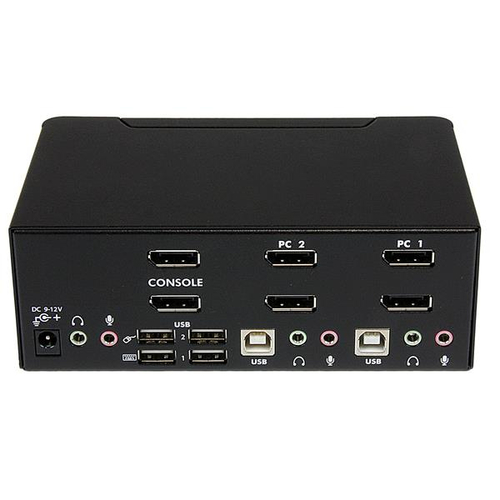

Console ports
3.5mm headphone, 3.5mm mic, DisplayPort, USB A
Console USB ports quantity
2
USB hub
Yes
USB connector type
USB Type-A
Audio connections
Yes
Headphone outputs
3
Number of microphone inputs
3
DC-in jack
Yes

Network

Ethernet LAN
No

Performance

HD type
4K Ultra HD
Maximum resolution
3840 x 2400 pixels
DDC2B support
Yes
Hot-Plug support
Yes
Daisy chain
No
Number of users
1 user(s)
Audio channels
7.1

Design

Rack mounting
No
Product colour
Black
Housing material
Steel
LED indicators
Yes
Push button
Yes
Hot keys
Yes
Certification
CE, FCC, REACH, TAA

Display

Built-in display
No
On Screen Display (OSD)
No

Power

Input voltage
110 - 240 V
Input current
0.8 A
Output voltage
12 V
Output current
1.5 A
Power consumption (typical)
18 W
External power adapter
Yes
Power plug type
Type M
Compatible power plug types
AU, EU, UK, US

Sustainability

Compliance certificates
RoHS

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
20 - 60 °C
Operating relative humidity (H-H)
0 - 80%

Weight & dimensions

Width
161 mm
Depth
100 mm
Height
57.5 mm
Weight
734 g

Packaging data

Package width
249 mm
Package depth
187 mm
Package height
100 mm
Package weight
1.19 kg

Packaging content

Manual
Yes

Other features

Audio support
Yes
IP control
No

Logistics data

Harmonized System (HS) code
85176200
