StarTech.com SV231DPUCA KVM switch Black

StarTech.com SV231DPUCA KVM switch Black

Name: StarTech.com SV231DPUCA KVM switch Black
Brand: StarTech.com
SKU: SV231DPUCA
Price: 388.11 EUR
Availability: InStock

DisplayPort 1.2 KVM | 6x USB Hub Ports | Digital & Analog Audio | TAA Compliant

This 2-port KVM switch combines 4K 60Hz capabilities with control of two USB-C DP Alt-mode, Thunderbolt 3, or Thunderbolt 4 computers.

4K 60Hz Resolution

This 2-Port USB-C KVM switches between two USB-C enabled computers viewed over a single DisplayPort monitor. It supports up to 4K 60Hz (4:4:4) resolutions with 6x USB-A 480Mbps hub ports. This KVM is ideal for applications such as CAD/CAM, video editing, and content creation. Support for High Dynamic Range (HDR) offers increased contrast, brightness, colors, and greater luminosity.

Analog and Digital Audio

This USB-C DisplayPort KVM Switch supports 2-channel analog and digital audio output, as well as microphone input, through 3.5mm or USB ports. This provides the user with centralized audio control through the KVM switch. Audio profiles are selectable with hot key commands.

Intuitive Control

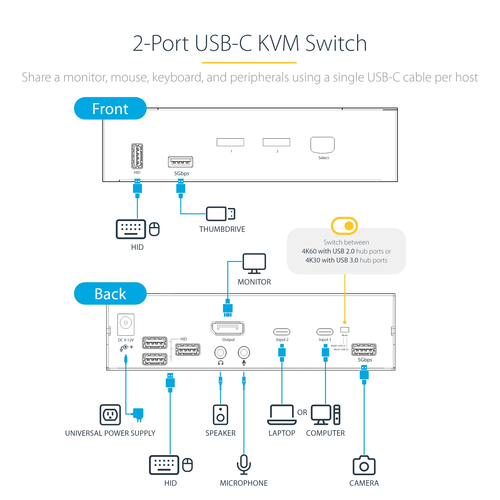

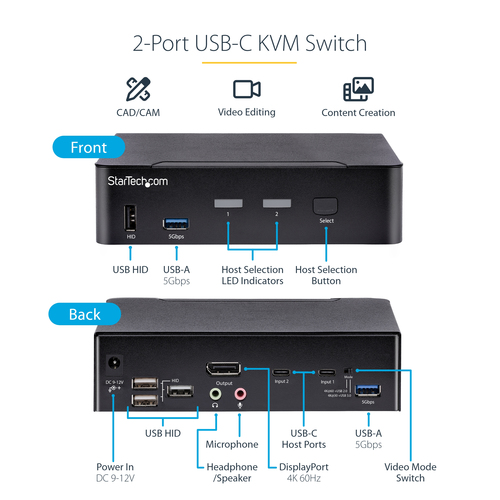

The front panel push button and hot key functions make it easy to switch between computers. Install host computers using a single USB-C cable to connect to the KVM. USB HID and USB Hub ports on the front and rear ensure convenient setup configuration and access to USB peripherals. The metal housing of the KVM Switch is suitable for many installation environments.

This product is backed for 2-years by StarTech.com, including free 24/5 multi-lingual technical assistance.

The StarTech.com Advantage

5 IN STOCK

SKU: SV231DPUCA

Manufacturer:

StarTech.com

RRP Price €388.11

Specifications

Ports & interfaces

Number of computers controlled

Keyboard port type

USB

Mouse port type

USB

Video port type

DisplayPort

DisplayPort version

1.2

Console ports

3.5mm headphone, 3.5mm mic, DisplayPort

Console USB ports quantity

Console DisplayPorts ports quantity

USB hub

Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity

Headphone outputs

Number of microphone inputs

Performance

HD type

4K Ultra HD

Maximum resolution

5120 x 1440 pixels

Video bandwidth

60 Hz

Data transfer rate (max)

5 Gbit/s

Scan interval

3,8,15,30 s

HDCP

Yes

Chipset

Parade - PS8461, Etron - EJ899I

Audio channels

2.0

Number of displays supported

Design

Rack mounting

Product colour

Black

LED indicators

Yes

Push button

Yes

Hot keys

Yes

Mean time between failures (MTBF)

158000 h

Display

Built-in display

Power

Power source

Input voltage

100 - 240 V

Input current

1.2 A

Output voltage

12 V

Output current

3 A

Power plug type

Type M

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-10 - 60 °C

Operating relative humidity (H-H)

0 - 80%

Weight & dimensions

Width

140 mm

Depth

160 mm

Height

40 mm

Weight

600 g

Packaging data

Package width

184 mm

Package depth

238 mm

Package height

89 mm

Package weight

1 kg

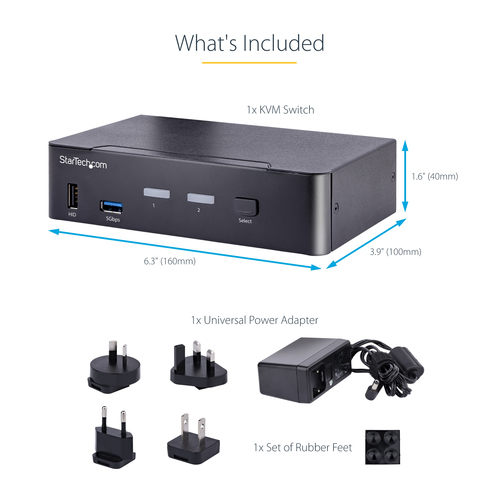

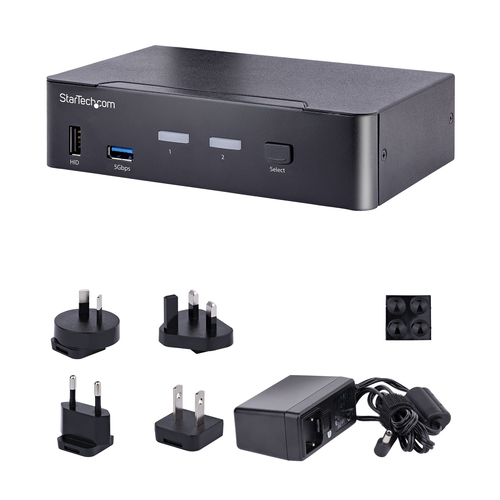

Packaging content

Quick installation guide

Yes

AC adapter included

Yes

Rubber feet

Yes

Other features

IP control

Logistics data

Master (outer) case width

300 mm

Master (outer) case length

397 mm

Master (outer) case height

257 mm

Products per master (outer) case

6 pc(s)

Description

Manufacturer

StarTech.com

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

WH3 (5–7 Days)

N/A

Weight

0.6 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
