StarTech.com 2 Port DVI USB KVM Switch with Audio and USB 2.0 Hub

Share keyboard, mouse, speakers and a DVI display between two multimedia computers

The SV231DVIUA 2-Port DVI USB KVM Switch lets you control two USB-enabled, DVI-capable computers from a single monitor and peripheral set (keyboard, mouse and speakers), and two additional USB peripherals connected through the built-in USB hub ports.

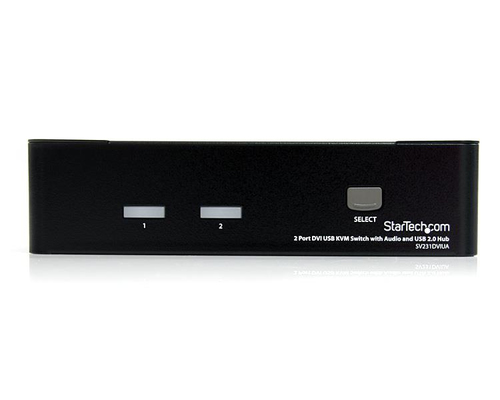

Featuring convenient hot-key and front panel push-button switching, and high-resolution support (up to 1920x1200), the DVI KVM Switch is perfect for controlling high-performance systems. Ideal for multimedia applications, this KVM switch supports audio and microphone switching either independently, or simultaneously when switching between computers for KVM control.

The DVI USB KVM also features an integrated USB 2.0 hub, which lets you share USB peripherals point as if they were connected directly to the slave computers.

This product is TAA compliant and is backed by a Startech.com 3 year warranty with lifetine technical support.

The StarTech.com Advantage

- Integrated USB 2.0 hub and Mic/Audio ports allow the user to have full multimedia control of two computers and share USB peripherals eliminating the expense of duplicate devices
- High resolution support (1920x1200) offers crystal clear video clarity even on large displays
- Absolutely no software or drivers required, providing a completely OS independent KVM solution

5 IN STOCK

RRP Price €214.98

Specifications

Ports & interfaces

Number of computers controlled
2
Keyboard port type
USB
Mouse port type
USB
Video port type
DVI-I

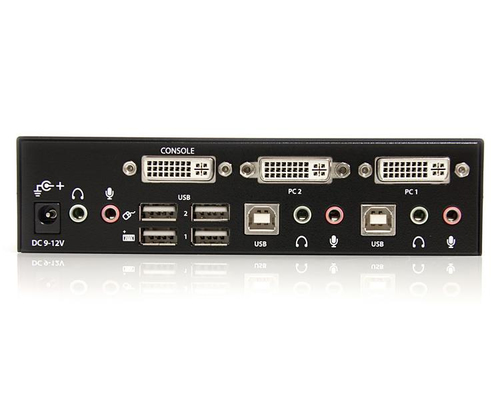

Console ports
3.5mm headphone, 3.5mm mic, DVI-I, USB A
Console USB ports quantity
4
Audio connections
Yes
Headphone outputs
3
Number of microphone inputs
3
DC-in jack
Yes

Performance

HD type
Full HD
Maximum resolution
1920 x 1200 pixels
Daisy chain
No
Number of users
1 user(s)

Design

Rack mounting
No
Product colour
Black
LED indicators
Yes
Mean time between failures (MTBF)
126397 h

Display

Built-in display
No

Power

Input voltage
100 - 240 V
Input current
0.8 A
Output voltage
12 V
Output current
1.5 A
Power consumption (typical)
18 W
Power plug type
Type M
Compatible power plug types
EU, UK, US

Sustainability

Compliance certificates
CE, RoHS

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%

Weight & dimensions

Width
199 mm
Depth
160 mm
Height
40 mm
Weight
650 g

Packaging data

Package width
242 mm
Package depth
187 mm
Package height
91 mm
Package weight
1.1 kg

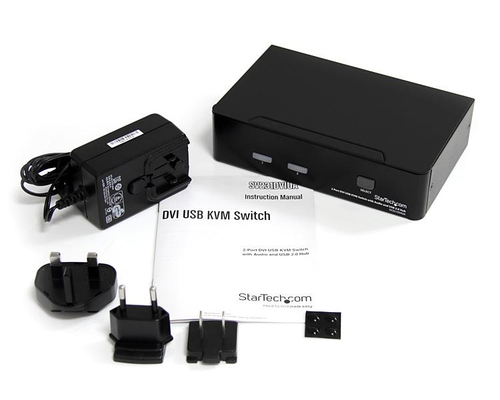

Packaging content

Manual
Yes
Rubber feet
Yes

Logistics data

Harmonized System (HS) code
85176200
Master (outer) case width
314 mm
Master (outer) case length
399 mm
Master (outer) case height
260 mm
Products per master (outer) case
6 pc(s)
