StarTech.com 2 Port USB HDMI KVM Switch with Audio and USB 2.0 Hub

StarTech.com 2 Port USB HDMI KVM Switch with Audio and USB 2.0 Hub

Name: StarTech.com 2 Port USB HDMI KVM Switch with Audio and USB 2.0 Hub
Brand: StarTech.com
SKU: SV231HDMIUA
Price: 269.34 EUR
Availability: InStock

Share a keyboard, mouse and HDMI® monitor between 2 multimedia computers

The SV231HDMIUA 2-port USB HDMI® KVM Switch lets you control two USB-enabled multimedia computers or devices with HDMI video interfaces, using a single peripheral set/console (USB keyboard, mouse, monitor, speakers and microphone).

A highly versatile KVM solution, the USB HDMI KVM Switch features an integrated 2-port USB 2.0 hub that lets selected computers access shared high speed USB devices, eliminating the cost of duplicate USB peripheral purchases.

Ensuring high quality video capability, the HDMI KVM switch supports HD resolutions of up to 1920 x 1200. Offering genuine digital signal transmission over the cable, this switch can be used to share one HD panel between multiple HDMI sources such as Blu-Ray players, Video Game consoles and HD media centers.

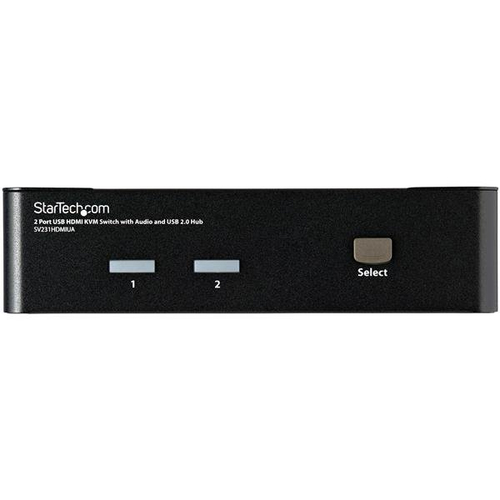

The switch also supports audio and microphone switching functions and allows you to select connected computers, USB device hub ports and audio/mic channels either simultaneously or independently using either front-panel push-buttons or keyboard hotkeys.

This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.

The StarTech.com Advantage

1 IN STOCK

RRP Price €269.34

Specifications

Ports & interfaces

Number of computers controlled

Keyboard port type

USB

Mouse port type

USB

Video port type

HDMI

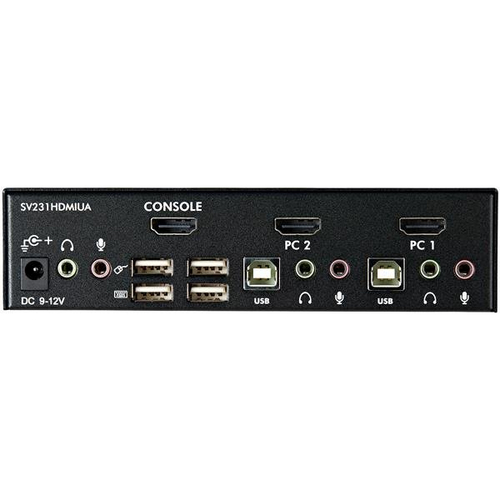

Console ports

3.5mm headphone, 3.5mm mic, HDMI, USB A

Console USB ports quantity

Headphone outputs

Number of microphone inputs

Performance

HD type

Full HD

Maximum resolution

1920 x 1200 pixels

Daisy chain

Design

Rack mounting

Product colour

Black

Mean time between failures (MTBF)

126813 h

Certification

R0HS

Display

On Screen Display (OSD)

Power

Input voltage

100 - 240, 12 V

Input current

0.8 A

Output current

1.5 A

Power consumption (typical)

18 W

Power plug type

Type M

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

0 - 80%

Weight & dimensions

Width

125 mm

Depth

70 mm

Height

40 mm

Weight

634 g

Packaging data

Package width

188 mm

Package depth

250 mm

Package height

100 mm

Package weight

1.1 kg

Packaging content

Manual

Yes

AC adapter included

Yes

Rubber feet

Yes

Other features

Connectivity technology

Wired

I/O ports

1x HDMI (F) 4x USB A (F) 6x 3.5mm (F) 2x USB B (F) 2x mini-HDMI (F)

Dimensions (WxDxH)

124.8 x 70 x 40 mm

Ports quantity

Power requirements

AC 110 - 240 V

Logistics data

Harmonized System (HS) code

85176200

Description

Manufacturer

StarTech.com

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

WH3 (5–7 Days)

N/A

Weight

0.634 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download

Accessories

No Accessories Found!

License

No License Found!

Related Products

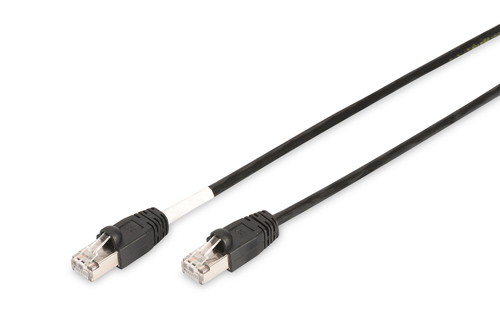

Digitus CAT 6 S/FTP outdoor patch cord, PE Cables & Adaptors

Best performance and link quality for your network with UV resistance.- UV resistant due to LDPE sheath- Boots with kink protection, strain reliefs and latch protection- PoE+ readyThe DIGITUS® Category 6 Class E patch cords are manufactured and tested to the ISO/IEC 11801 and DIN EN 50173 Category 6 specifications. They will guarantee the installed cabling system is compliant with the ISO & EN channel specification requirements and will provide optimum performance levels of DIGITUS® Category 6 cabling. The performance is tested up to 250 MHz inclusive performance characteristics such as near end cross talk (“NEXT”). DIGITUS® patch cords are designed and produced to fulfill the highest requirements of various application areas in full volume. Each cable is fitted with a molded boot which comes with kink protection and strain relief. Furthermore the boot is equipped with a latch protection that prevents the latching lever against breaking. With its UV resistant PE sheath, this outdoor patch cord will ensure a secure installation in areas witha lot of temperature fluctuation and sun expose.

€6.40

Digitus CAT 6A U/UTP patch cord Cables & Adaptors

Future-oriented standards and high-end quality for your network.- With LSZH (Low Smoke Zero Halogen) sheath for best fire behaviour and low smoke emissions.- Transparent yellow colored plug for easy identification of Category 6A (500 MHz)- Conductor: Copper (Cu)- PoE+ readyThe DIGITUS® Category 6A Class EA patch cords are manufactured and tested to the ISO/IEC 11801 and DIN EN 50173 Category 6 A specifications. They will guarantee the installed cabling system is compliant with the ISO & EN channel specification requirements and will provide optimum performance levels of DIGITUS® Category 6A cabling. The performance is tested up to 500 MHz inclusive performance characteristics such as near end cross talk (“NEXT”). DIGITUS® patch cords are designed and produced to fulfill the highest requirements of various application areas in full volume. Each cable is fitted with a molded boot which comes with kink protection and strain relief. Furthermore the boot is equipped with a latch protection that prevents the latching lever against breaking. You can easily identify the Category 6A, because of the transparent yellow colored connector.

€1.23

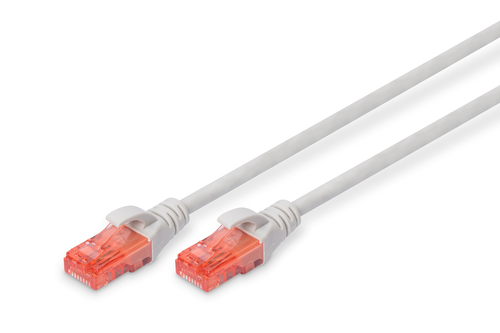

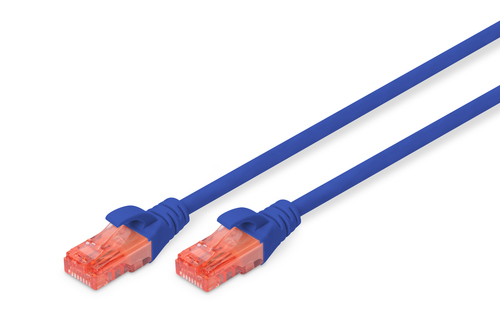

Digitus CAT 6 U/UTP patch cord Cables & Adaptors

Future-oriented standards and high-end quality for your network.- Transparent red colored plug for easy identification of Category 6 (250 MHz)The DIGITUS® Category 6 Class E patch cords are manufactured and tested to the ISO/IEC 11801 and DIN EN 50173 Category 6 specifications. They will guarantee the installed cabling system is compliant with the ISO & EN channel specification requirements and will provide optimum performance levels of DIGITUS® Category 6 cabling. The performance is tested up to 250 MHz inclusive performance characteristics such as near end cross talk (“NEXT”). DIGITUS® patch cords are designed and produced to fulfill the highest requirements of various application areas in full volume. Each cable is fitted with a molded boot which comes with kink protection and strain relief. Furthermore the boot is equipped with a latch protection that prevents the latching lever against breaking. You can easily identify the Category 6, because of the transparent red colored connector.

€1.19

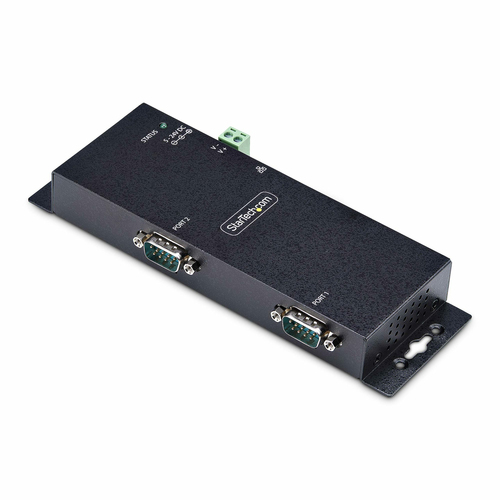

StarTech.com 2-Port Serial to Ethernet Adapter, IP Serial Device Server For Remote RS232 Devices, Wall/DIN Rail Mountable, Metal Housing, RJ45 LAN to DB9 Serial Converter Cables & Adaptors
