StarTech.com 2 Port Triple Monitor DVI USB KVM Switch with Audio & USB 2.0 Hub

The SV231TDVIUA 2-Port Triple Monitor DVI USB KVM Switch allows 2 PCs (each with 3 DVI video outputs) to share monitors, 1 microphone and set of speakers, 1 keyboard and 1 mouse, as well as an additional USB 2.0 peripheral such as an external hard drive, thumb drive, printer, or webcam.

The Triple DVI KVM switch enables you to switch back and forth between 2 multi DVI PCs at the touch of a button, while maintaining professional-level video quality on all monitors at resolutions up to 1920x1200. The triple monitor DVI switch also features an integrated USB hub port which allows USB 2.0 peripherals to be shared between attached systems, eliminating duplicate peripheral costs and offering the convenience of sharing stored data between PCs.

The SV231TDVIUA 2-Port Triple Head DVI KVM Switch is backed by a StarTech.com 3-year warranty and free lifetime technical support.

PLEASE NOTE: While the DVI connector on this KVM is DVI-I, the KVM only supports single-link DVI-D (digital only) video sources. It is recommended wherever possible to use DVI-D cables across all PC to KVM and KVM to console connections.

The StarTech.com Advantage
- By enabling control of two triple display computer systems using a single set of peripherals, the switch helps saves cost and work space
- With support for high definition resolutions (1920x1200) on each of the 3 connected monitors, the triple head KVM switch offers maximum screen real estate for optimized productivity
- Integrated USB 2.0 hub and mic/audio ports enable you to have full multimedia control of two computers, while sharing USB peripherals

ON ORDER

RRP Price €618.14

Specifications

Ports & interfaces

Number of computers controlled
2
Keyboard port type
USB
Mouse port type
USB
Video port type
DVI-I
DVI-I ports quantity
6
Console ports
DVI-I, 3.5mm headphone, 3.5mm mic, USB A
Console USB ports quantity
4
USB 2.0 ports quantity
2
Audio connections
Yes
Headphone outputs
2
Number of microphone inputs
2
DC-in jack
Yes

Performance

Maximum resolution
1920 x 1200 pixels
Maximum digital resolution
1920 x 1200 pixels
Scan interval
3,8,15,30 s
HDCP
Yes
Plug and Play
Yes
Daisy chain
No
Number of users
1 user(s)

Design

Rack mounting
No
Product colour
Black
LED indicators
Activity
Hot keys
Yes
Mean time between failures (MTBF)
62000 h
Certification
CE, FCC

Display

Built-in display
No
On Screen Display (OSD)
No

Power

Input voltage
110-240 V
Input current
0.8 A
Output voltage
12 V
Output current
1.5 A
Power consumption (typical)
18 W
External power adapter
Yes
Power plug type
Type M

Sustainability

Compliance certificates
RoHS

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-10 - 60 °C
Operating relative humidity (H-H)
0 - 80%

Weight & dimensions

Width
159 mm
Depth
100 mm
Height
74 mm
Weight
900 g

Packaging data

Package width
185 mm
Package depth
240 mm
Package height
95 mm
Package weight
1.41 kg

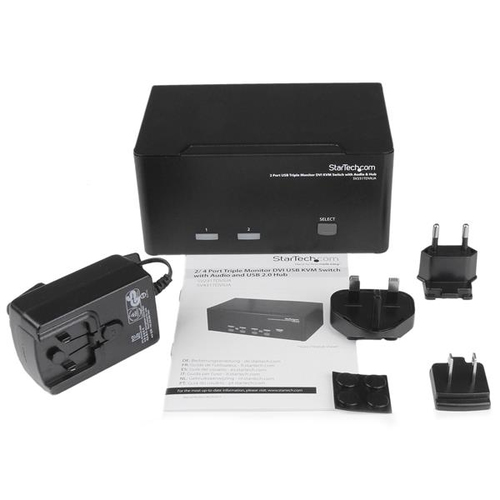

Packaging content

Manual
Yes
AC adapter included
Yes
Rubber feet
Yes

Other features

Audio support
Yes
IP control
No

Logistics data

Harmonized System (HS) code
85176200
