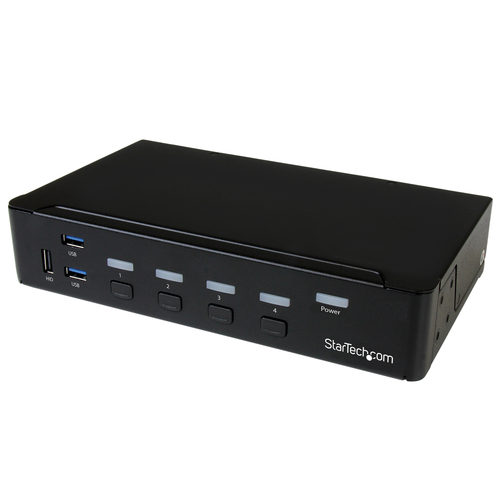

StarTech.com 4-Port DisplayPort KVM Switch - USB 3.0 - 4K 30Hz

Control four DP computers using a single console with a built-in USB 3.0 hub for sharing additional peripheral devices

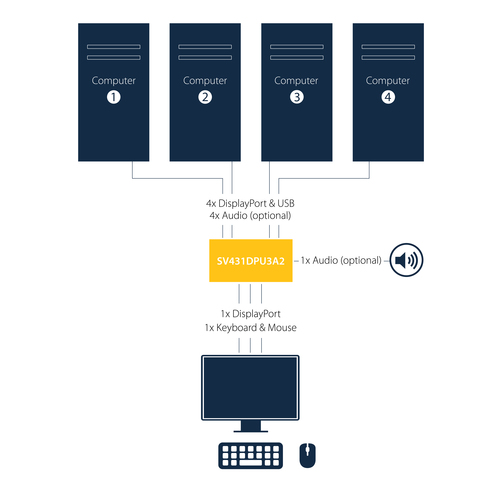

This 4-Port USB 3.0 DisplayPort KVM switch lets you control four DisplayPort (DP) computers with a single monitor, keyboard and mouse. The KVM also features 3.5 mm audio and a built-in 3-port USB 3.0 hub.

Convenient and cost-effective USB 3.0 peripheral sharing

This KVM switch offers a built-in 3-port USB 3.0 hub that's separate from your HID keyboard and mouse, so you can share USB peripheral devices between each connected computer and avoid the expense of separate equipment. The USB 3.0 hub automatically switches your connected USB devices to the selected computer, saving you the hassle of disconnecting and reconnecting your peripherals.

With support for USB 3.0, you can achieve data transfer rates up to 5Gbps, to ensure flawless performance for your USB peripherals - great for quickly transferring data to external USB 3.0 drives.

Astonishing picture quality

Offering support for resolutions up to Ultra HD 4K at 30 Hz, this 4-port DisplayPort KVM switch has the ability to drive large DP displays with ease, making it ideal for graphical applications that require high-resolution video support.

Complete multimedia control

The KVM switch features auxiliary 3.5 mm audio ports that enable you to share independent analog audio, from each of your connected computers, with your desktop speaker set. Independent audio, along with 4K DP video, gives you full multimedia control between different computers, making this KVM perfect for creative professional applications such as video and sound design or editing.

The SV431DPU3A2 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Rackmount your KVM switch

If you’d like to mount this KVM switch to your server rack, StarTech.com offers a 1U Rackmount Bracket (sold separately) that turns this KVM into a rackmountable KVM.

The StarTech.com Advantage

- Easily share peripheral devices using the built-in USB 3.0 hub
- Astonishing picture quality with support for Ultra HD 4K resolutions
- Full multimedia control with separate 3.5 mm auxiliary support

3 IN STOCK

RRP Price €601.32

Specifications

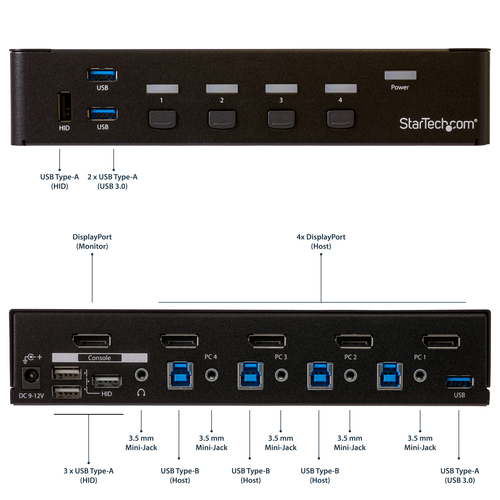

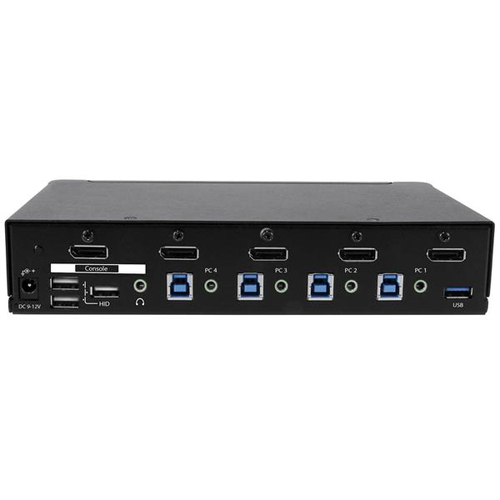

Ports & interfaces

Number of computers controlled
4
Keyboard port type
USB
Mouse port type
USB
Video port type
DisplayPort
Console ports
3.5mm headphone, DisplayPort, USB A
Console USB ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity
3
USB connector type
USB Type-A
USB version
3.2 Gen 1 (3.1 Gen 1)
Audio connections
Yes
Headphone outputs
4
DC-in jack
Yes

Network

Ethernet LAN
No

Performance

HD type
4K Ultra HD
Maximum resolution
3840 x 2160 pixels
HDCP
Yes
Plug and Play
Yes
Daisy chain
No
Maximum operating distance
10 m
Audio channels
2.0

Design

Rack mounting
Yes
Product colour
Black
LED indicators
Link, Power
Hot keys
Yes
Certification
CE, FCC, UL, PSE

Display

Built-in display
No

Power

Input voltage
100-240 V
Output voltage
12 V
Output current
1.5 A
Power consumption (typical)
18 W
Power plug type
Type M
Compatible power plug types
AU, EU, UK, US

Sustainability

Compliance certificates
RoHS

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-10 - 60 °C
Operating relative humidity (H-H)
0 - 80%

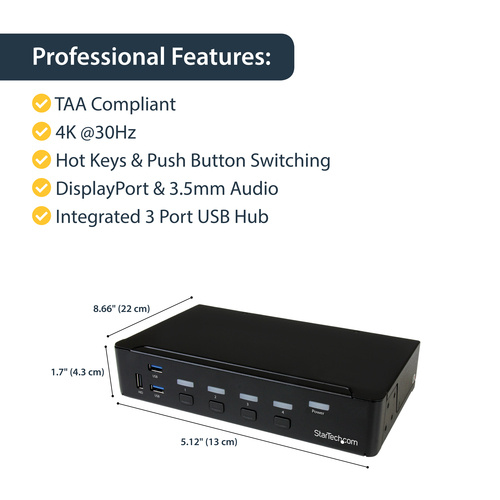

Weight & dimensions

Width
130 mm
Depth
220 mm
Height
43 mm
Weight
1.06 kg

Packaging data

Package width
244 mm
Package depth
297 mm
Package height
85 mm
Package weight
1.61 kg

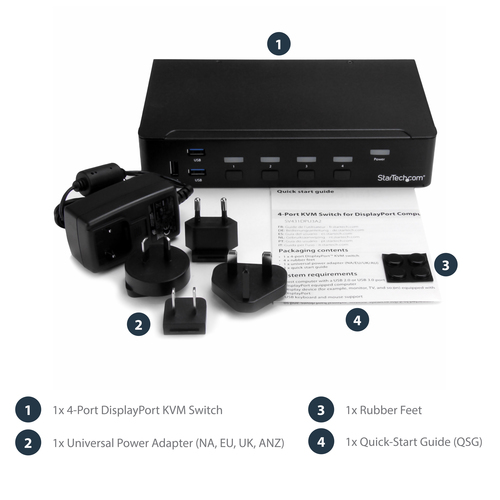

Packaging content

Quick installation guide
Yes
Rubber feet
Yes

Other features

Audio support
Yes
IP control
No

Logistics data

Harmonized System (HS) code
85176200
