SV431DPUA2 - Cables & Adaptors by StarTech.com

SV431DPUA2 - Cables & Adaptors by StarTech.com

Name: StarTech.com 4 Port DisplayPort KVM Switch - 4K 60Hz - Single Display - Dual Port UHD DP 1.2 USB KVM Switch with Integrated USB 2.0 Hub & Audio - Dell...
Brand: StarTech.com
SKU: SV431DPUA2
Price: 576.38 EUR
Availability: InStock

DisplayPort 1.2 KVM | TAA Compliant | USB 2.0 Hub | 7.1 HD Digital Audio

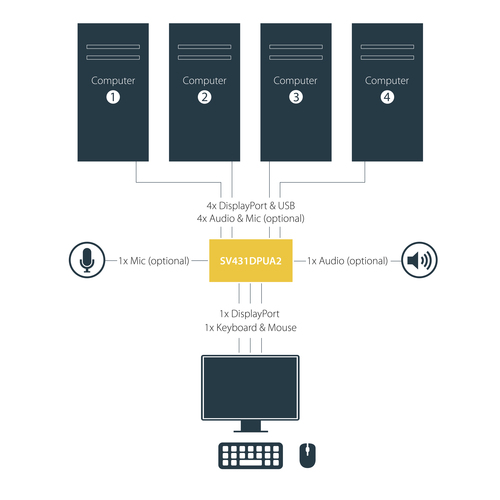

This 4-port KVM switch combines 4K (60Hz) digital display capabilities with control of up to four connected computers.

4K60 Picture and Full Audio Support

The DisplayPort KVM switch supports resolutions up to 4K at 60Hz and can drive one large DP display with ease, maximizing viewing space. With support for 7.1 HD digital audio (with supporting displays and sources) and separate 3.5 mm stereo audio, the DisplayPort 1.2 KVM switch delivers full audio compatibility.

Integrated USB Hub

The integrated USB 2.0 hub shares two additional peripherals (in addition to keyboard and mouse) among attached computers as if they were directly connected, eliminating the cost of duplicate devices such as printers and scanners.

PC and Mac Compatible

While supporting PCs, this DP KVM switch is also compatible with Mac computers using a Mini DisplayPort adapter, including laptops, notebooks, and tablets.

Simple to Operate

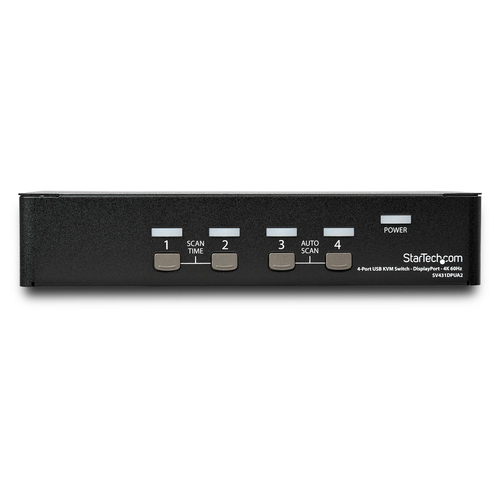

The front-panel pushbuttons make it easy to switch between systems and activate the auto scan. The hotkey functionality makes accessing each system quick while a buzzer sound confirms the switch.

StarTech.com offers a wide selection of high-quality KVM switches and KVM-related products to help you access your systems more efficiently without the expense and clutter of extra keyboards, mice and monitors. This USB KVM switch is backed by a 3-year warranty and free lifetime technical support.

The StarTech.com Advantage

1 IN STOCK

RRP Price €576.38

Specifications

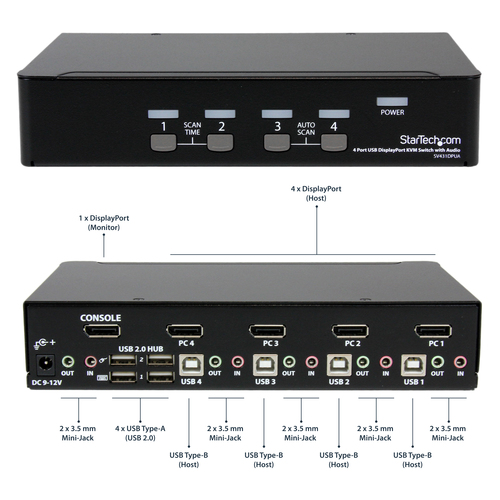

Ports & interfaces

Number of computers controlled

Keyboard port type

USB

Mouse port type

USB

Video port type

DisplayPort

DisplayPorts quantity

USB 2.0 Type-B ports quantity

Console ports

3.5mm headphone, 3.5mm mic, DisplayPort, USB A

Console USB ports quantity

Audio connections

Yes

Headphone outputs

Number of microphone inputs

DC-in jack

Yes

Network

Ethernet LAN

Performance

HD type

4K Ultra HD

Maximum resolution

3840 x 2160 pixels

Data transfer rate (max)

0.48 Gbit/s

Scan interval

3,8,15,30 s

Plug and Play

Yes

Daisy chain

Number of users

1 user(s)

Design

Rack mounting

Yes

Rack capacity

Product colour

Black

Housing material

Steel

LED indicators

Yes

Hot keys

Yes

Mean time between failures (MTBF)

138327 h

Certification

CE, FCC, TAA, REACH

Display

On Screen Display (OSD)

Yes

Power

Input voltage

100 - 240 V

Input current

0.6 A

Output voltage

12 V

Output current

1.5 A

Power consumption (typical)

18 W

External power adapter

Yes

Power plug type

Type M

Compatible power plug types

AU, EU, JP, UK, US

Sustainability

Compliance certificates

RoHS

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-10 - 60 °C

Operating relative humidity (H-H)

0 - 40%

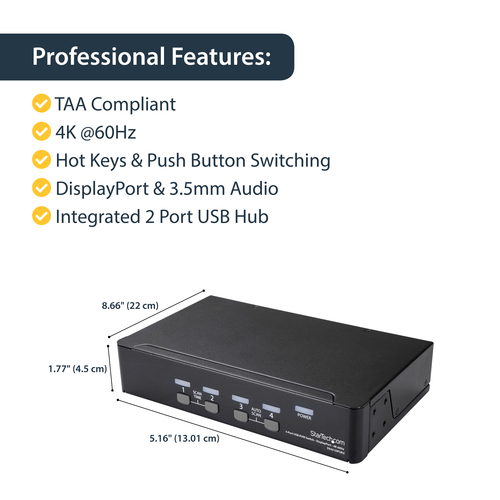

Weight & dimensions

Width

131 mm

Depth

220 mm

Height

45 mm

Weight

1 kg

Packaging data

Package width

212 mm

Package depth

409 mm

Package height

87 mm

Package weight

1.6 kg

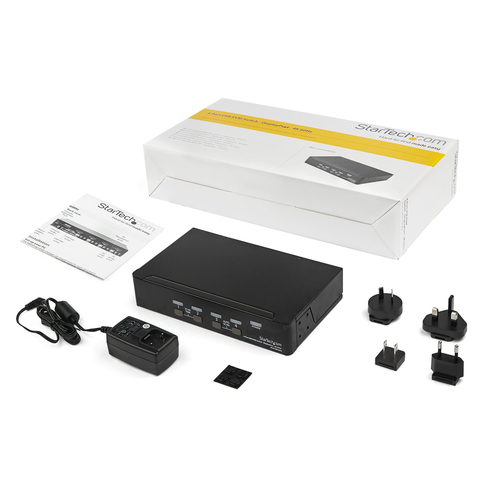

Packaging content

Quick installation guide

Yes

AC adapter included

Yes

Rubber feet

Yes

Other features

Audio support

Yes

IP control

Logistics data

Harmonized System (HS) code

85176200

Master (outer) case width

433 mm

Master (outer) case length

545 mm

Master (outer) case height

258 mm

Products per master (outer) case

6 pc(s)

Description

Manufacturer

StarTech.com

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

WH3 (5–7 Days)

N/A

Weight

1 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
