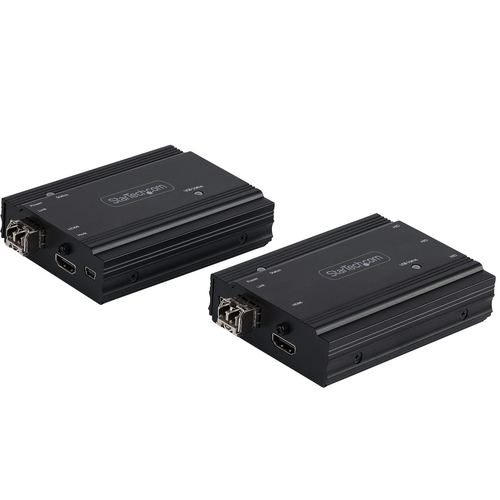

StarTech.com 4K HDMI KVM Extender over Fiber - HDMI Video & USB Remote KVM Switch/Console Extender - up to 984ft/300m (MultiMode) - 2x 10G MMF SFP+ modules - KVM Extension Kit (TX/RX)

StarTech.com 4K HDMI KVM Extender over Fiber - HDMI Video & USB Remote KVM Switch/Console Extender - up to 984ft/300m (MultiMode) - 2x 10G MMF SFP+ modules - KVM Extension Kit (TX/RX)

Name: StarTech.com 4K HDMI KVM Extender over Fiber - HDMI Video & USB Remote KVM Switch/Console Extender - up to 984ft/300m (MultiMode) - 2x 10G MMF SFP+ mo...
Brand: StarTech.com
SKU: SV565FXHD4KU
Price: 918.50 EUR
Availability: InStock

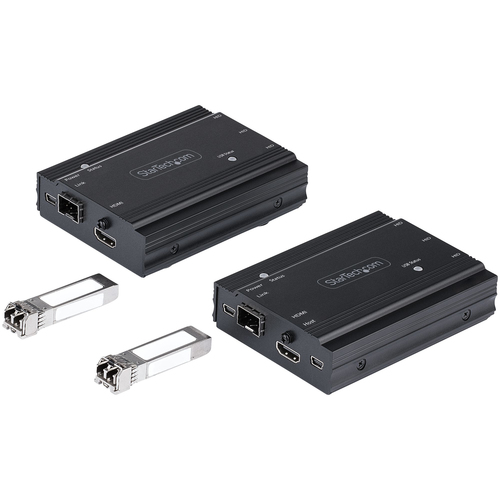

HDMI KVM Extender Kit | 4K 60Hz | 4:4:4 Chroma Sampling | 2x LC SFP+ (MM) Included

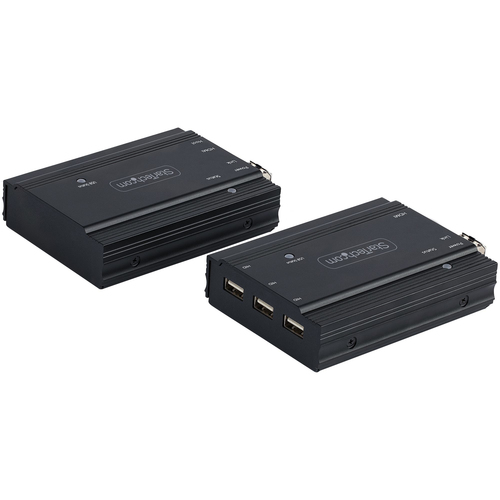

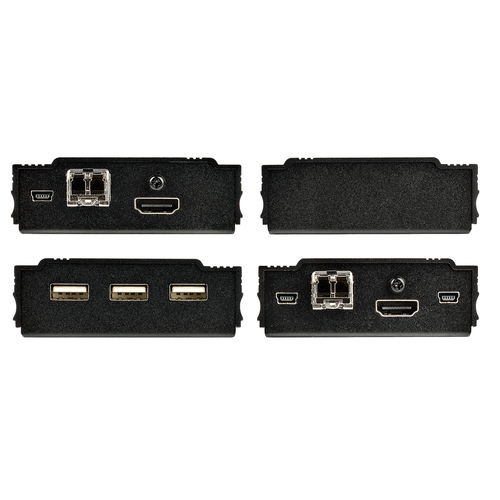

This HDMI KVM extender kit lets you use a keyboard, mouse and monitor to remotely control any computer over a point-to-point fiber connection. When combined with a KVM switch, the KVM console extender can be used with multiple computers. The extender features three USB HID ports that enable you to connect HID devices, like your keyboard and mouse.

Supports UHD 4K 60Hz

The HDMI KVM extender delivers up to 4K 60Hz UHD picture quality to your remote display with support for 4:4:4 chroma sampling.

Hassle-Free Installation

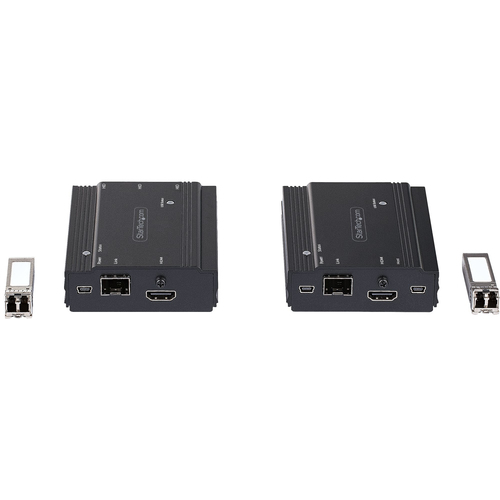

The extender supports EDID pass-through, ensuring your computer can automatically configure optimal settings for your display using 10G LC multi mode fiber cabling

SV565FXHD4KU is backed by a 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

1 IN STOCK

SKU: SV565FXHD4KU

Manufacturer:

StarTech.com

RRP Price €918.50

Specifications

Features

Type

Transmitter & receiver

Connectivity technology

Wired

Maximum transfer distance

500 m

Rack mounting

Maximum digital resolution

3840 x 2160 pixels

Maximum refresh rate

60 Hz

On Screen Display (OSD)

Product colour

Black

Material

Metal

LED indicators

Power, Status

Transmitter

Transmitter video port type

HDMI

Number of displays supported

Receiver

Receiver local video port type

HDMI

Ports & interfaces

USB 1.1 ports quantity

Power

AC input voltage

100 - 240 V

Input current

0.3 A

AC adapter output voltage

5 V

AC adapter output current

2 A

Power consumption (transmitter) (max)

10 W

Power consumption (receiver) (max)

10 W

Weight & dimensions

Transmitter width

7.5 cm

Transmitter depth

10 cm

Transmitter height

2.8 cm

Transmitter weight

450 g

Receiver width

7.5 cm

Receiver depth

10 cm

Receiver height

2.8 cm

Receiver weight

450 g

Packaging data

Package width

180 mm

Package depth

310 mm

Package height

75 mm

Package weight

140 g

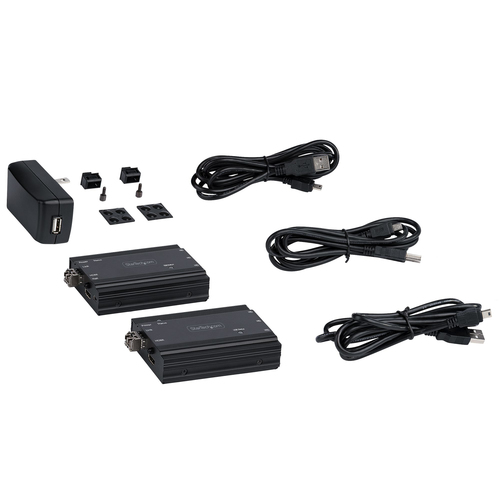

Packaging content

AC adapter included

Yes

Cables included

Mini-USB

Quick installation guide

Yes

Operational conditions

Operating temperature (T-T)

0 - 50 °C

Storage temperature (T-T)

-10 - 60 °C

Operating relative humidity (H-H)

0 - 80%

Other features

Compliance certificates

CE, RoHS

Technical details

Weight

500 g

Logistics data

Harmonized System (HS) code

84733080

Master (outer) case width

405 mm

Master (outer) case length

330 mm

Master (outer) case height

265 mm

Products per master (outer) case

6 pc(s)

Description

Manufacturer

StarTech.com

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

WH3 (5–7 Days)

N/A

Weight

0.14 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
