Name: StarTech.com HDMI KVM Extender over IP Network - 4K 30Hz HDMI 2.0 and USB over IP LAN or Cat5e/Cat6 Ethernet Cable (100m/330ft) - Remote KVM Switch/Co...
Brand: StarTech.com
SKU: SV565HDIP
Price: 906.13 EUR
Availability: InStock

KVM Console Extender Over IP | HDMI® | 4K @ 30Hz | 4x USB Ports | EDID Pass-Through

This HDMI KVM extender kit lets you use a keyboard, mouse and monitor to remotely control any computer over your IP-enabled local area network (LAN). Combined with a KVM switch, the KVM console extender can be used with multiple computers. The extender features four USB ports that enable you to connect other USB devices, in addition to your keyboard and mouse.

Supports UHD 4K 30Hz

The HDMI KVM extender delivers astonishing 4K UHD picture quality to your remote display with support for resolutions up to 3840 x 2160p at 30Hz.

Hassle-Free Installation

With a transmitter and a receiver, the KVM extender provides a complete end-to-end solution that supports mounting for tidy installation. Plus, it uses standard CAT5e or CAT6 Ethernet cable, eliminating the expense and hassle of specialized cables and enabling you to use existing network infrastructure.

The extender supports EDID pass-through, ensuring your computer can automatically configure optimal settings for your display over your LAN.

Versatile Configuration Options

The extender uses your local intranet to connect your computers to your remote workstation. You can connect additional receivers (sold separately) to distribute your HDMI signal to multiple displays in your remote location, or combine the source to create a video wall that expands your single video source across multiple displays.

For smaller-scale applications, you can connect the transmitter and receiver units directly over CAT5e or CAT6 cabling up to 330 feet (100 meters).

SV565HDIP is backed by a 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

3 IN STOCK

RRP Price €906.13

Specifications

Ports & interfaces

Keyboard port type

USB

Mouse port type

USB

Video port type

HDMI

HDMI ports quantity

USB hub

Yes

USB 2.0 Type-A hub ports quantity

Audio connections

Yes

Headphone outputs

Number of microphone inputs

DC-in jack

Yes

Network

Ethernet LAN (RJ-45) ports

Performance

HD type

4K Ultra HD

Maximum resolution

3840 x 2160 pixels

Video bandwidth

30 Hz

Daisy chain

Maximum operating distance

100 m

Chipset

ASPEED - AST1520

Audio channels

7.1

Design

Product colour

Black

Housing material

Steel

LED indicators

Yes

Hot keys

Mean time between failures (MTBF)

60000 h

Certification

CE, FCC, TAA, REACH

Display

Built-in display

On Screen Display (OSD)

Yes

Power

Input voltage

100 - 240 V

Input current

0.6 A

Output voltage

12 V

Output current

1.5 A

Power consumption (typical)

18 W

External power adapter

Yes

Power plug type

Type M

Compatible power plug types

AU, EU, JP, UK

Sustainability

Compliance certificates

RoHS

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-10 - 60 °C

Operating relative humidity (H-H)

0 - 80%

Weight & dimensions

Width

117 mm

Depth

130 mm

Height

28 mm

Weight

610 g

Packaging data

Package width

365 mm

Package depth

195 mm

Package height

235 mm

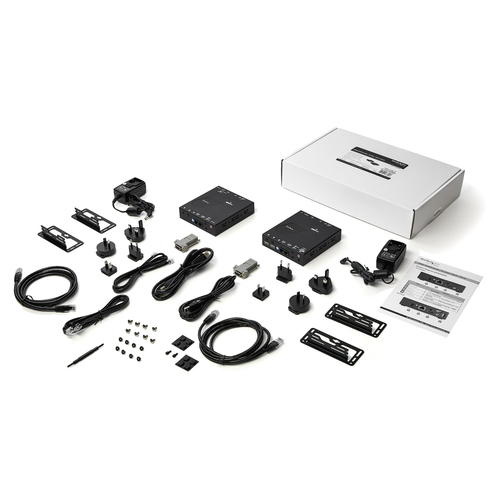

Packaging content

Cables included

HDMI, LAN (RJ-45), Phone (RJ-11), USB

Quick installation guide

Yes

AC adapter included

Yes

Rubber feet

Yes

Other features

IP control

Logistics data

Harmonized System (HS) code

85176200

Master (outer) case width

385 mm

Master (outer) case length

495 mm

Master (outer) case height

265 mm

Products per master (outer) case

6 pc(s)

Description

Manufacturer

StarTech.com

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

WH3 (5–7 Days)

N/A

Weight

0.61 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
