Trendnet TEG-25GECTX network card Internal Ethernet 2500 Mbit/s

Trendnet TEG-25GECTX network card Internal Ethernet 2500 Mbit/s

Name: Trendnet TEG-25GECTX network card Internal Ethernet 2500 Mbit/s
Brand: Trendnet
SKU: TEG-25GECTX
Price: 25.72 EUR
Availability: OutOfStock

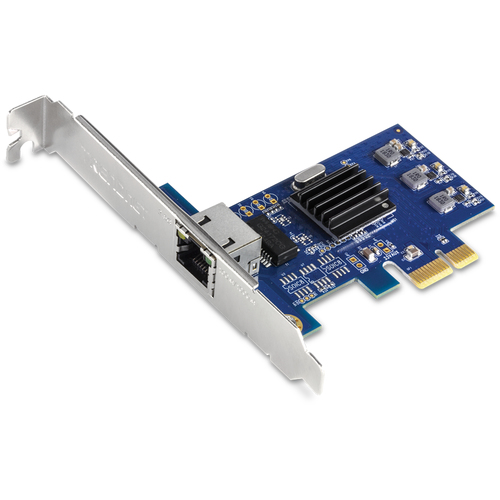

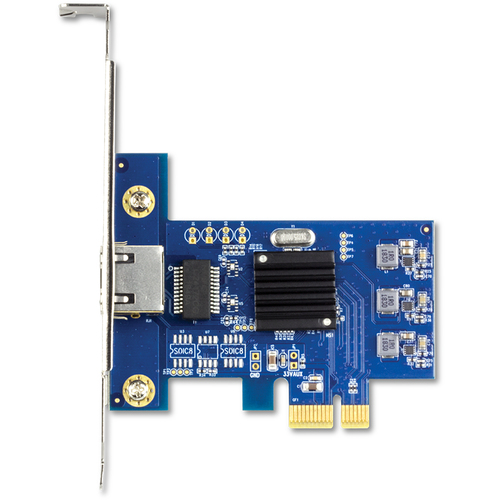

2.5GBASE-T PCIe Network Adapter

TRENDnet’s 2.5GBASE-T PCIe Network Adapter, model TEG-25GECTX, converts a free PCI Express slot into a 2.5GBASE-T Ethernet port. The 2.5G network adapter includes advanced features such as jumbo frame and VLAN tagging support. Compatible with Windows and Linux desktop computer designs, the 2.5G network adapter includes both standard and low-profile brackets.

2.5G Port

2.5G network adapter supports three speeds: 2.5Gbps, 1Gbps, and 100Mbps.

Jumbo Frame

Sends larger packets, or jumbo frames (up to 9KB), for increased performance.

Operating Systems

Compatible with Windows, Windows Server, and Linux operating systems.

2.5G Port

2.5G network adapter supports three speeds: 2.5Gbps, 1Gbps, and 100Mbps.

PCI Express

Converts a PCIe 2.0 x1 slot into a 2.5G Ethernet Port

2.5GBASE-T Support

2.5GBASE-T specification (802.3bz) supports 2.5G speeds over standard Cat5e cables at distances up to 100m (328 ft.)

Jumbo Frame

Sends larger packets, or jumbo frames (up to 9KB), for increased performance

VLAN Support

2.5G network adapter with IEEE 802.1Q tagged-based VLAN support

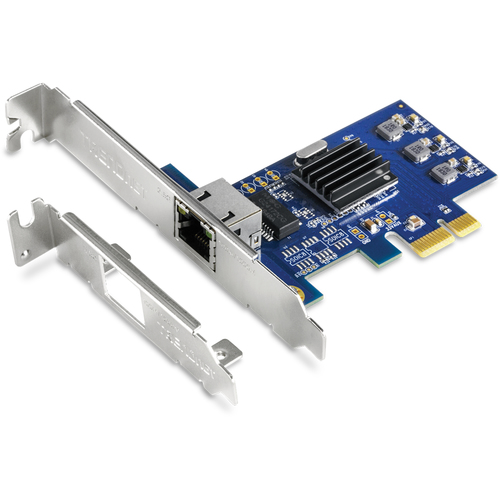

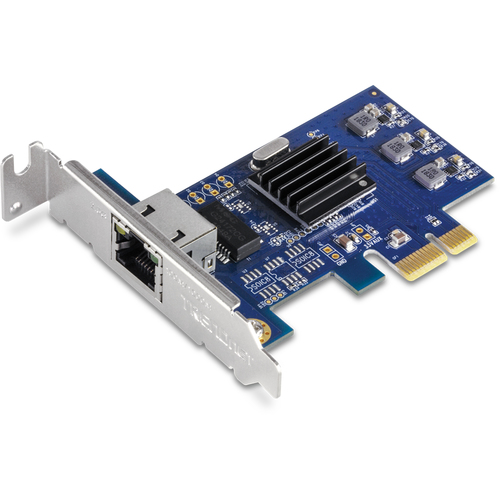

Brackets

Supports most installations with included standard and low-profile brackets

Operating Systems

Compatible with Windows, Windows Server, and Linux operating systems

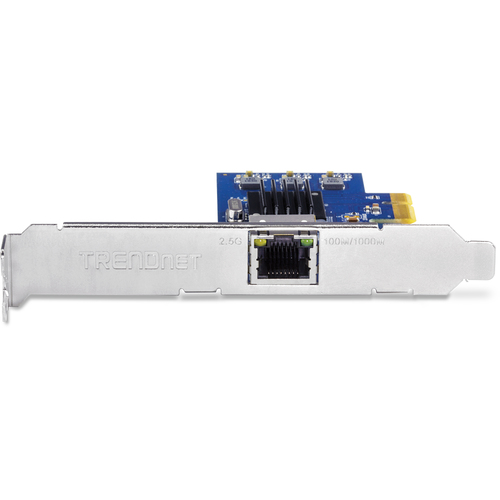

LED Indicators

LED indicators convey port status, link speed and activity

ON ORDER

RRP Price €25.72

Specifications

Ports & interfaces

Connectivity technology

Wired

Host interface

PCI Express

Interface

Ethernet

Ethernet LAN (RJ-45) ports

Network

Maximum data transfer rate

2500 Mbit/s

Networking standards

IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u

Ethernet LAN

Yes

Design

Product colour

Blue, Silver

Internal

Yes

LED indicators

Yes

Certification

CE, FCC

Power

Power consumption (typical)

1.8 W

System requirements

Windows operating systems supported

Windows 10, Windows 7, Windows 8.1

Linux operating systems supported

Yes

Server operating systems supported

Windows Server 2012, Windows Server 2016

Operational conditions

Operating relative humidity (H-H)

0 - 90%

Weight & dimensions

Width

84 mm

Depth

64 mm

Height

18 mm

Weight

42 g

Logistics data

Harmonized System (HS) code

85176990

Other features

Minimum operating temperature

0 °C

Maximum operating temperature

40 °C

Quick start guide

Yes

Description

Manufacturer

Trendnet

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

0.042 kg

Country of Origin

N/A

Datasheet

No Data Sheet Found!

Accessories

No Accessories Found!

License

No License Found!
