U330-05M - Cables & Adaptors by Eaton

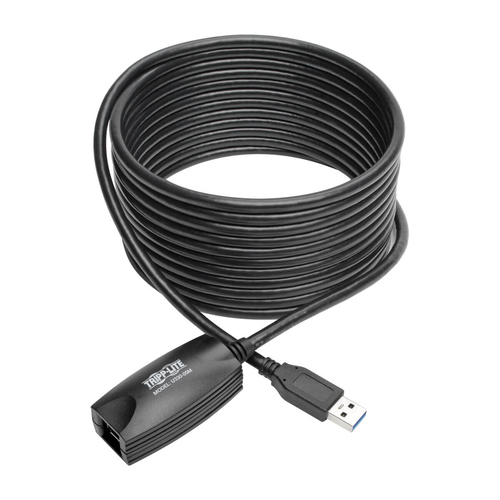

This USB 3.0 active extension cable is a bus-powered extension cable that can be used to increase the length of a device cable without the worry of signal loss and potential performance problems. Increase the extension distance to 32.8 feet (10 meters) by connecting two U330-05M together. USB limits a cable's length to 16 feet (4.9 meters). Any length above 16 feet requires the use of an active cable such as this one. This cable has a signal booster built in. The cable must be plugged directly into a USB port (either on the PC or a hub). Use a standard six-foot (1.8-meter), 10-foot (3.1-meter) or 15-foot (4.6-meter) USB A/B cable to reach the desired distance. The U330-05M provides up to 770mA of power to the connected device. If your device requires more than 770mA of power, an external power supply will be required for the connected USB device.

ON ORDER

RRP Price €34.50

Specifications

Features

USB version
USB 3.2 Gen 1 (3.1 Gen 1)
Connector 1
USB A
Connector 2
USB A
Connector gender
Male/Female
Connector 1 gender
Male
Connector 2 gender
Female
Connector 1 form factor
Straight
Connector 2 form factor
Straight
Maximum data transfer rate
5000 Mbit/s
Maximum data transfer rate
5 Gbit/s
Product colour
Black

Weight & dimensions

Cable length
4.88 m
Weight
250 g

Packaging data

Package width
177.8 mm
Package depth
12.7 mm
Package height
228.6 mm
Package weight
320 g

Certificates

Compliance certificates
RoHS

Logistics data

Products per master (outer) case
10 pc(s)
Master (outer) case GTIN (EAN/UPC)
10037332173499
Master (outer) case width
497.8 mm
Master (outer) case length
25.4 mm
Master (outer) case height
497.8 mm
Master (outer) case gross weight
3.25 kg
Harmonized System (HS) code
84733080
Country of origin
Vietnam
