U420-C03-G2-5A - Cables & Adaptors by Eaton

U420-C03-G2-5A - Cables & Adaptors by Eaton

Name: Tripp Lite U420-C03-G2-5A USB-C Cable (M/M) - USB 3.2, Gen 2 (10 Gbps), 5A (100W) Rating, USB-IF Certified, Thunderbolt 3 Compatible, 3 ft. (0.91 m)
Brand: Eaton
SKU: U420-C03-G2-5A
Price: 24.78 EUR
Availability: OutOfStock

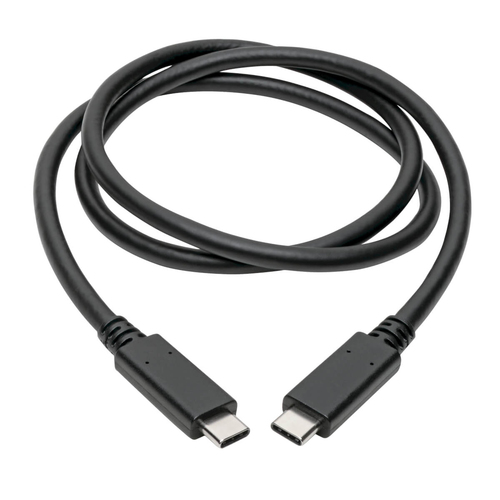

USB-C to USB-C Cable Connects 2 USB-C Devices, Including MacBooks and Smartphones
This three-foot USB Type-C to Type-C cable allows you to connect one USB-C device to another. For instance, a laptop to a docking station, your smartphone to a wall charger, or a hard drive or flash drive to a computer or tablet. The USB-C to C cable is compatible with any device with a USB-C or Thunderbolt 3 port, including MacBooks, Ultrabooks and Chromebooks.

Transfers Data and Charges Devices at Lightning-Fast USB 3.1 Gen 2 Speeds
The PD Charging cable supports USB 3.1 Gen 2 data transfer rates up to 10 Gbps, which is twice as fast as USB 3.1 Gen 1. It also provides power output up to 5 amps (100 watts), which is sufficient for fast-charging, syncing and powering most large-capacity devices. The USB Type-C to USB Type-C cable is backward compatible with previous USB generations, allowing you to use it with older equipment.

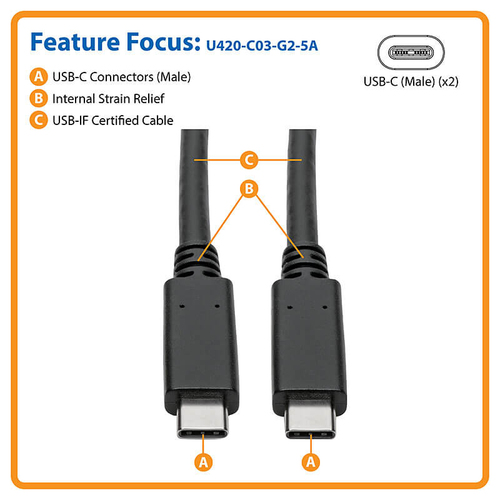

Reversible USB-C Connectors Attach in Either Direction
Unlike traditional USB cables that connect in only one direction, the reversible USB-C male connectors plug into a USB-C or Thunderbolt 3 port in either direction for a fumble-free connection every time.

USB-IF Certification Ensures Rigorous Testing and Top-of-the-Line Performance
This cable meets the high standards of USB-IF (USB Implementers Forum, Inc.), a non-profit organization consisting of companies that developed the USB specification. Receiving USB-IF certification means the U420-C03-G2-5A meets the industry’s highest environmental, mechanical and electrical standards. It operates with your USB peripherals, adapters and cables with top efficiency and safety.

ON ORDER

RRP Price €24.78

Specifications

Features

USB version

USB 3.2 Gen 2 (3.1 Gen 2)

Connector 1

USB C

Connector 2

USB C

Connector 1 gender

Male

Connector 2 gender

Male

Connector 1 form factor

Straight

Connector 2 form factor

Straight

AWG wire size

34/26

Connector contacts plating

Nickel/Gold

Cable jacket material

Polyvinyl chloride (PVC)

Maximum data transfer rate

10000 Mbit/s

Maximum data transfer rate

10 Gbit/s

Product colour

Black

Power

Output voltage

5 V

Weight & dimensions

Cable length

0.91 m

Cable diameter

5.2 mm

Packaging data

Package type

Polybag

Package width

177.8 mm

Package depth

228.6 mm

Package height

12.7 mm

Package weight

50 g

Packaging content

Quantity per pack

1 pc(s)

Certificates

Compliance certificates

RoHS

Certification

CE, FCC, REACH, USB-IF

Logistics data

Products per master (outer) case

10 pc(s)

Master (outer) case GTIN (EAN/UPC)

10037332214994

Master (outer) case width

330.2 mm

Master (outer) case length

355.6 mm

Master (outer) case height

50.8 mm

Master (outer) case gross weight

540 g

Country of origin

Vietnam

Description

Manufacturer

Eaton

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

0.05 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
