Name: Tripp Lite U428-06N-F-CRA USB-C to USB-A Adapter (M/F), Right-Angle C, USB 3.2 Gen 1 (5 Gbps), Thunderbolt 3 Compatible, 6-in. (15.24 cm)
Brand: Eaton
SKU: U428-06N-F-CRA
Price: 12.55 EUR
Availability: OutOfStock

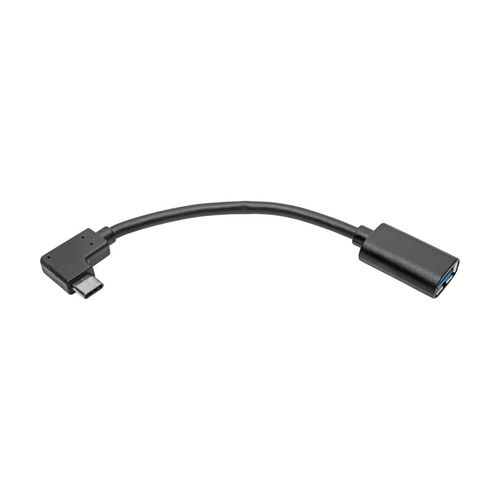

USB Type-C to USB Type-A Adapter Connects an Existing USB Device to Your USB-C Laptop
This six-inch USB Type-C to Type-A adapter allows you to connect USB devices to your smartphone, tablet, laptop, MacBook, Chromebook or Ultrabook’s USB-C or Thunderbolt 3 port. USB wall chargers, hard drives, memory sticks, printers and other peripherals with USB-A ports will be able to communicate with your computer or other USB-C mobile device.

PD Charging Cable Charges Devices and Transfers Data at Fast USB 3.1 Gen 1 Speeds
The USB-C to USB-A adapter supports USB 3.1 Gen 1 data transfer rates up to 5 Gbps, which is 10 times faster than USB 2.0. The Power Delivery cable also provides power output up to 3 amps (60 watts), which is more than sufficient for charging, syncing and powering compatible devices. The cable is backward compatible with previous USB generations, allowing you to use it with older USB 3.0, USB 2.0 or USB 1.1 equipment.

Reversible USB-C Connector Attaches in Either Direction
Unlike traditional USB cables that connect in only one direction, the reversible USB-C male connector plugs into a USB-C or Thunderbolt 3 port in either direction for a fumble-free connection every time.

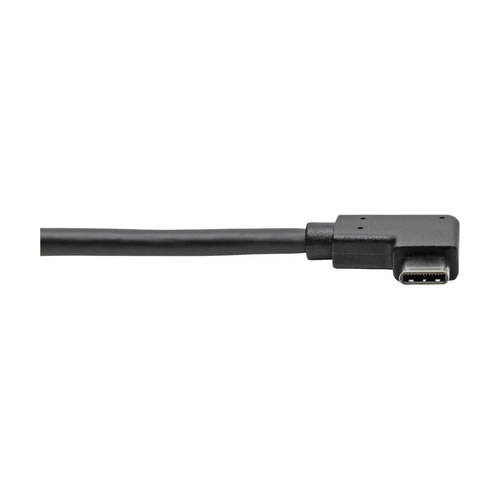

Right-Angle USB-C Plug Makes Connecting in Tight Spaces Easier
The space-saving right-angle USB-C plug is easy to install in confined spaces, such as behind your computer desk or workstation. The right-angle construction also relieves strain on the cable and connector and prevents the cable from bending awkwardly.

ON ORDER

RRP Price €12.55

Specifications

Features

USB version

USB 3.2 Gen 1 (3.1 Gen 1)

Connector 1

USB C

Connector 2

USB A

Connector 1 gender

Male

Connector 2 gender

Female

Connector 1 form factor

Angled

Connector 2 form factor

Straight

AWG wire size

30/24

Connector contacts plating

Nickel/Gold

Cable jacket material

Polyvinyl chloride (PVC)

Maximum data transfer rate

5000 Mbit/s

Maximum data transfer rate

5 Gbit/s

Product colour

Black

Power

Output current (max)

3 A

Weight & dimensions

Cable length

0.2 m

Cable diameter

4.5 mm

Packaging data

Package type

Polybag

Package width

177.8 mm

Package depth

12.7 mm

Package height

228.6 mm

Package weight

20 g

Packaging content

Quantity per pack

1 pc(s)

Certificates

Compliance certificates

RoHS

Certification

CE, FCC, REACH

Logistics data

Products per master (outer) case

10 pc(s)

Master (outer) case GTIN (EAN/UPC)

10037332214130

Master (outer) case width

241.3 mm

Master (outer) case length

25.4 mm

Master (outer) case height

299.7 mm

Master (outer) case gross weight

170 g

Country of origin

Vietnam

Description

Manufacturer

Eaton

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

0.02 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
