U444-003-H - Cables & Adaptors by Eaton

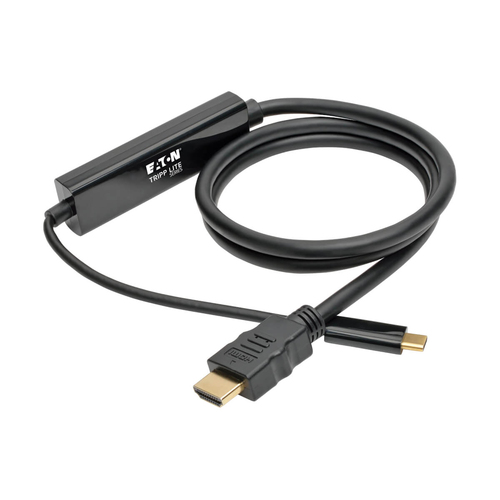

Name: Tripp Lite U444-003-H USB-C to HDMI Active Adapter Cable (M/M), 4K, Black, 3 ft. (0.9 m)
Brand: Eaton
SKU: U444-003-H
Price: 37.77 EUR
Availability: OutOfStock

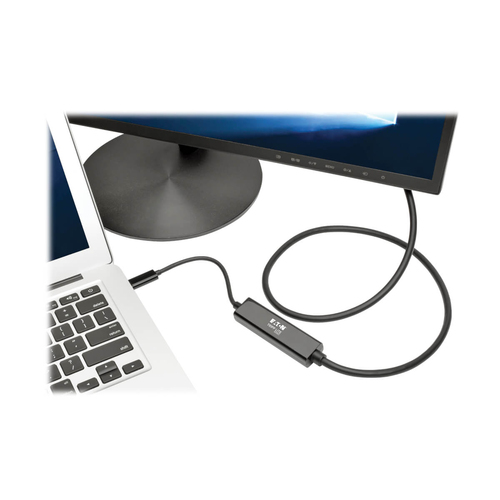

Connects an HDMI Display to Your USB-C or Thunderbolt 3 Device
Compatible with USB-C or Thunderbolt 3 source devices that support USB DisplayPort Alternate Mode
Ideal for giving video presentations, editing multiple documents or streaming 4K video for digital signage
Supports USB 3.1 Gen 1 data transfer rates up to 5 Gbps

Common Applications
Extends 4K video from your primary display to another
Duplicates the same video on 2 displays
Converts a secondary display to your primary display

Crystal-Clear 4K Video and Digital Audio
Supports UHD video resolutions up to 3840 x 2160 (4K x 2K) @ 30 Hz
Supports 36-bit Deep Color (12 bits per channel)
Supports per-lane transfer rates of 5.4 Gbps (HBR2), 2.7 Gbps (HBR) and 1.62 Gbps (RBR)

Reversible USB-C Connector
Fumble-free reversible USB-C plug connects in either direction for quick connection every time

Premium Construction
Gold-plated connectors and contacts for maximum conductivity and minimum data loss
Foil and braid shielding protects against EMI/RFI line noise that can distort or destroy data
Integral strain relief helps cable and connectors move freely without stress or cracking
Durable PVC jacket designed to last a long time

Ready for Instant Use
Plug-and-play operation with no software, drivers or external power required
3 ft. length easy to manage in crowded environments
Backward compatible with non-4K displays

ON ORDER

RRP Price €37.77

Specifications

Features

Cable length

0.9 m

Connector 1

USB Type-C

Connector 2

HDMI

Connector 1 gender

Male

Connector 2 gender

Male

Maximum resolution

3840 x 2160 pixels

Supported graphics resolutions

3840 x 2160

Data transfer rate

5.4 Gbit/s

Product colour

Black

Colour depth

36 bit

Plug and Play

Yes

Country of origin

Vietnam

Certificates

Compliance certificates

RoHS

Weight & dimensions

Weight

70 g

Packaging data

Package width

177.8 mm

Package depth

241.3 mm

Package height

25.4 mm

Package weight

90 g

Logistics data

Harmonized System (HS) code

84733080

Master (outer) case width

355.6 mm

Master (outer) case length

393.7 mm

Master (outer) case height

50.8 mm

Master (outer) case gross weight

870 g

Products per master (outer) case

10 pc(s)

Master (outer) case GTIN (EAN/UPC)

10037332202472

Description

Manufacturer

Eaton

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

0.07 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download

Accessories

No Accessories Found!

License

No License Found!

Related Products

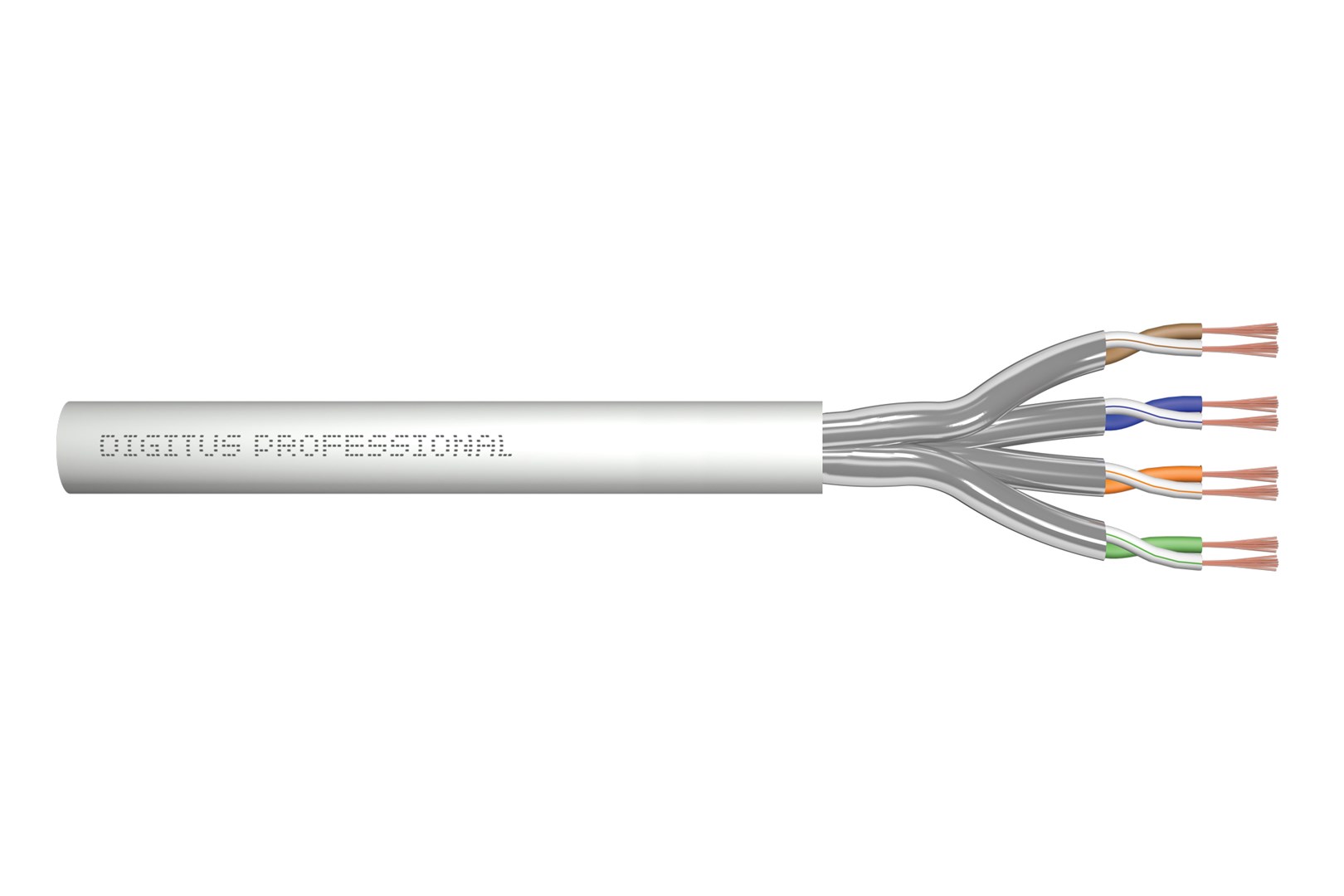

Digitus CAT 6A U/FTP twisted pair patch cord, raw Cables & Adaptors

Future-oriented standards and high-end quality for your network.- Suitable for direct assembly of RJ45 connectors in order to produce patch cords- Suitable for installations of class EA cable lines, 500 MHz- According to the norms ANSI/TIA-568-C; ISO/IEC 11801 2nd Ed.; EN 50173-1: EN 50288-10-1- Conductor: Copper (Cu)- PoE+ readyThe raw patch cords are manufactured and tested acc. to the ISO/IEC 11801 and DIN EN 50173 specifications. They will guarantee that the installed cabling system is compliant with the ISO & EN channel specification requirements and therefore provide optimum performance levels for your cablings.The raw patch cords are suitable for the direct assembly of RJ45 connector in order to produce patch cords.

€45.35

CP-3905-PWR-CN= Cables & Adaptors

€14.73

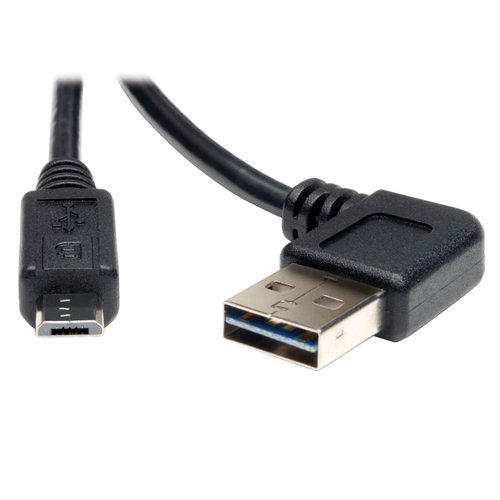

Tripp Lite UR050-003-RA Universal Reversible USB 2.0 Cable (Reversible Right / Left-Angle A to Micro-B M/M), 3 ft. (0.91 m) Cables & Adaptors

The UR050-003-RA USB 2.0 Right / Left Angle A to Micro-B cablefeatures a Universal / Reversible "A" connector, which takes the guesswork out of which way to position the "A" connector for plugging. Smaller and more durable (10,000 insertion cycles) than the existing mini-B connectors, the Micro-USB will also handle power transfers, as well as data. USB 2.0 rated cable handles 480 Mbps data transfer rates.

€3.79

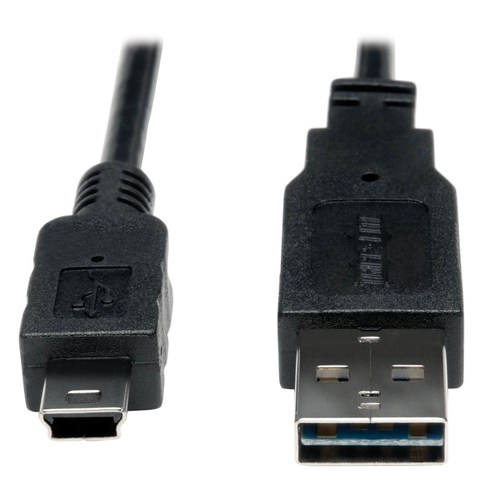

Tripp Lite UR030-006 Universal Reversible USB 2.0 Cable (Reversible A to 5Pin Mini B M/M), 6 ft. (1.83 m) Cables & Adaptors
