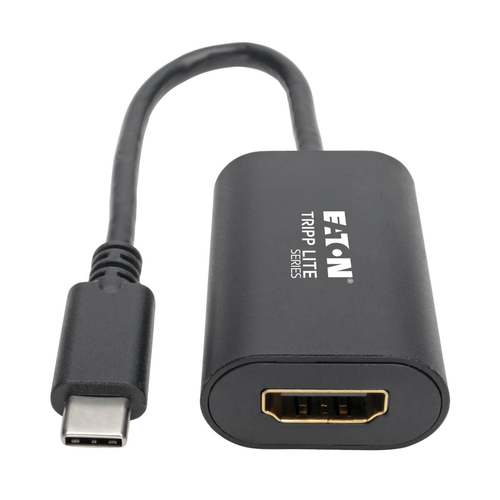

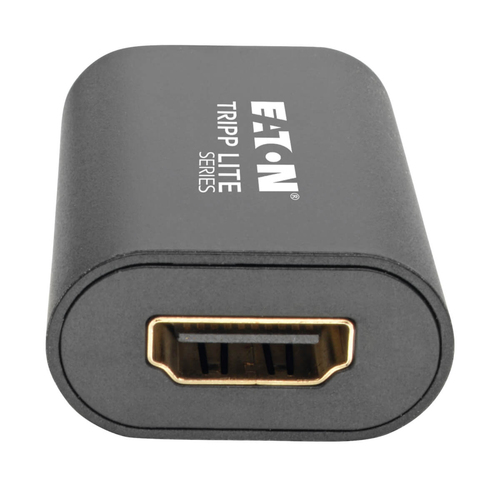

Tripp Lite U444-06N-HD4K6B USB-C to HDMI Adapter (M/F) - 4K 60 Hz, HDCP 2.2, Black

Tripp Lite U444-06N-HD4K6B USB-C to HDMI Adapter (M/F) - 4K 60 Hz, HDCP 2.2, Black

Name: Tripp Lite U444-06N-HD4K6B USB-C to HDMI Adapter (M/F) - 4K 60 Hz, HDCP 2.2, Black
Brand: Eaton
SKU: U444-06N-HD4K6B
Price: 32.33 EUR
Availability: OutOfStock

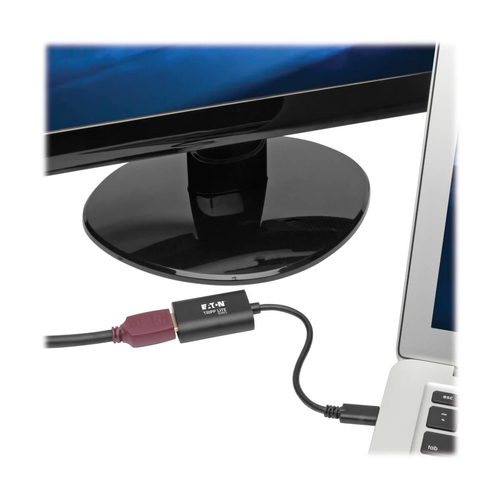

Connects an HDMI Display to Your USB-C or Thunderbolt 3 Device
Compatible with USB-C or Thunderbolt 3 source devices that support USB DisplayPort Alternate Mode
Ideal for giving video presentations, editing multiple documents or streaming video for digital signage
Meets HDCP 2.2 specifications

Common Applications
Extends video from your primary display to another
Duplicates the same video on 2 displays
Converts a secondary display to your primary display

Crystal-Clear True 4K Video and Digital Audio
Supports UHD video resolutions up to 4K x 2K (4096 x 2160) @ 60 Hz, as specified in HDMI 2.0
Supports 24-bit Deep Color (8 bits per channel)
Supports 7.1-channel surround sound
Supports per-lane transfer rates of 5.4 Gbps (HBR2), 2.7 Gbps (HBR) and 1.62 Gbps (RBR)

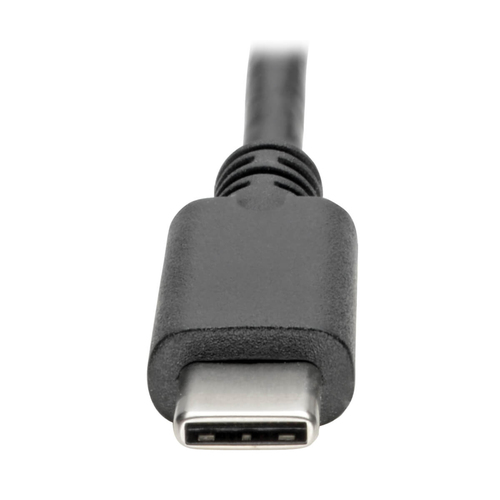

Built-In Cable with Reversible USB-C Connector
Fumble-free reversible USB-C plug connects in either direction for quick connection every time

Ready for Instant Use
Plug-and-play operation with no software, drivers or external power required
Half the footprint of a credit card for easy carrying in a pocket, purse or laptop bag
Backward compatible with non-4K displays

ON ORDER

RRP Price €32.33

Specifications

Features

Connector contacts plating

Nickel/Gold

Cable length

0.1524 m

Connector 1

USB Type-C

Connector 2

HDMI

Connector 1 gender

Male

Connector 2 gender

Female

Maximum resolution

4096 x 2160 pixels

Data transfer rate

5 Gbit/s

Product colour

Black

Country of origin

China

Operational conditions

Operating temperature (T-T)

-20 - 70 °C

Storage temperature (T-T)

-20 - 85 °C

Operating relative humidity (H-H)

5 - 90%

Certificates

Compliance certificates

RoHS

Certification

FCC, CE

Weight & dimensions

Cable diameter

4 mm

Weight

20 g

Packaging data

Package width

145 mm

Package depth

76.2 mm

Package height

26.9 mm

Package weight

50 g

Packaging content

Quantity per pack

1 pc(s)

Logistics data

Harmonized System (HS) code

84733080

Master (outer) case width

290.1 mm

Master (outer) case length

160 mm

Master (outer) case height

95 mm

Master (outer) case gross weight

700 g

Products per master (outer) case

10 pc(s)

Master (outer) case GTIN (EAN/UPC)

10037332203363

Description

Manufacturer

Eaton

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

0.02 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download

Accessories

No Accessories Found!

License

No License Found!
