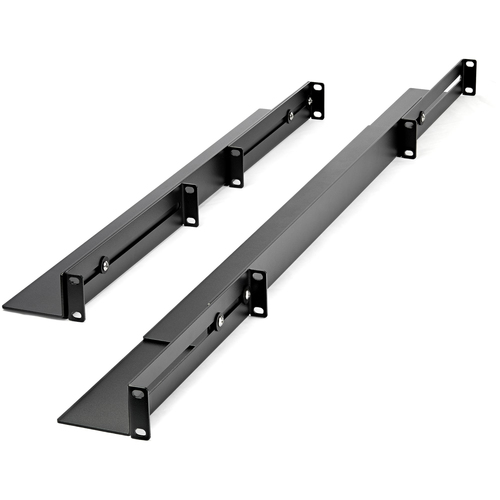

StarTech.com 1U 19 inch Server Rack Rails - 24-36 inch Adjustable Depth - Universal 4 Post Rack Mount Rails - Network Equipment/Server/UPS Mounting Rail Kit HPE ProLiant Dell PowerEdge

Universal | EIA/ECA-310 Compliant | Supports up to 200lbs

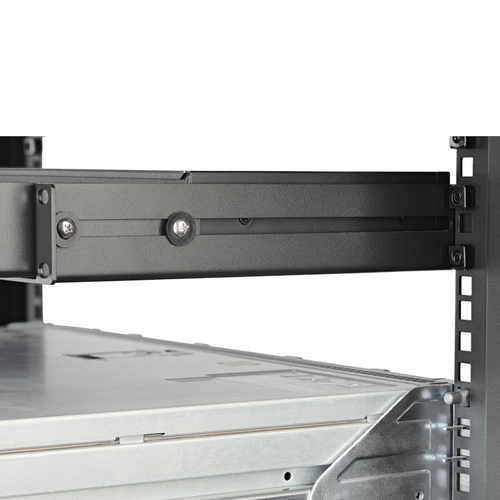

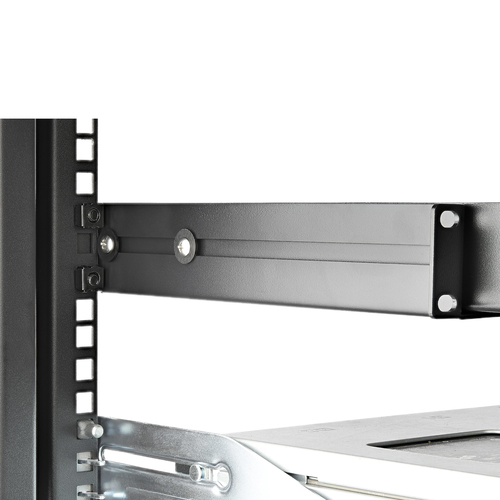

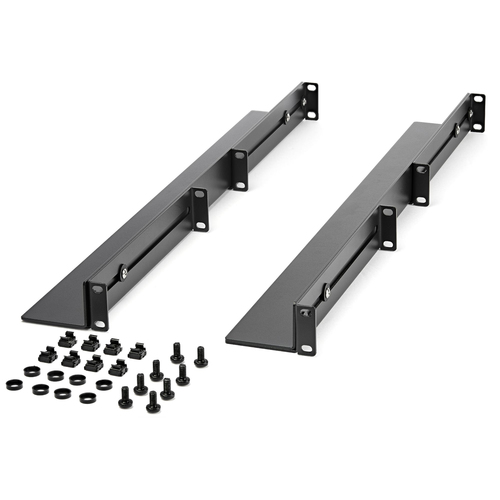

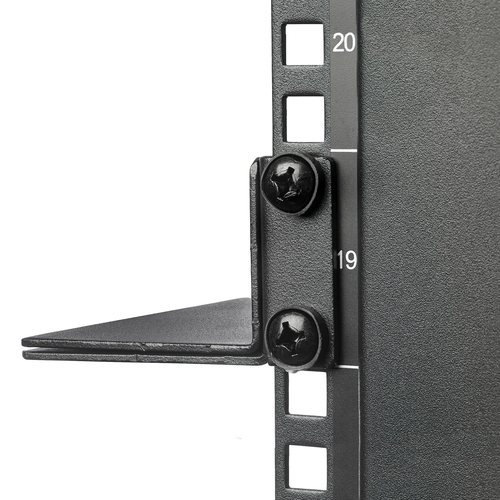

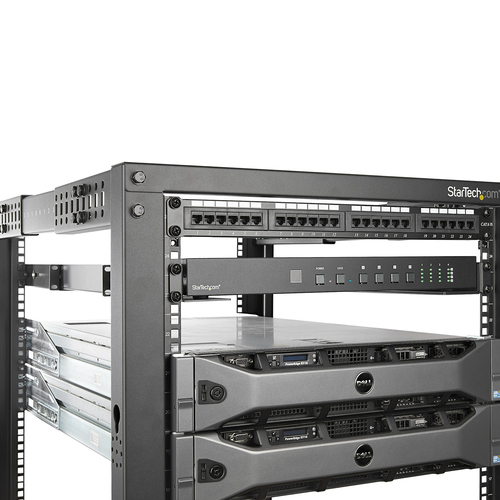

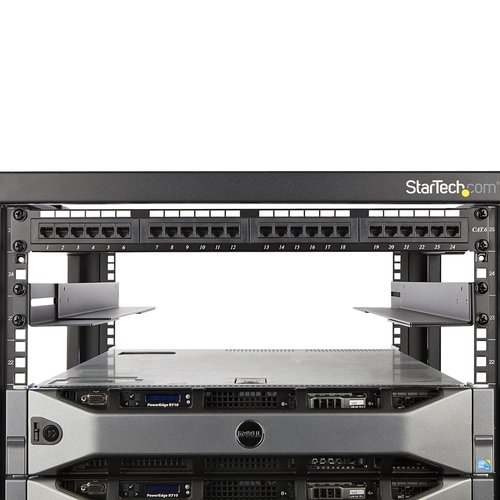

These 1U server rack rails let you mount devices, such as servers or networking equipment, that did not come with rack rails into your 19” 4 post rack. The adjustable server rack rails are also a great solution for mounting OEM equipment such as Dell™, IBM®, HP® or Apple servers.

Universal design mounts to almost any 19" server rack

Adhering to the EIA/ECA-310 standard for 19 inch server rack equipment and accessories, these mounting rails are compatible with most 19 inch server racks. The depth is adjustable for a variety of rack sizes and configurations up to a maximum depth of 36 inches.

Maximum durability

To ensure your equipment is secure, these universal rack mount rails feature cold-rolled steel construction. The durable design can support a weight load of up to 200 lbs (90 kg).

The Choice of IT Pros Since 1985

StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers both pre and post-sales.

The UNIRAILS1UB is backed by a lifetime StarTech.com warranty with free technical support.

The StarTech.com Advantage

22 IN STOCK

SKU: UNIRAILS1UB

Manufacturer: StarTech.com StarTech.com

RRP Price €76.14

Specifications

Features

Type
Rack rail
Product colour
Black
Maximum weight capacity
90.7 kg
Compliance industry standards
EIA-310-D

Weight & dimensions

Width
80 mm
Depth
628 mm
Height
45 mm
Mounting depth (min)
61 cm
Mounting depth (max)
91.4 cm
Weight
3.5 kg

Packaging data

Quantity per pack
2 pc(s)
Package width
220 mm
Package depth
640 mm
Package height
90 mm
Package weight
4 kg

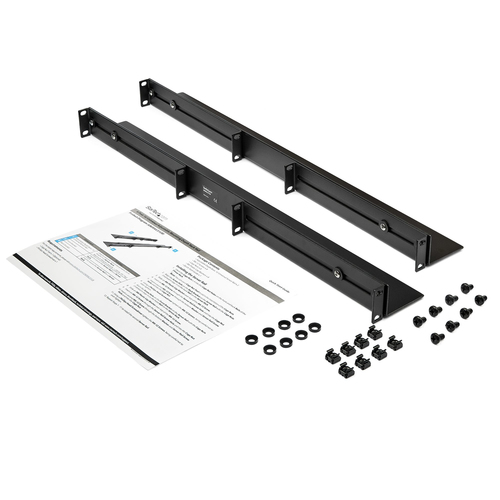

Packaging content

Quick installation guide
Yes
Screws included
Yes
Number of screws
8
Nuts included
Yes
Number of nuts
8
Washers included
Yes
Number of washers included
8

Technical details

Compliance certificates
CE, RoHS

Logistics data

Master (outer) case width
460 mm
Master (outer) case length
660 mm
Master (outer) case height
490 mm
Products per master (outer) case
10 pc(s)
Harmonized System (HS) code
85389099
