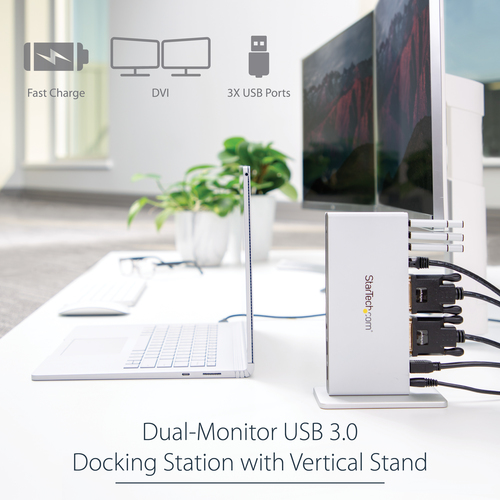

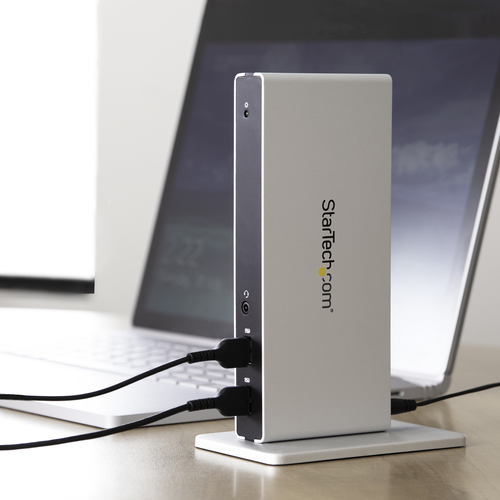

StarTech.com Dual-Monitor USB 3.0 Docking Station with DVI and Vertical Stand

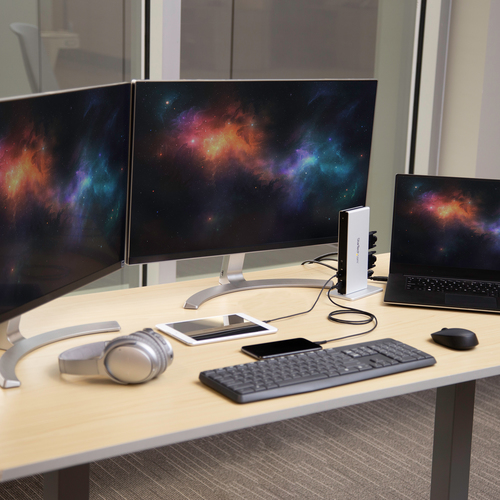

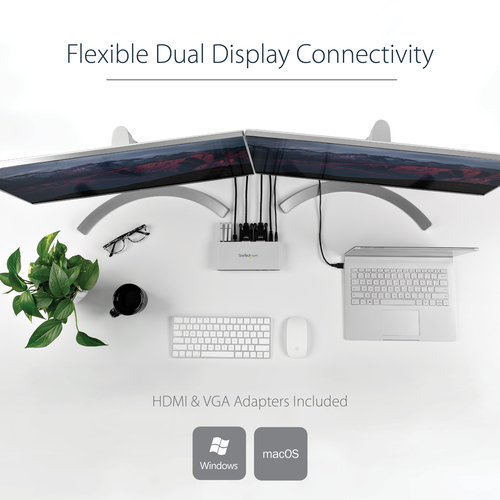

Laptop Docking Station | Mac & Windows® | DVI to VGA & HDMI® Adapters | 2x Charge PortsThis dual-monitor USB 3.0 docking station turns your laptop into a dual-monitor workstation with flexible setup options.Display FlexibilityThe dual-DVI docking station adds dual-monitor support to your workstation, with resolution support up to 2048x1152. With more screen space, you can simultaneously access multiple applications and reference material on one display while composing on the other. To ensure the USB 3.0 dock supports a variety of displays, two display adapters (DVI to VGA and DVI to HDMI) are included.Powerful Connections and Fast Device ChargingTransform your laptop into a workstation that supports all of your peripherals. This docking station features five USB 3.0 (USB 3.1 Gen 1) ports. The two front-facing USB ports are USB fast-charge ports (USB Battery Charging Specification 1.2). These accessible ports charge your mobile devices faster than standard USB ports, with or without your laptop connected to the dock. The dock also has a GbE port, headset jack and separate 3.5 mm audio and mic ports, so you’ll have all the connections you need.Save Desktop SpaceYou can free up valuable desk space by positioning the dock vertically on your work surface using the included (optional) stand.The USB3SDOCKDD is backed by a 3-year StarTech.com warranty and free lifetime technical support.The StarTech.com Advantage

ON ORDER

RRP Price €152.05

Specifications

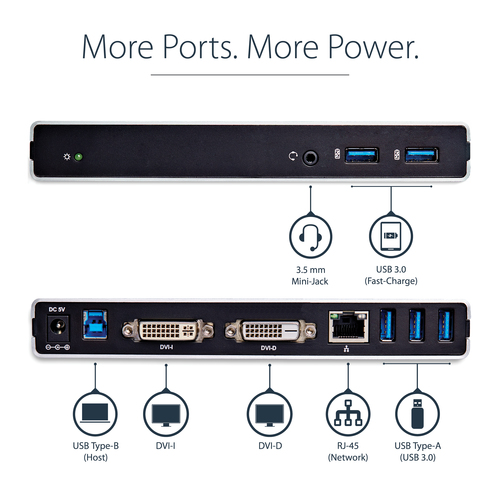

Ports & interfaces

Connectivity technology
Wired
Host interface
USB 3.2 Gen 1 (3.1 Gen 1) Type-B
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
5
DVI-I ports quantity
1
DVI-D ports quantity
1
Combo headphone/mic port
Yes
Headphone outputs
1
Headphone connectivity
3.5 mm
DC-in jack
Yes

Network

Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Ethernet LAN data rates
10,100,1000 Mbit/s
Wake-on-LAN ready
Yes
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Auto MDI/MDI-X
Yes
Full duplex
Yes

Performance

Card reader integrated
No
Data transfer rate
5 Gbit/s
Maximum analog resolution
2048 x 1152 pixels
Product colour
Black, Silver
LED indicators
Power
Charging function
Yes
UASP support
Yes
Rubber feet
Yes
Housing material
Aluminium, Plastic
Brand compatibility
Any brand
Certification
CE, FCC, REACH

Power

Power source type
AC
AC input voltage
100 - 240 V
Input current
0.8 A
Output voltage
5 V
Output current
4 A
Power consumption (typical)
20 W
Power plug type
Type M
Compatible power plug types
AU, EU, UK, US

Software

Windows operating systems supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
Mac compatibility
Yes
Mac operating systems supported
Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 13.0 Ventura
Other operating systems supported
ChromeOS

Operational conditions

Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
5 - 85%

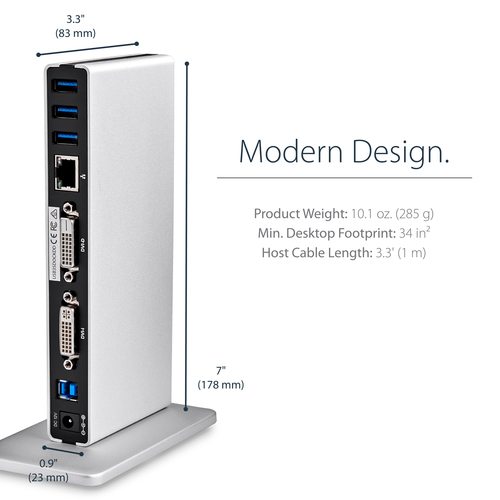

Weight & dimensions

Width
23 mm
Depth
83 mm
Height
178 mm
Weight
285 g

Packaging data

Package width
255 mm
Package depth
186 mm
Package height
95 mm
Package weight
1.02 kg

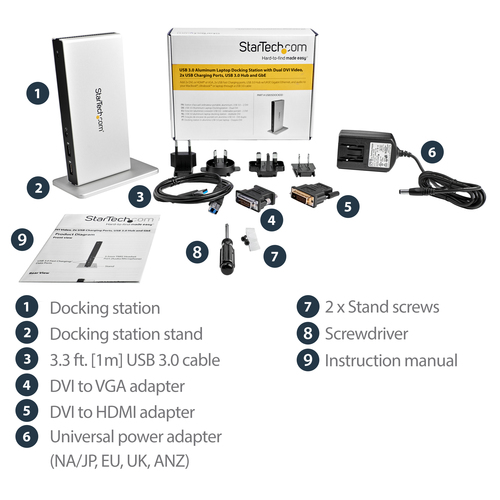

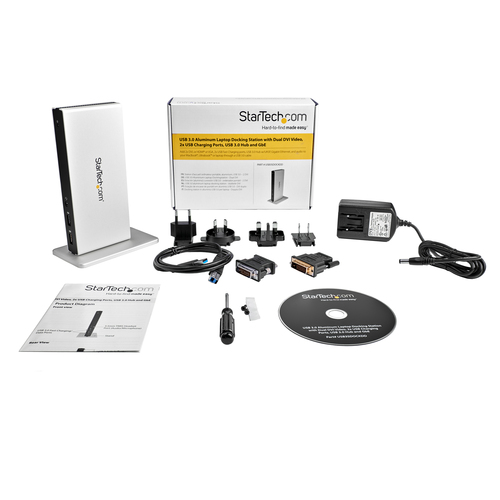

Packaging content

Cables included
USB
AC adapter included
Yes
Manual
Yes
Drivers included
Yes
Interface adapters included
DVI-I male - HDMI female, DVI-I male - VGA female
Stand included
Yes

Technical details

Compliance certificates
RoHS

Logistics data

Products per master (outer) case
10 pc(s)
Master (outer) case width
357 mm
Master (outer) case length
415 mm
Master (outer) case height
251 mm
Harmonized System (HS) code
84733020

Other features

Cable length
1 m
Chipset
DisplayLink - DL-3900, Genesys Logic - GL3520
USB data transfer rates
12,480,5000 Mbit/s
