USBA2DPGB - Accessories by StarTech.com

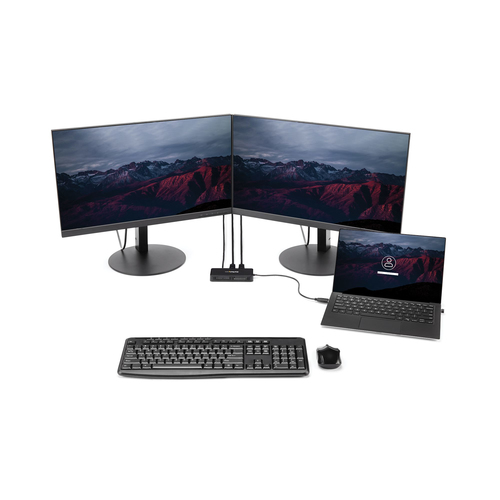

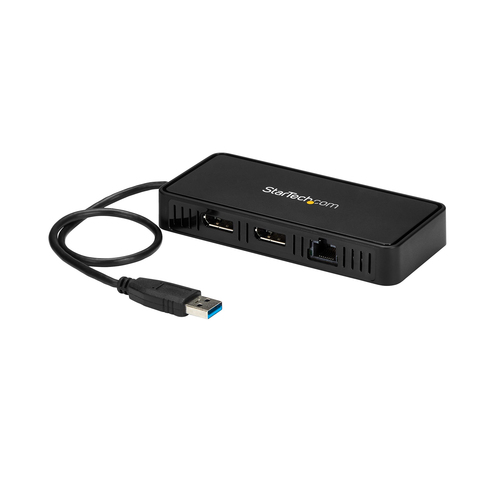

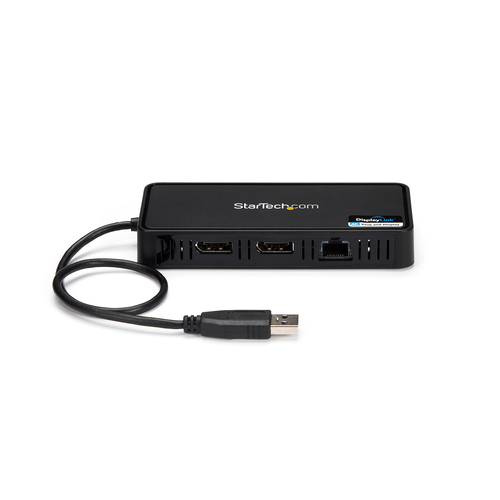

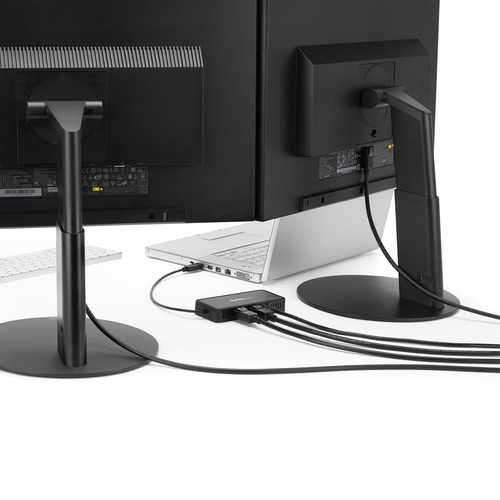

Portable Docking Station | USB 3.0 | Mac & Windows® | TAA CompliantThis USB to Dual DisplayPort Mini Dock provides your USB 3.0 laptop with connectivity for dual 4K 60 Hz monitors and Gigabit LAN - enabling you to quickly harness dual-display productivity and network connectivity.Increase Your Productivity with Two 4K MonitorsThe dual DisplayPort adapter adds two DP video outputs to your USB laptop, with resolution support up to 4K. Working on two monitors increases your productivity by giving you more screen space. You can simultaneously access multiple applications and reference material on one display while composing on the other.Access Hardwired Networks with a GbE PortEthernet ports on modern laptops are uncommon, and wireless networks are less secure and less reliable than a hardwired connection. With the GbE port on this portable docking station that features an Ethernet adapter you can access wired LANs even if your USB 3.0 laptop doesn’t have an Ethernet port.Maximize Portability with a Miniature Docking StationThe dock features a compact design that's perfect for business professionals who need portable office desk accessories for traveling between multiple office locations, or shared workspaces.The USBA2DPGB is TAA compliant and backed by a 3-year StarTech.com warranty and free lifetime technical support.The StarTech.com Advantage

ON ORDER

RRP Price €116.58

Specifications

Ports & interfaces

Connectivity technology
Wired
Host interface
USB 3.2 Gen 1 (3.1 Gen 1) Type-A
DisplayPorts quantity
2
Microphone in
No

Network

Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Ethernet LAN data rates
10,100,1000 Mbit/s
Wake-on-LAN ready
Yes
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Auto MDI/MDI-X
Yes
Full duplex
Yes

Performance

Card reader integrated
No
Data transfer rate
5 Gbit/s
Maximum digital resolution
4096 x 2160 pixels
Number of displays supported
2
Product colour
Black
UASP support
No
Brand compatibility
Any brand
Certification
CE, FCC, TAA

Power

Power source type
USB

Software

Windows operating systems supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64
Mac compatibility
Yes
Mac operating systems supported
Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 13.0 Ventura

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-10 - 60 °C
Operating relative humidity (H-H)
10 - 90%

Weight & dimensions

Width
58 mm
Depth
130 mm
Height
20 mm
Weight
126 g

Packaging data

Package width
200 mm
Package depth
114 mm
Package height
38 mm
Package weight
215 g

Packaging content

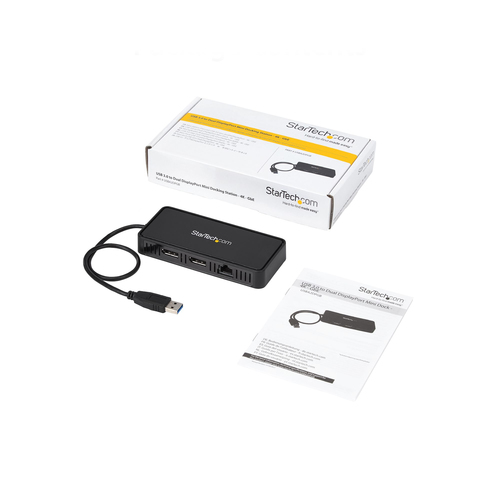

Quick start guide
Yes

Technical details

Compliance certificates
RoHS

Logistics data

Products per master (outer) case
20 pc(s)
Master (outer) case width
220 mm
Master (outer) case length
415 mm
Master (outer) case height
255 mm
Harmonized System (HS) code
84733020

Other features

Cable length
0.14 m
Chipset
DisplayLink - DL-6950
