WSP-Q40GLR4L-ST - Cables & Adaptors by StarTech.com

Name: StarTech.com Cisco WSP-Q40GLR4L Compatible QSFP+ Module - 40GBASE-LR4 - 40GbE Single Mode Fiber SMF Optic Transceiver - 40GE Gigabit Ethernet QSFP+ -...
Brand: StarTech.com
SKU: WSP-Q40GLR4L-ST
Price: 946.39 EUR
Availability: OutOfStock

40 Gbps | Single Mode Fiber | LC | 2 km (1.2 mi) | Lifetime Warranty

The WSP-Q40GLR4L-ST is a Cisco WSP-Q40GLR4L compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco brand switches and routers. It delivers dependable 10 GbE connectivity over fiber cable, for 10GBASE-LR4 compliant networks, with a maximum distance of up to 2 km (1.2 mi).

Technical Specifications:

• Wavelength: 1270nm to 1330nm
• Maximum Data Transfer Rate: 40 Gbps
• Type: Single Mode
• Connection Type: LC Connector
• Maximum Transfer Distance: 2 km (1.2 mi)
• MTBF: 95,832,027 hours
• Power Consumption: Low power consumption
• Digital Diagnostics Monitoring (DDM): Yes

This QSFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.

The StarTech.com Advantage

ON ORDER

RRP Price €946.39

Specifications

Performance

SFP transceiver type

Fiber optic

Maximum data transfer rate

40000 Mbit/s

Interface type

QSFP+

Single-mode fiber (SMF) supported

Yes

Multi-mode fiber (MMF) supported

Fiber optic connector

SFP transceiver standard

IR4

Maximum transfer distance

2000 m

Wavelength

1330 nm

Digital Diagnostics Monitoring (DDM)

Yes

Features

Product colour

Silver

Hot-swap

Yes

Mean time between failures (MTBF)

95832027 h

Brand compatibility

Cisco

Compatible products

WSP-Q40GLR4L

Weight & dimensions

Width

122 mm

Depth

18.3 mm

Height

8.5 mm

Weight

49 g

Packaging content

Quantity per pack

1 pc(s)

Packaging data

Package width

120 mm

Package depth

205 mm

Package height

35 mm

Package weight

60 g

Logistics data

Master (outer) case width

120 mm

Master (outer) case length

205 mm

Harmonized System (HS) code

85369010

Master (outer) case height

35 mm

Products per master (outer) case

1 pc(s)

Description

Manufacturer

StarTech.com

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

0.049 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download

Accessories

No Accessories Found!

License

No License Found!

Related Products

Tripp Lite N002-007-GY Cat5e 350 MHz Molded (UTP) Ethernet Cable (RJ45 M/M), PoE - Gray, 7 ft. (2.13 m) Cables & Adaptors

This gray Category 5e (Cat5e) Ethernet cable has two standard RJ45 molded male connectors featuring integral strain relief. The cable is manufactured from PVC 4-pair stranded UTP and is rated for 350 MHz/1 Gbps communication. All cables are offered in a variety of lengths and colors for all category 5 (Cat5) and 5e cabling needs. Snagless Cat5e Ethernet cables are also available.

€1.94

Tripp Lite U436-06N-GB-C USB-C to Gigabit Network Adapter with USB-C PD Charging - Thunderbolt 3, Black Cables & Adaptors

USB to Ethernet Converter Connects to Your Device’s USB-C or Thunderbolt 3 PortThis USB to LAN converter expands the potential of your tablet, laptop, Chromebook, MacBook, smartphone or PC’s USB-C or Thunderbolt 3 port. It’s ideal for connecting to a wired Gigabit Ethernet network or powering and charging a PD Charging-compliant mobile device.Accesses a Wired Gigabit Ethernet NetworkThe RJ45 port offers access to a Gigabit Ethernet network when no Wi-Fi is available or when a wired connection offers faster speeds. Connect using a UTP cable (sold separately), and enjoy true 10/100/1000 Mbps Ethernet speeds for fast data transfers.Charges a Connected Device with up to 60WThe USB-C Power Delivery (PD) port provides power and charging to the PD Charging-compliant device (such as a MacBook, Chromebook or Android smartphone) the USB-C network adapter is connected to. Connect the device’s AC wall charger to the USB-C PD port, which supports power input up to 60W.Built-In USB-C Cable Connects in Either DirectionConnect the reversible USB-C plug to your source device’s USB-C or Thunderbolt 3 port. The fumble-free USB-C plug connects in either direction to ensure fast, easy connection every time.Ready to Use Right Out of the PackageThe plug-and-play USB to LAN converter requires no software, drivers or external power. The compact unit fits easily into a pocket, briefcase or laptop bag for connecting on the go. Plug it into your laptop for instant network connection.3-Year Warranty and Environmentally Responsible DesignThe U436-06N-GB-C comes with a 3-year warranty. It’s manufactured in compliance with strict RoHS specifications, reflecting commitment to environmental responsibility.Note: To prolong the use of the product, it is recommended to disconnect the unit from the source and power source when not in use

€42.56

Peplink ACW-411 network splitter Black Cables & Adaptors

Connects to Console Port using RJ45Software Reset, Serial Connectivity

€17.10

Tripp Lite N506-15M Duplex Multimode 50/125 Fiber Patch Cable (SC/SC), 15M (50 ft.) Cables & Adaptors

This 15-meter multimode duplex Fibre Channel SC/SC Ethernet cable is manufactured from 50/125 zipcord fiber. The cable has SC connectors on each end, a PVC jacket and is FDDI and OFNR rated. 50/125 Duplex multimode fiber is most commonly used in Fibre Channel applications. It is backward compatible with 62.5 micron fiber and built-in headroom for future applications. The cable provides higher bandwidth optimized for Gigabit and 10 Gbps networks as well. Also available in 1, 2, 3, 5, 10, 30 and 50 meter lengths. Search "N506-" to bring up all lengths. Also search "N516-" for SC-LC cables, and "N520-" for LC-LC cables.

€24.18

Tripp Lite UR024-06N Universal Reversible USB 2.0 Extension Cable (Reversible A to A), 6-in. (15.24 cm) Cables & Adaptors

6 in., USB 2.0 A-Male to A-Female Extension, with Universal / Reversible "A" Male connectorUSB 2.0 compliant, to 480Mbps transfer ratesBackward compatible with previous USB generationsGold plated contacts and molded ends provide a lifetime of use28AWG Data Pair, 24AWG Power pair

€2.61

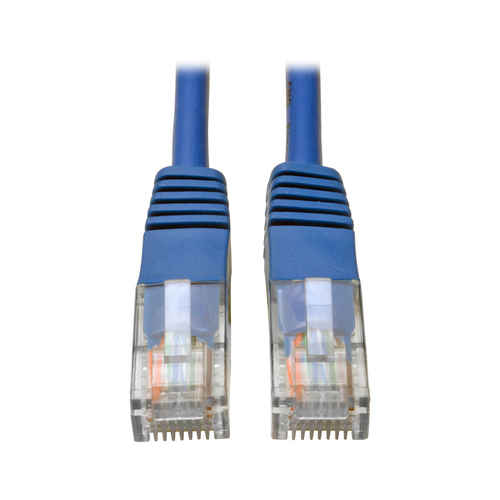

Tripp Lite N002-003-BL Cat5e 350 MHz Molded (UTP) Ethernet Cable (RJ45 M/M), PoE - Blue, 3 ft. (0.91 m) Cables & Adaptors

This blue Category 5e (Cat5e) Ethernet cable has two standard RJ45 molded male connectors featuring integral strain relief. The cable is manufactured from PVC 4-pair stranded UTP and is rated for 350 MHz/1 Gbps communication. All cables are offered in a variety of lengths and colors for all category 5 (Cat5) and 5e cabling needs. Snagless Cat5e Ethernet cables are also available.

€1.32

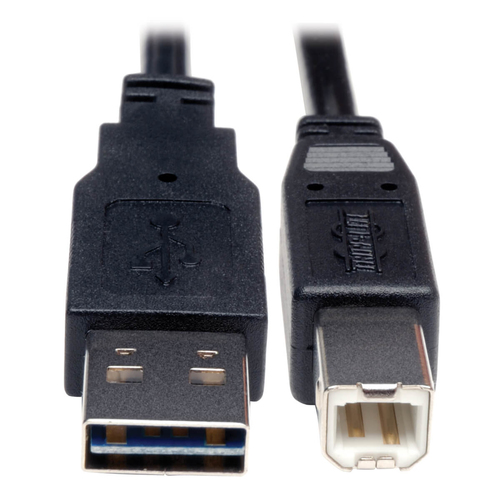

Tripp Lite UR022-003 Universal Reversible USB 2.0 Cable (Reversible A to B M/M), 3 ft. (0.91 m) Cables & Adaptors

The UR022-003 USB 2.0 A/B device cable with Universal / Reversible "A" connector meets or exceeds USB 2.0 specifications. Backward compatible with older USB 1.1 applications as well. USB 2.0 cabling includes superior foil shielding for reliable, error-free data communications. The data transfer rates of USB 2.0 (up to 480 Mbps) make them perfect for multimedia applications. Features nickel-plated connectors and gold-plated copper contacts for superior conductivity. The cable is manufactured with molded connectors and integral strain relief for extra durability and long life.

€3.28

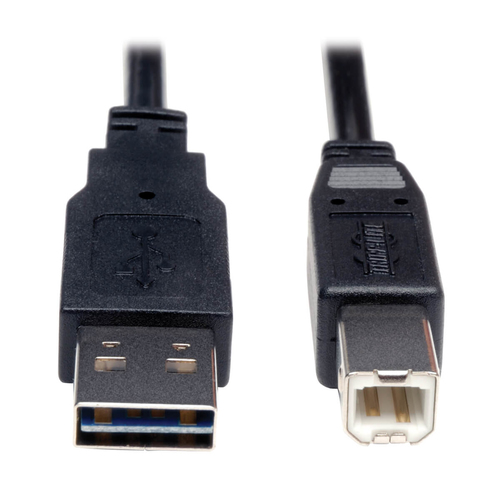

Tripp Lite UR022-001 Universal Reversible USB 2.0 Cable (Reversible A to B M/M), 1 ft. (0.31 m) Cables & Adaptors

The UR022-001 USB 2.0 A/B device cable with Universal / Reversible "A" connector meets or exceeds USB 2.0 specifications. No guessing on how to plug into the computer or hub port because it connects in either direction. Backward compatible with older USB 1.1 applications as well. USB 2.0 cabling include superior foil shielding for reliable, error-free data communications. The data transfer rates of USB 2.0 (up to 480 Mbps) make them perfect for multimedia applications. Features nickel-plated connectors and gold-plated copper contacts for superior conductivity. The cable is manufactured with molded connectors and integral strain relief for extra durability and long life.

€2.43

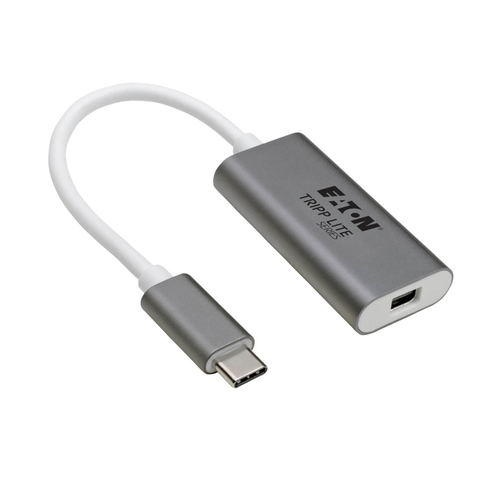

Tripp Lite U444-06N-MDP-AL USB-C to Mini Displayport 4K 60Hz Adapter with Alternate Mode - DP 1.2 Cables & Adaptors
