X50V8U3 BLACK - Computer Systems by Shuttle

X50V8U3 BLACK - Computer Systems by Shuttle

Name: Shuttle All-In-One Barebone X50V8U3, 15.6" Single-Touch-Screen (resistive),Intel Core i3-10110U, Wifi, IP54, fanless, 24/7 permanent operation
Brand: Shuttle
SKU: X50V8U3 BLACK
Price: 709.49 EUR
Availability: OutOfStock

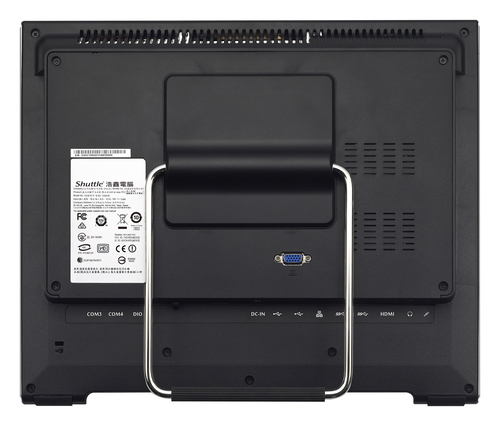

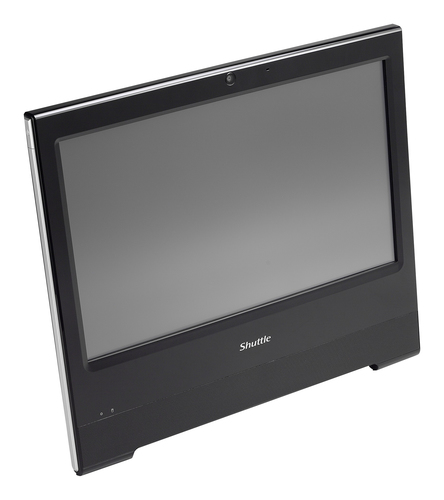

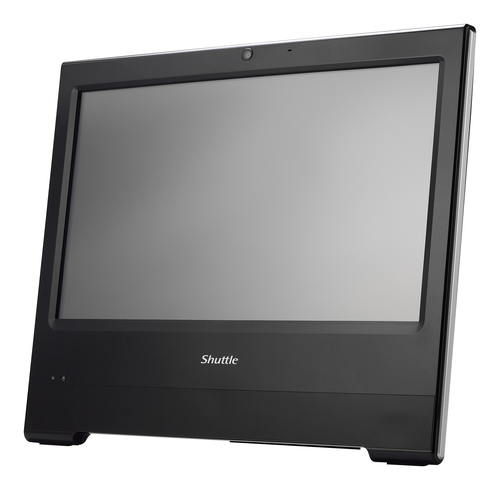

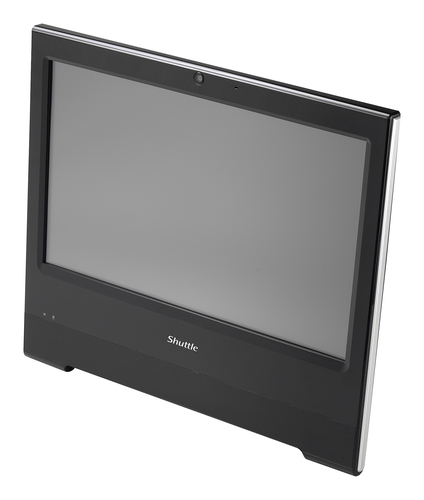

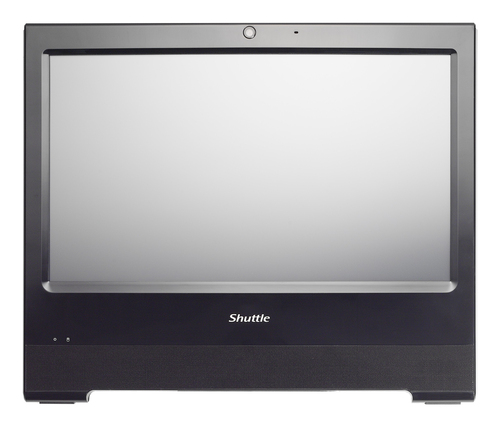

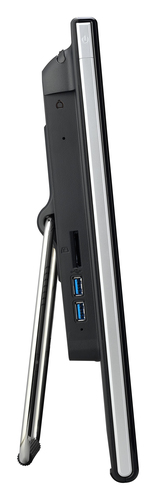

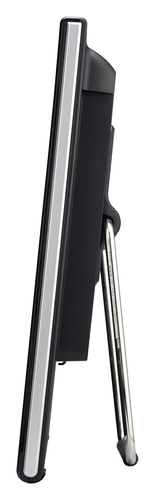

The Shuttle XPC all-in-one X50V8U3 is the latest addition to the X50 Series and is powered by an Intel ULV processor of the 10th generation "Comet Lake". The modern processor architecture helps improve on power consumption and computing power. Thanks to its passive cooling, the system is virtually noiseless, maintenance-free and approved for 24/7 nonstop operation. Particularly suitable for vertical applications is the arrangement of connectors at the bottom and the IP54 compliant front panel which is dust-protected and protected from splashing of water.

ON ORDER

RRP Price €709.49

Specifications

Processor

Processor manufacturer

Intel

Processor family

Intel® Core™ i3

Processor generation

10th gen Intel® Core™ i3

Processor model

i3-10110U

Processor cores

Processor threads

Processor boost frequency

4.1 GHz

Processor frequency

2.1 GHz

Built-in processor

Yes

Processor lithography

14 nm

Processor cache

4 MB

Thermal Design Power (TDP)

15 W

CPU configuration (max)

Memory

Memory slots type

SO-DIMM

Maximum internal memory

64 GB

Supported memory clock speeds

2666 MHz

Supported memory types

DDR4-SDRAM

Memory channels

Dual-channel

Memory voltage

1.2 V

Non-ECC

Yes

Storage

Supported storage drive types

HDD & SSD

Storage drive sizes supported

2.5"

SSD form factor

2.5"

Storage drive interface

Serial ATA III

Number of storage drives supported

Card reader integrated

Yes

Compatible memory cards

SD, SDHC, SDXC

Graphics

On-board graphics card

Yes

Graphics card family

Intel

On-board graphics card model

Intel® UHD Graphics

Maximum resolution

3840 x 2160 pixels

Display

Display diagonal

39.6 cm (15.6")

Display resolution

1366 x 768 pixels

Touchscreen

Yes

HD type

Aspect ratio

16:9

Display brightness

220 cd/m²

Panel type

LCD

Audio

Built-in speaker(s)

Yes

Number of speakers

RMS rated power

2 W

Network

Top Wi-Fi standard

Wi-Fi 5 (802.11ac)

Wi-Fi standards

802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)

WLAN controller model

Realtek RTL8821CE

Ethernet LAN

Yes

Wi-Fi

Yes

Bluetooth

Yes

Bluetooth version

4.2

Ports & interfaces

USB 2.0 ports quantity

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

HDMI ports quantity

HDMI version

1.4a

VGA (D-Sub) ports quantity

Microphone in

Yes

Headphone outputs

Ethernet LAN (RJ-45) ports

DC-in jack

Yes

Design

Chassis type

All-in-One

Product colour

Black

Cooling type

Passive

On/off switch

Yes

LED indicators

HDD, Power

Cable lock slot

Yes

Cable lock slot type

Kensington

VESA mounting

Yes

Product type

All-in-One PC barebone

Performance

BIOS type

AMI

Trusted Platform Module (TPM)

Yes

Trusted Platform Module (TPM) version

2.0

Processor special features

Embedded options available

Intel Virtualization Technology for Directed I/O (VT-d)

Yes

Intel VT-x with Extended Page Tables (EPT)

Yes

Intel 64

Yes

Idle States

Yes

Enhanced Intel SpeedStep Technology

Yes

Intel Flex Memory Access

Yes

Intel Trusted Execution Technology

Execute Disable Bit

Yes

Intel TSX-NI

Intel Stable Image Platform Program (SIPP)

Intel Clear Video Technology

Yes

Intel Virtualization Technology (VT-x)

Yes

Logistics data

Harmonized System (HS) code

84713000

Software

Windows operating systems supported

Windows 10, Windows 11

Linux operating systems supported

Yes

Operating system installed

Power

Power supply type

External AC adapter

Power supply

65 W

Number of power supply units

AC input voltage

100 - 240 V

AC input frequency

50 - 60 Hz

AC adapter output voltage

19 V

AC adapter output current

3.42 A

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

10 - 90%

Weight & dimensions

Width

391 mm

Depth

42 mm

Height

327 mm

Weight

3.5 kg

Package weight

4.2 kg

Packaging content

Power cord included

Yes

AC adapter included

Yes

Quick start guide

Yes

Drivers included

Yes

Description

Manufacturer

Shuttle

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

3.5 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download

Accessories

No Accessories Found!

License

No License Found!
