Name: StarTech.com Brocade XG-LR Compatible SFP+ Module - 10GBASE-LR - 10GbE Single Mode Fiber SMF Optic Transceiver - 10GE Gigabit Ethernet SFP+ - LC 10km...
Brand: StarTech.com
SKU: XG-LR-ST
Price: 308.36 EUR
Availability: OutOfStock

10 Gbps | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty

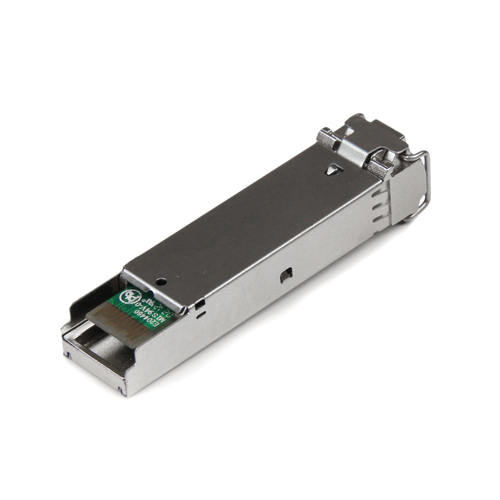

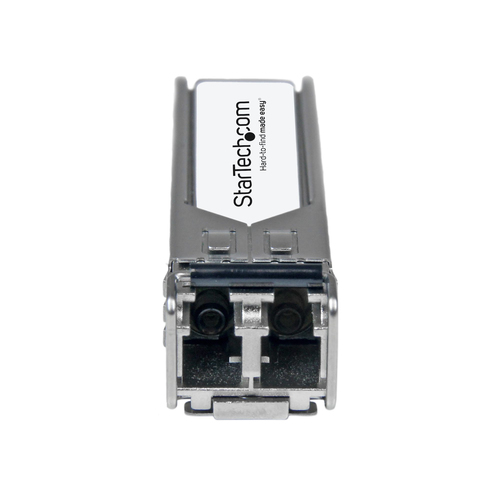

The XG-LR-ST is a Brocade XG-LR compatible fiber transceiver module that has been designed, programmed and tested to work with Brocade brand switches and routers. It delivers dependable 10 GbE connectivity over fiber cable, for 10GBASE-LR compliant networks, with a maximum distance of up to 10 km (6.2 mi).

Technical Specifications:

• Wavelength: 1310nm
• Maximum Data Transfer Rate: 10 Gbps
• Type: Single Mode
• Connection Type: LC Connector
• Maximum Transfer Distance: 10 km (6.2 mi)
• MTBF: 1,386,624,697 hours
• Power Consumption:
• Digital Diagnostics Monitoring (DDM): Yes

This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.

The StarTech.com Advantage

ON ORDER

RRP Price €308.36

Specifications

Performance

SFP transceiver type

Fiber optic

Maximum data transfer rate

10000 Mbit/s

Interface type

SFP+

Single-mode fiber (SMF) supported

Yes

Multi-mode fiber (MMF) supported

Fiber optic connector

SFP transceiver standard

Maximum transfer distance

10000 m

Wavelength

1310 nm

Fiber ethernet cabling technology

10GBASE

Digital Diagnostics Monitoring (DDM)

Yes

Features

Product colour

Silver

Hot-swap

Yes

Mean time between failures (MTBF)

1386624697 h

Brand compatibility

Brocade

Compatible products

XG-LR

Power

Power consumption (typical)

1.3 W

Certificates

Certification

CE, FCC, UR

Weight & dimensions

Width

58.4 mm

Depth

13.9 mm

Height

13.7 mm

Weight

21 g

Packaging content

Quantity per pack

1 pc(s)

Packaging data

Package width

90 mm

Package depth

115 mm

Package height

31 mm

Package weight

50 g

Logistics data

Master (outer) case width

90 mm

Master (outer) case length

115 mm

Harmonized System (HS) code

85369010

Master (outer) case height

31 mm

Products per master (outer) case

1 pc(s)

Description

Manufacturer

StarTech.com

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

0.021 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download

Accessories

No Accessories Found!

License

No License Found!

Related Products

DA-90505 Cables & Adaptors

€22.37

Digitus HDMI to VGA Converter Cables & Adaptors

Converts an HDMI signal into a VGA signal- Converts video and audio signals from HDMI to VGA- Connect your modern playback devices with older VGA monitors or projectors- No software or driver installation required- No power supply unit requiredThe DIGITUS DA-70461 converts digital HDMI signals into analog VGA signals. Modern playback devices, such as notebooks, Blu-ray players, DVD players, game consoles, etc., can be connected with older VGA monitors or projectors. The converter is also equipped with a 3.5 mm audio jack. Any existing audio signal is converted in parallel. This enables additional audio playback by connecting your speakers or surround sound system.

€9.61

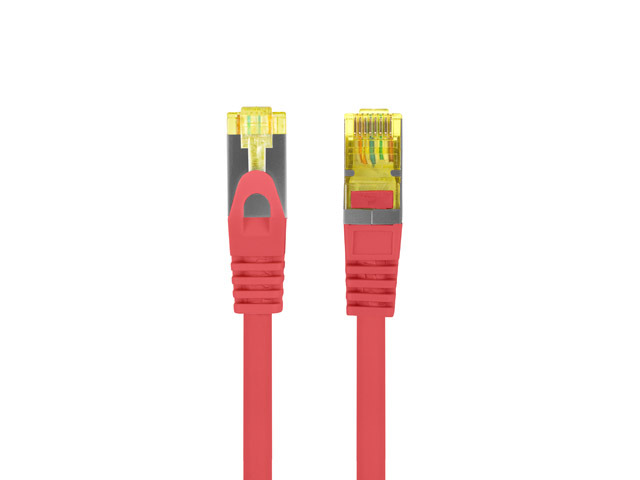

PATCHCORD CAT.6A S/FTP LSZH CU 0.5M RED FLUKE PASSED LANBERG Cables & Adaptors
