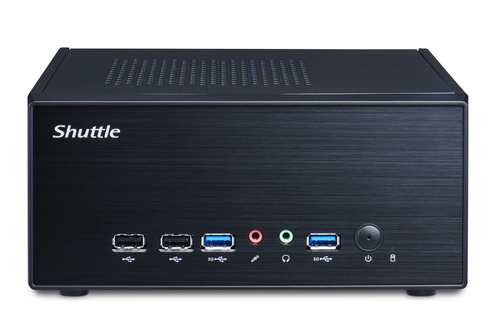

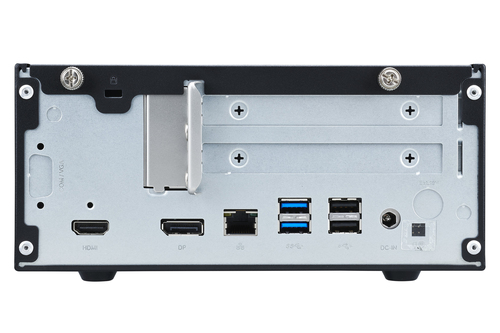

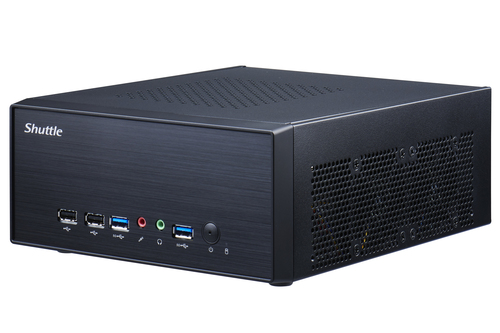

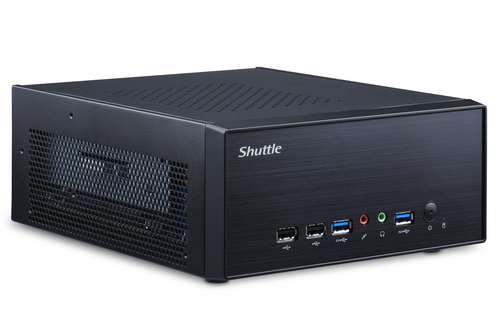

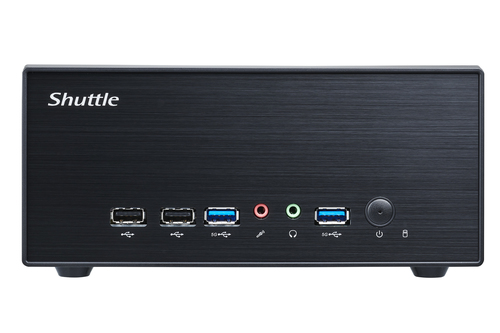

Shuttle XPС slim PC XH510G2 Black Intel H510 LGA 1200 (Socket H5)

The Shuttle XPC slim Barebone XH510G2 is a 4.75-litre PC with two slots for PCI-Express expansion cards. Together with an LGA 1200 Intel Core desktop processor of the Intel Core Gen 10/11 range, this platform is perfectly suited for many professional applica-tions where performance, flexibility and a compact form factor matter. This includes video wall presentations, graphics workstations, media capturing, surveillance, POS, POI as well as network and industrial applications. Even mid-range gaming is possible.

ON ORDER

RRP Price €268.98

Specifications

Processor

Built-in processor
No

Memory

Memory slots type
SO-DIMM
Number of memory slots
2
Maximum internal memory
64 GB
Supported memory clock speeds
2666,2933,3200 MHz
Supported memory types
DDR4-SDRAM
Memory channels
Dual-channel
Non-ECC
Yes

Storage

Supported storage drive types
SSD
Storage drive sizes supported
2.5,M.2
Storage drive interface
M.2, PCI Express, Serial ATA III
Card reader integrated
No

Graphics

On-board graphics card
Yes

Audio

Built-in speaker(s)
No

Network

Ethernet LAN
Yes
Wi-Fi
No
LAN controller
Intel® I219-LM

Ports & interfaces

USB 2.0 ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
HDMI ports quantity
1
HDMI version
2.0a
DisplayPorts quantity
1
DisplayPort version
1.4
Microphone in
Yes
Headphone outputs
1
Ethernet LAN (RJ-45) ports
1
DC-in jack
Yes

Expansion slots

PCI Express slots version
3.0, 4.0
PCI Express x1 slots
1
PCI Express x16 slots
1

Design

Product colour
Black
Cooling type
Active
On/off switch
Yes
LED indicators
HDD, Power
Cable lock slot
Yes
Cable lock slot type
Kensington
VESA mounting
Yes
Panel mounting interface
100 x 75 mm
Product type
PC barebone

Performance

Motherboard chipset
Intel H510
Processor socket
LGA 1200 (Socket H5)
Number of processors supported
1
BIOS type
UEFI AMI
Trusted Platform Module (TPM)
Yes
Trusted Platform Module (TPM) version
2.0
Audio output channels
7.1 channels

Logistics data

Harmonized System (HS) code
84713000

Software

Windows operating systems supported
Windows 10, Windows 11
Linux operating systems supported
Yes
Operating system installed
No

Power

Power supply type
External AC adapter
Power supply
180 W
Number of power supply units
1
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
AC adapter output voltage
19.5 V
AC adapter output current
9.23 A

Operational conditions

Operating temperature (T-T)
0 - 50 °C
Operating relative humidity (H-H)
10 - 90%

Weight & dimensions

Width
250 mm
Depth
200 mm
Height
95 mm
Weight
2.98 kg
Package weight
3.49 kg

Packaging content

Power cord included
Yes
AC adapter included
Yes
Quick start guide
Yes
Drivers included
Yes

Other features

Country of origin
China
