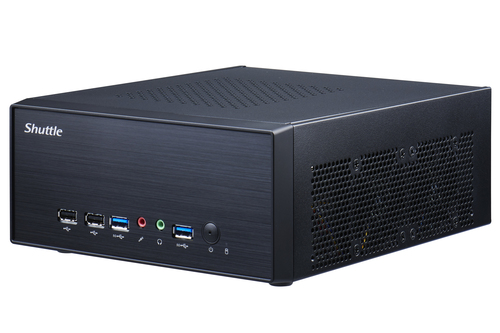

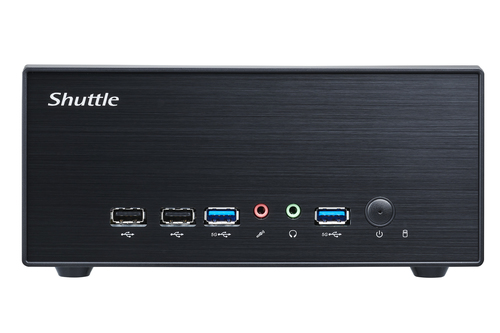

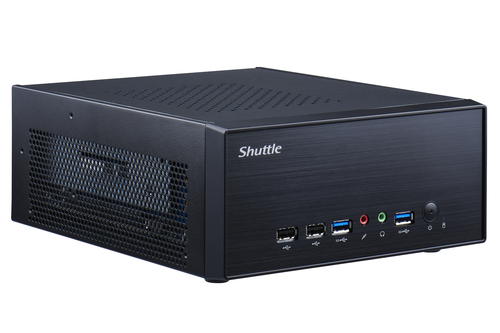

XH610G2 - Computer Systems by Shuttle

The Shuttle XPC slim Barebone XH610G2 is a 4.7-litre PC with two slots for PCI-Express expansion cards. Together with an LGA 1700 Intel Core desktop processor of the Intel Core Gen 12/13/14 range, this platform is perfectly suited for many professional applications where performance, flexibility and a compact form factor matter. This includes video wall presentations, graphics workstations, media capturing, surveillance, POS, POI as well as network and industrial applications. Even mid-range gaming is possible.

ON ORDER

RRP Price €384.69

Specifications

Processor

Processor manufacturer
Intel
Built-in processor
No

Memory

Memory slots type
SO-DIMM
Number of memory slots
2
Maximum internal memory
64 GB
Supported memory clock speeds
5600 MHz
Supported memory types
DDR5-SDRAM
Memory channels
Dual-channel
Memory voltage
1.1 V
Non-ECC
Yes

Storage

Supported storage drive types
HDD & SSD
Storage drive sizes supported
2.5,M.2
Storage drive interface
PCI Express, Serial ATA III
NVMe
Yes

Graphics

On-board graphics card
Yes

Audio

Built-in speaker(s)
No

Network

Ethernet LAN
Yes
Wi-Fi
No
LAN controller
Intel® I219-LM, Intel I226-LM

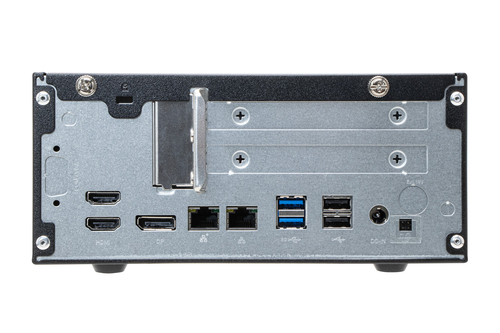

Ports & interfaces

USB 2.0 ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
HDMI ports quantity
2
HDMI version
2.0b
DisplayPorts quantity
1
DisplayPort version
1.4
Microphone in
Yes
Headphone outputs
1
Ethernet LAN (RJ-45) ports
2
DC-in jack
Yes

Design

Chassis type
Desktop
Product colour
Black
Cooling type
Active
On/off switch
Yes
LED indicators
Yes
Product type
PC barebone

Performance

Motherboard chipset
Intel H610
Processor socket
LGA 1700
Number of processors supported
1
BIOS type
UEFI AMI
Trusted Platform Module (TPM)
Yes
Trusted Platform Module (TPM) version
2.0
Audio output channels
7.1 channels
Audio chip
Realtek ALC888S

Technical details

Compliance certificates
BSMI, CB, CE, Federal Communications Commission (FCC), RCM, RoHS, UKCA, VCCI, cTUVus

Logistics data

Harmonized System (HS) code
84733080

Software

Windows operating systems supported
Windows 11
Linux operating systems supported
Yes

Sustainability

Sustainability certificates
ENERGY STAR, ErP

Power

Power supply type
External AC adapter
Power supply
180 W
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
AC adapter output voltage
19.5 V
AC adapter output current
9.23 A

Operational conditions

Operating temperature (T-T)
0 - 50 °C
Operating relative humidity (H-H)
10 - 90%

Weight & dimensions

Width
250 mm
Depth
200 mm
Height
95 mm
Weight
2.98 kg
Package weight
3.49 kg

Packaging content

Power cord included
Yes
AC adapter included
Yes
Quick start guide
Yes
Drivers included
Yes

Other features

Country of origin
China
