Axis 01536-001 network switch Fast Ethernet (10/100) Power over Ethernet (PoE) White

Name: Axis 01536-001 network switch Fast Ethernet (10/100) Power over Ethernet (PoE) White
Brand: Axis
SKU: 01536-001
Price: 14548.92 EUR
Availability: OutOfStock

Ex Connection Rail 8-Port PoE is a high performance PoE switch and 24 V DC power supply for hazardous areas. It is designed to connect explosion-protected network cameras over long distances. The network connection can be realized via optical fiber or copper-bound Ethernet, and is equipped with two SFP ports for fiber. The power supply provides additional power to the cameras heater to extend the temperature range. The Ex d-rated enclosure is made from seawater-resistant copper-free aluminum and is ready for wall mounting.

ON ORDER

SKU: 01536-001

Manufacturer: Axis Axis

RRP Price €14,548.92

Specifications

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity

Basic switching RJ-45 Ethernet ports type

Fast Ethernet (10/100)

Fiber ports quantity

Fiber optic connector

Network

Networking standards

IEEE 802.3at

10G support

Copper ethernet cabling technology

10BASE-T, 100BASE-TX, 1000BASE-SX, 1000BASE-TX

Design

Product colour

White

Housing material

Aluminium

International Protection (IP) code

IP66

Wall mountable

Yes

Power

AC input voltage

100 - 240 V

Power over Ethernet (PoE)

Yes

Power over Ethernet (PoE) power per port

30 W

Operational conditions

Operating temperature (T-T)

-60 - 50 °C

Storage temperature (T-T)

-60 - 50 °C

Operating relative humidity (H-H)

10 - 100%

Weight & dimensions

Width

289 mm

Depth

289 mm

Height

230 mm

Weight

25.4 kg

Certificates

Certification

IEC/EN 60529 IP66, TR CU 012/2011, EN/IEC 60079-0, GOST 31610.0, EN/GOST/IEC 60079-1, EN/IEC 60079-28, GOST 31610.28, EN/GOST/IEC 60079-31, ATEX: II 2 G Ex d IIC [op pr] T5 Gb, II 2 D Ex tb IIIC [op pr] T95°C Db, ATEX TÜV 10 ATEX 7969 X, Ex d IIC [op pr] T5 Gb, Ex tb IIIC [op pr] T95°C Db, IECEx TUR 16.0025X, 1Ex d [op pr] IIC T5 Gb, Ex tb [op pr] IIIC T95°C Db IP66, C T95°C Db IP66, C-DE.AB61.V.00380/19

Logistics data

Harmonized System (HS) code

85176990

Description

Manufacturer

Axis

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

25.4 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download

Accessories

No Accessories Found!

License

No License Found!

Related Products

AXIS T91H61 WALL MOUNT Accessories

AXIS T91H61 WALL MOUNT

€222.77

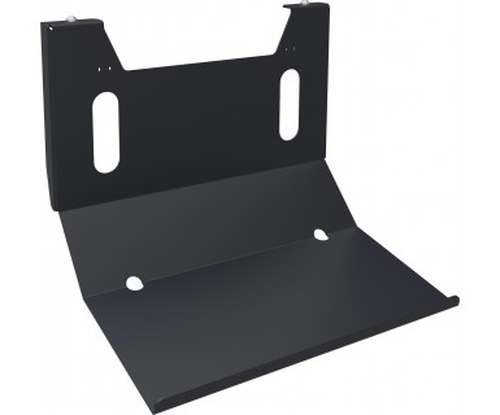

iiyama MD 063B7240 mounting kit Black Accessories

Key-board platform for floor liftsA key-board platform makes it possible to use a keyboard close to your display on the stands.

€91.60

Zebra EC55 handheld mobile computer 12.7 cm (5") 720 x 1280 pixels Touchscreen 173 g Black, Grey, White Accessories

A NEW CATEGORY OF INDIVIDUALLY ASSIGNED ENTERPRISE MOBILE COMPUTERSIntroducing the thinnest, lightest Zebra mobile computer yet — the EC50 WiFi and EC55 WiFi/cellular enterprise mobile computers. Designed to be individually assigned, these devices are always at your workers’ fingertips, ready to work whether your workers are inside your facility or out in the field. You get the best of all worlds — the great smartphone look and feel workers want in their business device, the durability for all-day everyday business, plus all the business features your workers need to drive personal productivity, collaboration and device value to a new high. Mobility DNA tools take ease-of-use, device security and device manageability to a new level. It’s ready for the future with support for payment options and RFID. You get extreme flexibility — in just seconds, the same device that slips into a pocket can turn into a full workstation, a gun-style device that brings extreme comfort to scan intensive tasks, and a two-way radio or a PBX handset for better collaboration via voice and text. The ability to purchase these devices for four years eliminates the complexities of managing different models with different platforms. And the optional gold standard in support is available to keep your devices up, running and in the hands of your workers. The EC50/EC55 — the individually assigned smartphone-style enterprise mobile computer that’s all business.Application performance that never keeps you waitingGet wired-style voice and data application performance with the ultra-powerful advanced SD660 octa-core processor.Android for instant familiarity — and virtually no learning curveAndroid 10 delivers all the benefits of the latest version of Android, and your workers get a device they already know how to use — virtually eliminating training time and adoption curves.Do more with more wireless connectionsStay connected with unmatched, fast and dependable ‘wired-quality’ WiFi connections that deliver near instant application response times with Zebra’s Fusion, 2x2 MU-MIMO support and WorryFree WiFi. Get better Bluetooth peripheral performance with Bluetooth 5.0, which offers twice the speed and four times the range, all with less power. And with integrated Bluetooth and NFC, just tap to read ID cards; pair a printer, and in the near future, complete a purchase.Power every minute of every workdayThe standard battery provides 10 hours of power. For longer shifts, an optional extended battery provides 13 hours of power.Better productivity with a large 5 in. HD screenThe large screen provides plenty of space for information, while multi-touch support allows workers to intuitively interact with applications.Enterprise-class data captureThe optional built-in scanner enables the capture of virtually any barcode in any condition, including Digimarc. And the 13 MP color rear camera makes it easy to capture detailed photos and videos to document proof of condition, proof of return and more.Real business durabilityThe ‘work-worthy’ design is virtually waterproof, drop-proof and dust-proof. Corning Gorilla® Glass® brings maximum scratch-and-impact resistance to two of the most vulnerable device components — the touchpanel and scanner exit window. And the optional protective case provides additional protection if the device is dropped.Better connect your teams with ready-to-use voice solutionsWith Workforce Connect PTT Express, your workers are always just the press of a button away, able to place and receive crystal clear PTT calls over your WiFi network — no extra infrastructure to purchase. Do you want to connect workers indoors and outside? Just activate a PTT Pro subscription and your workers will be up and running in as little as a day. Want your EC50/EC55 devices to double as PBX handsets? With Workforce Connect Voice, you can easily create a custom interface that makes it easy to execute even the most complex telephony functions.Accessorize for successJust place the EC50/EC55 into the powerful workstation cradle to instantly transform the EC50/EC55 into a full workstation, complete with a monitor, keyboard, mouse and more. Or, keep it right at your fingertips with the holster or hand strap.ENTERPRISE-READY MOBILITY DNA — THE MOST EVOLVED AND EXTENSIVE SUITE OF SOFTWARE IMPROVES PRACTICALLY EVERY ASPECT OF THE EC50/EC55Give your workers the easiest data capture experienceWith DataWedge, workers can capture barcodes, photos and NFC data and automatically send properly formatted information to any existing application — no coding required. Multi-Barcode Scanning allows workers to capture multiple barcodes on an item with a single press of the scan button — no need to cover up unwanted barcodes. Workers can put a virtual ‘soft’ scan button right on the display to make scanning even easier with Swipe Assist. And five optional soft keyboards are available to enable faster, easier data entry with Enterprise Keyboard.Improve device and network security — quickly and easilyTurn Android into a business-class operating system with over 100 additional features that improve security and more with Mobility Extensions (Mx). Choose the features and applications your users can access on your devices with Enterprise Home Screen. Easily find lost and misplaced devices with Device Tracker, even if the device is powered down. LifeGuardTM for AndroidTM 1 makes OS security updates easy — schedule and update your devices over the air via your supported EMM/MDM. And you can easily monitor the status of your OS updates on an easy-to-use dashboard.Drive device management time and cost to a new lowWith StageNow, you can prepare a handful or hundreds of devices for use with the right settings, configurations and applications, all with the simple scan of a barcode or tap on an NFC tag. With StageNow’s Restricted Mode, a simple click deactivates the Google Mobile Services (GMS) that come standard with Android, improving device privacy — and you can easily reactivate at any time. With PowerPrecision Console, aging batteries that can no longer hold a full charge are easy to spot and remove — before they cause expensive downtime. And Device Diagnostics tests all main systems to determine if a device can be repaired on site, eliminating a needless trip to the Zebra Repair Center.UNMATCHED TOTAL BENEFIT OF OWNERSHIPMulti-year deployment and supportWhile the EC50/EC55 looks like a smartphone, the similarities stop there. The purpose-built for work EC50/EC55 is guaranteed to be available for sale for four years, versus 18 months for the typical smartphone — eliminating the complexities and cost of managing different models with different platforms. And product support is available for a total of eight years — the four years the product is for sale and an additional four years post sale period.The power of a common Android platformThe EC50/EC55 expands Zebra’s portfolio of enterprise-class Android mobile, vehicle and tablet computers — already considered one of the world’s largest. The shared portfolio platform — including the OS, APIs and Mobility DNA tools — simplifies device management, application portability and IT support, very unlike smartphones, with platforms that typically change with each model.Industry-leading security support for AndroidZebra’s LifeGuard for Android provides fully-controllable security updates for up to eight years. You get access to timely updates to address new and emerging threats; a report that lists eligible devices, the severity of the threat and all the device details you need to create a well-organized update plan; over-the-air remote updating, visibility into update status and more.Cut total cost of ownership (TCO) in halfThe EC50/EC55 enterprise-class device may cost more up front than some consumer smartphones — but in the long run, simplified management, long lifecycles and tools that boost productivity can cut your TCO in half

€1,064.14

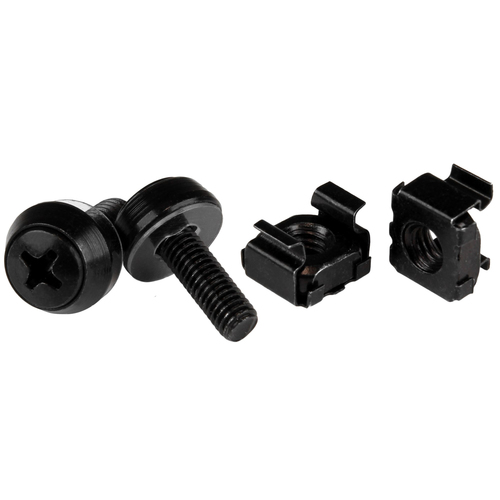

StarTech.com 50 Pack 10-32 Server Rack Cage Nuts and Screws w/Washers - Rack Mount Hardware Kit - Network/IT Equipment Cabinet Clip/Captive Nuts & Bolts for Square Holes - Black - TAA Accessories

Rack Mount Cage Nuts and Screws | 10-32 | BlackVersatile Mounting OptionsThis 50-pack of 10-32 cage nuts and screws are perfect to have on hand for installing rack mount hardware, such as your server, network or audio/video equipment. The design of the captive nuts makes for easy slide-on installation. This TAA compliant product adheres to the requirements of the US Federal Trade Agreements Act, allowing government GSA Schedule purchases.The bulk pack is also suitable for new server rack and cabinet setups - perfect for those times when you drop or misplace a nut or screw. The bulk package ensures that you have enough cage nuts and screws available for all of your square hole rack installations when you need them.Durable DesignThe steel server rack screws and cage nuts come in an all-black finish for a seamless look.CABSCREW1032 is backed by a StarTech.com lifetime warranty and free lifetime technical support.The StarTech.com Advantage

€39.26

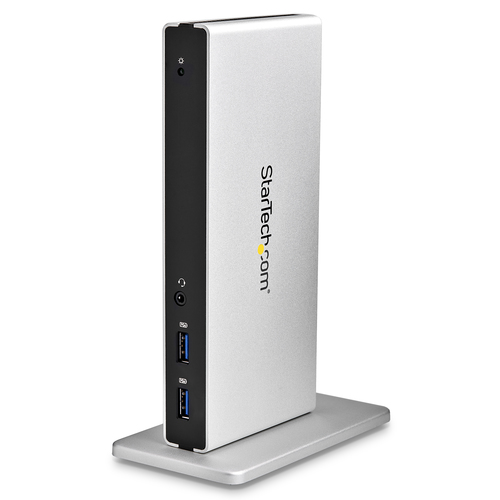

StarTech.com Dual-Monitor USB 3.0 Docking Station with DVI and Vertical Stand Accessories
