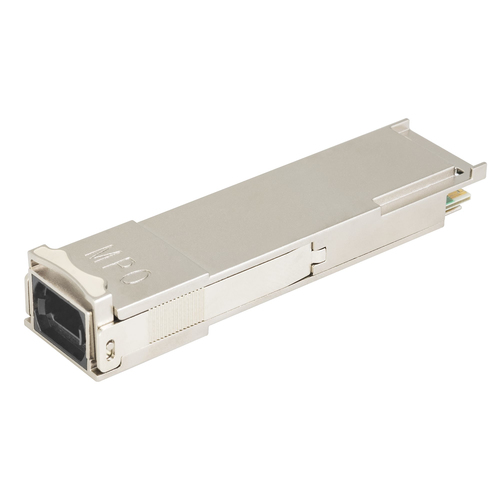

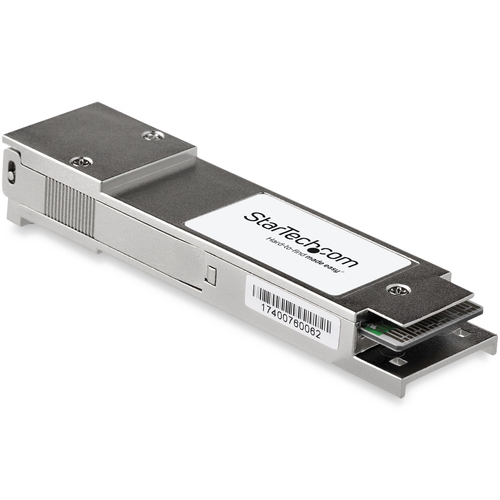

Name: StarTech.com HPE 747698-B21 Compatible QSFP+ Module - 40GBASE-SR4 - 40GbE Multi Mode Fiber Optic Transceiver - 40GE Gigabit Ethernet QSFP+ - MPO 400m...
Brand: StarTech.com
SKU: 747698-B21-ST
Price: 412.09 EUR
Availability: OutOfStock

40 Gbps | Multi Mode Fiber | MPO | 400 m (1312 ft.) | Lifetime Warranty

The 747698-B21-ST is a HPE 747698-B21 compatible fiber transceiver module that has been designed, programmed and tested to work with HPE brand switches and routers. It delivers dependable 40 GbE connectivity over fiber cable, for 40GBASE-SR4 compliant networks, with a maximum distance of up to 400 m (1312 ft.).

Technical Specifications:

• Wavelength: 850nm
• Maximum Data Transfer Rate: 40 Gbps
• Type: Multi Mode Fiber
• Connection Type: MPO Connector
• Maximum Transfer Distance: 400 m (1312 ft.)
• MTBF: 244,610,583 hours
• Power Consumption: Low power consumption
• Digital Diagnostics Monitoring (DDM): Yes

This QSFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & QSFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of QSFP+ modules and direct-attach QSFP+ cables, providing the convenience and reliability you need to ensure dependable network performance.

The StarTech.com Advantage

ON ORDER

RRP Price €412.09

Specifications

Performance

SFP transceiver type

Fiber optic

Maximum data transfer rate

40000 Mbit/s

Interface type

QSFP+

Multi-mode fiber (MMF) supported

Yes

Fiber optic connector

MPO

SFP transceiver standard

SR4

Maximum transfer distance

400 m

Wavelength

850 nm

Fiber ethernet cabling technology

40GBASE

Digital Diagnostics Monitoring (DDM)

Yes

Features

Product colour

Silver

Hot-swap

Yes

Mean time between failures (MTBF)

244610583 h

Brand compatibility

Compatible products

747698-B21

Weight & dimensions

Width

122 mm

Depth

18.6 mm

Height

8.5 mm

Weight

37.5 g

Packaging content

Quantity per pack

1 pc(s)

Packaging data

Package width

120 mm

Package depth

205 mm

Package height

35 mm

Package weight

60 g

Logistics data

Master (outer) case width

120 mm

Master (outer) case length

205 mm

Harmonized System (HS) code

85369010

Master (outer) case height

35 mm

Products per master (outer) case

1 pc(s)

Description

Manufacturer

StarTech.com

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

0.0375 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download

Accessories

No Accessories Found!

License

No License Found!

Related Products

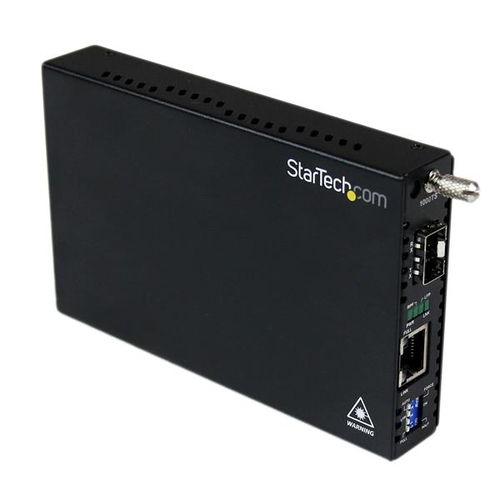

StarTech.com Gigabit Ethernet Fiber Media Converter with Open SFP Slot Cables & Adaptors

Convert and extend a Gigabit Ethernet connection over fiber using the Gigabit SFP of your choiceThe ET91000SFP2 Open SFP Fiber Media Converter converts and extends a Gigabit Ethernet connection over fiber, using the Gigabit SFP of your choice.A versatile solution for connecting an Ethernet (1000Base-T) network to remote network segments over a fiber backbone, the media converter features an open SFP slot that lets you choose the MSA-Compliant Gigabit SFP that best suits your fiber connection mode (single / multi-mode) and distance requirements (see our full line of for compatible solutions).The fiber to Ethernet converter has a durable all-steel chassis and offers simple plug-and-play installation, while support for full-duplex operation and Jumbo Frame support provides efficient network operation.For added versatility, this Gigabit media converter supports standalone operation, or installation into the 20 Slot, ETCHS2U" text="2U Rackmount Chassis (ETCHS2U). For applications where multiple chassis-mounted media converters are required, this Gigabit media converter can be purchased as a ET91000SFP2C" text="Card Module only (ET91000SFP2C).Backed by a StarTech.com 2-year warranty and free lifetime technical support.The StarTech.com Advantage- Install the SFP of your choice with the open SFP slot- Operate as a standalone media converter or install into the ETCHS2U chassis- Ensure maximum up-time with link-loss forwarding and remote status monitoring

€176.10

StarTech.com DB9 RS232 Serial Null Modem Adapter - F/F Cables & Adaptors

Cost-effective way of converting a straight through cable into a null modem cableThe NM9FF Null Modem Adapter features two DB9 female connectors - a cost-saving way to convert a straight through cable into a null modem cable.The DB9F Null modem cable adapter is backed by lifetime warranty and free lifetime technical support.The StarTech.com Advantage

€3.46

StarTech.com 8in HDMI to DVI-D Video Cable Adapter - HDMI Female to DVI Male Cables & Adaptors

Connect a DVI-D device to an HDMI-enabled device using a standard HDMI cableThe HDDVIFM8IN HDMI to DVI-D Video Adapter Cable features one HDMI female connector and one DVI-D male connector, which enables a bi-directional connection between HDMI-capable devices and DVI-D capable devices to overcome compatibility issues.The HDMI to DVI dongle offers 8-inches in cable length, which lessens strain on the connectors and prevents damage to the cable while also reducing the potential of blocking other nearby ports. Designed and constructed to provide a dependable HDMI to DVI connection, this high quality cable is backed by StarTech.com's Lifetime Warranty.The StarTech.com Advantage- The 8-inch dongle format reduces the potential of blocking other available ports and removes strain from the HDMI/DVI connectors- Eliminates the need for multiple cables and clutter by providing bi-directional connectivity between HDMI-capable and DVI-D capable devices- Backed by StarTech.com lifetime warranty

€10.10

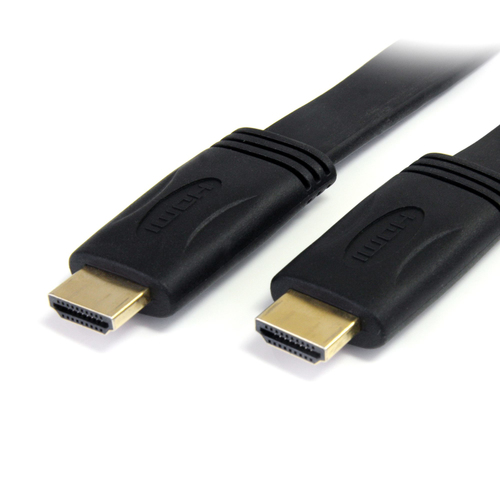

StarTech.com 1,8m Flat High Speed HDMI Cable with Ethernet - Ultra HD 4k x 2k HDMI Cable - HDMI to HDMI M/M~6 ft Flat High Speed HDMI Cable with Ethernet - Ultra HD 4k x 2k HDMI Cable - HDMI to HDMI M/M Cables & Adaptors

Create Ultra HD connections between your HDMI®-enabled devices with minimal clutter; supports Ethernet Data ChannelThe HDMIMM6FL 6-foot Flat High Speed HDMI® Cable with Ethernet supports Ethernet data interconnectivity with compatible HDMI devices and features a flat-shaft design that makes it suitable for in-wall installations or installation under carpet or along baseboards.This high quality HDMI cable fully supports 1080p+ resolutions at up to 120Hz refresh rate, with life-like color. To accommodate the demands of future high definition devices, such as increased resolutions and higher frame rates, this Ultra HD cable supports resolutions up to 4k x 2k.The HDMIMM6FL 6ft HDMI Cable is is backed by StarTech.com's Lifetime Warranty.The StarTech.com Advantage

€9.35

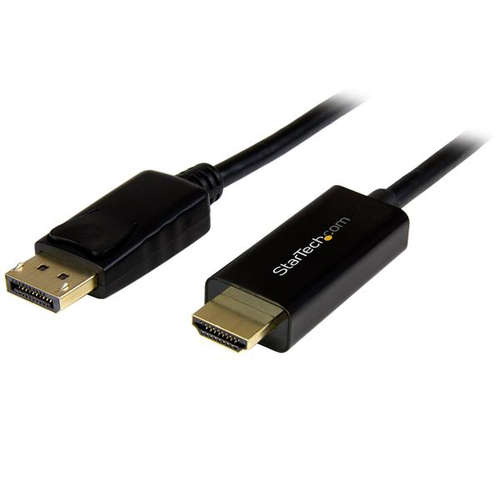

StarTech.com 16ft (5m) DisplayPort to HDMI Cable - 4K 30Hz - DisplayPort to HDMI Adapter Cable - DP 1.2 to HDMI Monitor Cable Converter - Latching DP Connector - Passive DP to HDMI Cord Cables & Adaptors
