Poynting A-PUCK-0012-V1-01 network antenna MIMO directional antenna SMA 7 dBi

Poynting A-PUCK-0012-V1-01 network antenna MIMO directional antenna SMA 7 dBi

Name: Poynting A-PUCK-0012-V1-01 network antenna MIMO directional antenna SMA 7 dBi
Brand: Poynting
SKU: A-PUCK-0012-V1-01
Price: 63.41 EUR
Availability: OutOfStock

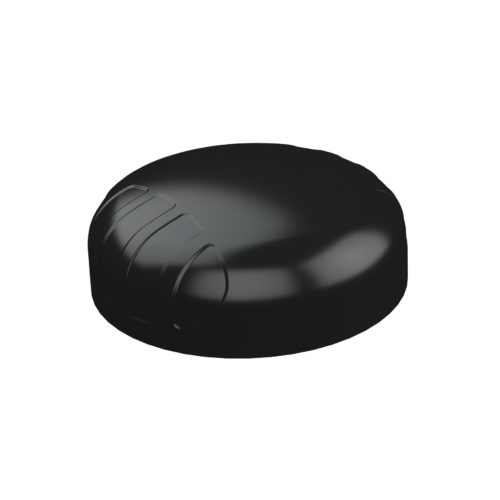

Poynting’s PUCK-12 antenna offers a small profile antenna for use in the IoT/M2M markets. This 2×2 MIMO Wi-Fi (Dualband 2.4GHz & 5GHz) antenna design helps to make implementation as simple as possible with its many mounting options. Due to excellence in engineering and a solid design, this antenna provides exceptional performance for its small size.

The antenna provides 2x dual-band Wi-Fi antennas, providing concurrent 2.4GHz and 5GHz on each antenna, capable of 802.11n, 802.11ac and the new 802.11ax with 2×2 MIMO.

Poynting’s new PUCK antenna range provides easy installation with the multiple mounting options. This includes as standard:

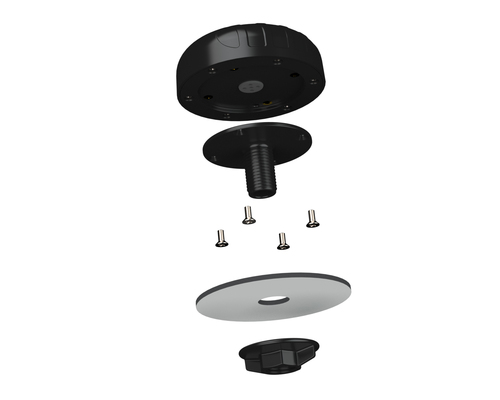

- Spigot Mount – two different lengths included (40mm & 80mm)

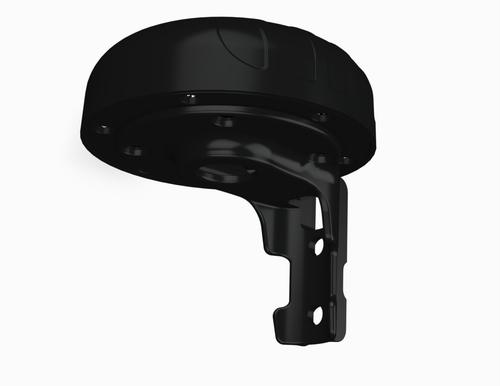

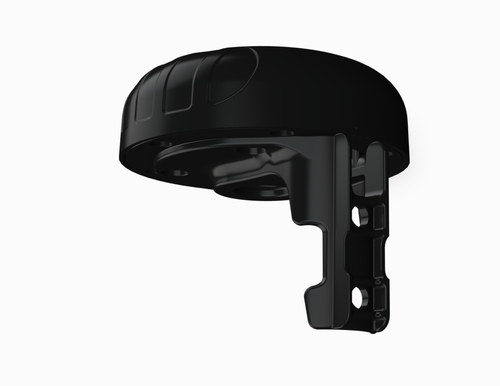

- Vertical Pole mount (inner & outer mounting for smaller and larger poles)

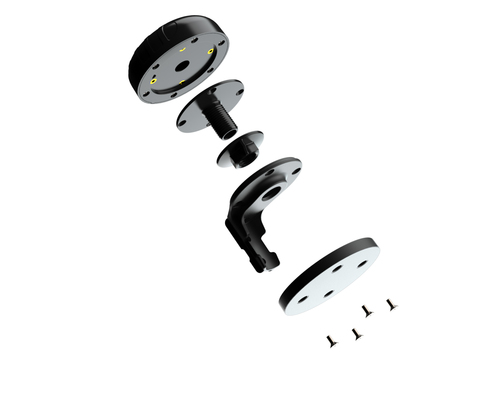

- Horizontal Pole Mount (e.g. marine rails)
- Magnetic Mount

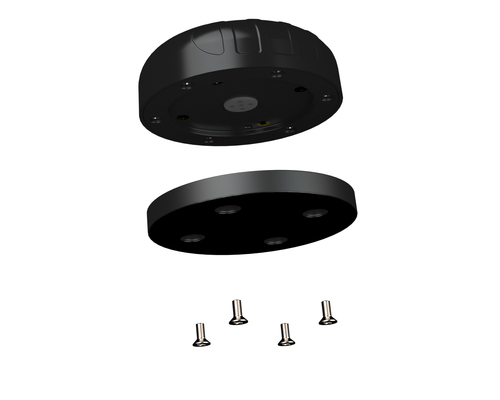

- Surface Mount (Double Sided Tape)

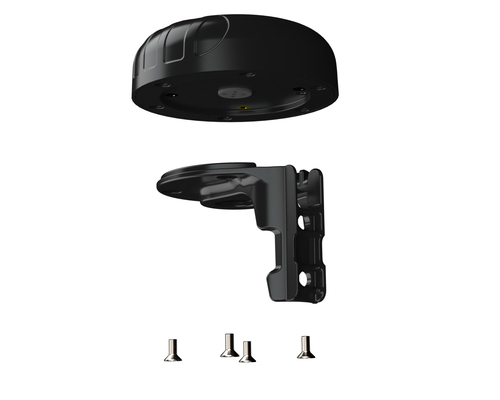

- Wall Mount

ON ORDER

SKU: A-PUCK-0012-V1-01

Manufacturer: Poynting

RRP Price €63.41

Specifications

Performance

Frequency band

2.4 - 2.5/5 - 6 GHz

Impedance

50 Ω

Antenna gain level (max)

7 dBi

Features

Antenna type

MIMO directional antenna

Antenna connector type

SMA

Connector gender

Male

Polarization

Linear polarization

Product colour

Black

Housing material

Acrylonitrile butadiene styrene (ABS)

International Protection (IP) code

IP68

Survival wind speed

220 km/h

Power handling

10 W

Cable length

2 m

Cable type

RTK-031

Purpose

Indoor & outdoor

Certificates

Compliance certificates

RoHS

Certification

CE, EN, CSA, IEC

Operational conditions

Operating temperature (T-T)

-40 - 80 °C

Storage temperature (T-T)

-40 - 80 °C

Operating relative humidity (H-H)

5 - 95%

Storage relative humidity (H-H)

5 - 95%

Weight & dimensions

Height

36 mm

Diameter

9.93 cm

Weight

376 g

Packaging data

Package width

150 mm

Package depth

150 mm

Package height

120 mm

Package weight

507 g

Packaging content

Quantity per pack

1 pc(s)

Mounting kit

Yes

Description

Manufacturer

Poynting

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

0.376 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
