StarTech.com 2-Port Gigabit Midspan PoE+ Injector, 10/100/1000Mbps, PoE+ (802.3af/at), 30W, 1Gbps Ethernet, Wall Mountable, Unmanaged Inline Power Over Ethernet

Supply power and data to two PoE devices over standard Ethernet cabling

This 2-port multi-speed PoE+ injector serves as Power Sourcing Equipment (PSE) and enables Ethernet speeds of 10/100/1000Mbps. This mid-span inline injector can transmit network data and power up to 328ft (100m) for two Powered Devices (PD).

Versatile PoE Injector

Dual-port PoE injector supports the IEEE 802.3af and IEEE 802.3at PSE standards and delivers up to 30W output (52V/0.580A). Connect a remote PoE device to a network at a location where there is no power source, but an Ethernet cable already exists. This includes access points, IP cameras, VoIP phone systems, IPTV and access controls. The flexible design allows for either desktop or surface-mount use.

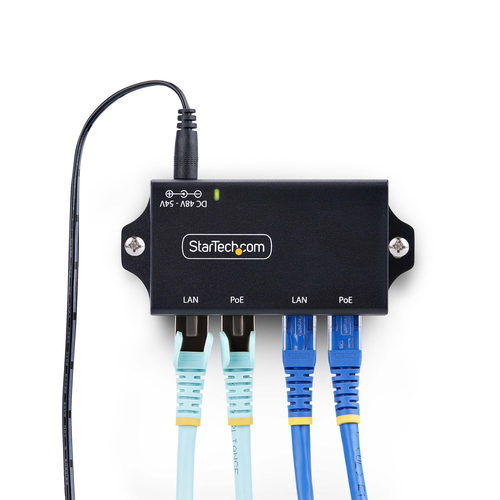

Streamlined Cable Management

All Ethernet cables can be routed from one side of the unit for efficient and organized cable management. The compact design (3.2x1x1.8in(82x25x46mm) ensures straightforward integration into existing network infrastructure, saving space and time during installation.

The StarTech.com Advantage

5 IN STOCK

SKU: AF221CE-POE-INJECTOR

Manufacturer: StarTech.com StarTech.com

RRP Price €93.53

Specifications

Network

Ethernet interface type
Gigabit Ethernet, Fast Ethernet
Ethernet LAN data rates
10,1000,100 Mbit/s
Cabling technology
10/100/1000
Power over Ethernet (PoE)
Yes
Networking standards
IEEE 802.3ab, IEEE 802.3af, IEEE 802.3i, IEEE 802.3u, IEEE 802.3at
Auto MDI/MDI-X
Yes
Web-based management
No
Chipset
IC Plus - IP802AR

Features

Product colour
Black
Housing material
Plastic
Wall mountable
Yes
Surge protection
Yes
Maximum operating distance
100 m
LED indicators
Yes
Jumbo frames support
Yes
Jumbo frames
9000
Auto-negotiation
Yes

Ports & interfaces

Ethernet LAN (RJ-45) ports
4
RJ-45 input ports
2
RJ-45 output ports
2
DC-in jack
Yes

Power

Output power
30 W
AC adapter input voltage
100 - 240 V
Input current
1.5 A
AC adapter output voltage
52 V
Output current
1.25 A
Power consumption (max)
65 W
Total Power over Ethernet (PoE) budget
30 W
Surge protection voltage
2 kV
Power plug type
Type M
Suitable for use in country/location
Europe, United Kingdom

Certificates

Compliance certificates
RoHS

Operational conditions

Operating relative humidity (H-H)
5 - 90%
Storage temperature (T-T)
-10 - 70 °C

Weight & dimensions

Width
46 mm
Depth
102 mm
Height
25 mm
Weight
60 g

Packaging content

Quick installation guide
Yes

Packaging data

Package width
207 mm
Package depth
144 mm
Package height
38 mm
Package weight
105 g

Logistics data

Master (outer) case width
440 mm
Master (outer) case length
420 mm
Master (outer) case height
320 mm
Products per master (outer) case
40 pc(s)

Accessories

License
