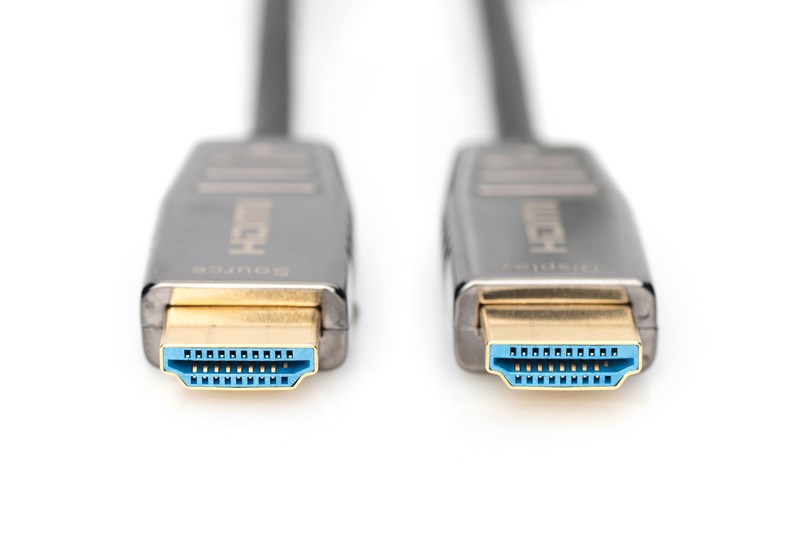

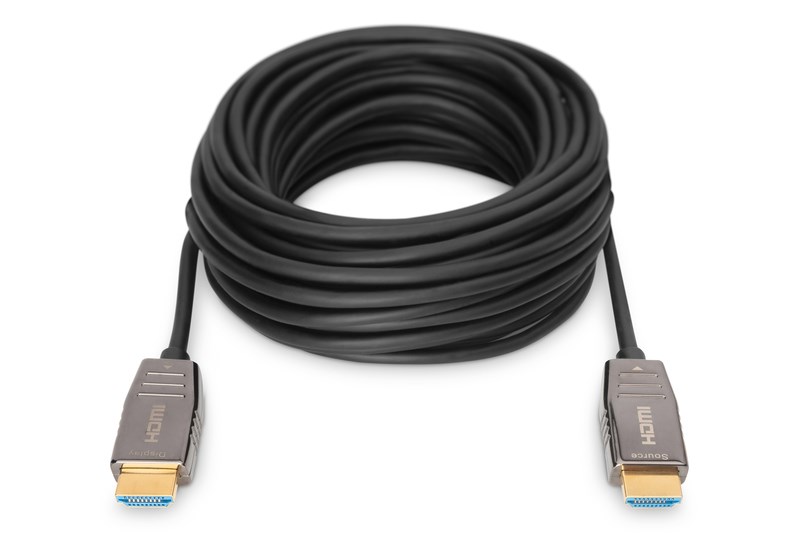

Digitus HDMI AOC Hybrid Fiber Optic Cable, UHD 8K, 30 m

Digitus HDMI AOC Hybrid Fiber Optic Cable, UHD 8K, 30 m

Name: Digitus HDMI AOC Hybrid Fiber Optic Cable, UHD 8K, 30 m
Brand: Digitus
SKU: AK-330126-300-S
Price: 65.77 EUR
Availability: InStock

Transfer of uncompressed video and audio signals in 8K / 60Hz (UHD-2) resolution with 48 Gbps bandwidth.

- Active fiber optic data transfer of up to 48 Gbps - zero frame delay
- Resolutions of up to 8K@60Hz
- Transfers uncompressed HDMI video and audio signals over a distance of 30 m
- Flexible installation with a tight bending radius of 20 mm
- Compact cable with small diameter (OD 4.8 mm)
- Immune to electromagnetic interference (EMI)
- Supports HDR (High Dynamic Range)
- Supports HDCP 2.2 / EDID / CEC / ARC
- Hybrid construction with fiber optic and copper cores
- Loss-free data transfer rate at high transmission speed

This active HDMI AOC Hybrid Fiber Optic Cable is ideally suited for transferring uncompressed video and audio data with high bandwidth over longer distances. The hybrid construction, which uses copper and fiber optic cable, prevents electromagnetic interference. This ensures a loss-free transfer along the entire length of the cable with UHD resolution of up to 8K/60Hz and bandwidths of up to 48 Gbps. The use of fiber optic cable keeps the diameter of this active cable very low and gives it a very tight bending radius and low weight. It is ideal for use in homes, meeting rooms, and conference rooms as well as within buildings — and these are just a few of the possible uses. The simple Plug and Play installation is user-friendly; just plug it in and immediately enjoy optimal image quality. It supports numerous standards such as HDMI 2.1, HDCP 2.2 and HDR. Some of the many audio features supported are ARC, DTS-HD Master Audio and Dolby TrueHD. Cutting edge chip technology makes it possible to transfer the full HDMI signal spectrum while also supporting uncompressed CED and EDID with very low latency.

15 IN STOCK

SKU: AK-330126-300-S

Manufacturer:

Digitus

RRP Price €65.77

Specifications

Features

Cable length

30 m

Connector 1

HDMI Type A (Standard)

Connector 2

HDMI Type A (Standard)

Connector 1 gender

Male

Connector 2 gender

Male

Connector 1 form factor

Straight

Connector 2 form factor

Straight

Product colour

Black

HDMI version

2.1

Yes

Supported graphics resolutions

7680 x 4320

Supported video modes

1080p, 4320p

Dolby technologies

DTS-HD Master Audio, Dolby TrueHD

HDCP

Yes

HDCP version

2.2

Data transfer rate

48 Gbit/s

High Dynamic Range (HDR) supported

Yes

Supported digital audio channels (uncompressed)

Maximum resolution

7680 x 4320 pixels

Maximum refresh rate

60 Hz

Connector contacts plating

Gold

Plug and Play

Yes

Operational conditions

Operating temperature (T-T)

-10 - 80 °C

Operating relative humidity (H-H)

0 - 85%

Weight & dimensions

Package volume

2400 cm³

Packaging data

Package width

200 mm

Package depth

60 mm

Package weight

1 kg

Quantity per pack

1 pc(s)

Logistics data

Country of origin

China

UK Trade Tariff code

85447000

Description

Manufacturer

Digitus

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

WH3 (5–7 Days)

Weight

1 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
