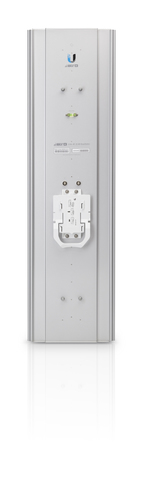

Ubiquiti airMAX ac 2x2 network antenna 22 dBi

Name: Ubiquiti airMAX ac 2x2 network antenna 22 dBi
Brand: Ubiquiti
SKU: AM-5AC22-45
Price: 199.00 EUR
Availability: InStock

The airMAX®ac Sector Antennas feature significant advances in scalability, noise isolation, and beam performance to complement the Rocket™5ac radios in Point‑to‑MultiPoint (PtMP) networks. They are compatible with RocketM5 models; however, optimal performance requires the Rocket5ac.

Breakthrough Design and Performance

The airMAX®ac Sector Antennas feature carrier-class construction with an innovative deflector design and 2x2, dual-polarity performance for airMAX networks.

Superior Noise Immunity

Featuring reduced sidelobes and backlobes, the airMAX®ac Sector Antennas are engineered to reject noise interference in co‑location deployments.

Market-Leading Beam Performance

Compare the diagram of the airMAX®ac Sector Antenna, model AM-5AC22-45, to the diagram of a standard sector antenna, and note the superior noise immunity and beam performance of the AM-5AC22-45.

Industrial-Strength Construction

airMAX®ac Antennas are designed with robust mechanical design for outdoor application use.
Plug and Play Integration

Every airMAX®ac Antenna has a built-in Rocket™mount, so no tools are needed to install the Rocket BaseStation.

2 IN STOCK

SKU: AM-5AC22-45

Manufacturer:

Ubiquiti

RRP Price €199.00

Specifications

Performance

Frequency band

5.1 - 5.8 GHz

Horizontal beam width

45°

Vertical beam width

45°

Antenna gain level (max)

22 dBi

Features

Polarization

Dual polarization

Voltage Standing Wave Ratio (VSWR)

1.5:1

Product colour

White

Mounting

Wall

Weight & dimensions

Width

215 mm

Depth

94 mm

Height

750 mm

Weight

6 kg

Packaging content

Quantity per pack

1 pc(s)

Logistics data

Harmonized System (HS) code

85177100

Description

Manufacturer

Ubiquiti

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

Weight

6 kg

Country of Origin

N/A

Datasheet

No Data Sheet Found!

Accessories

No Accessories Found!

License

No License Found!
