Peplink Mobility 42G network antenna MIMO directional antenna QMA 8.2 dBi

ANT-MP2-I-O-SS-M= Antennas

Poynting OMNI-914 network antenna Omni-directional antenna N-type 8 dBi Antennas

The OMNI-914 is a high-gain, ultra-wideband antenna designed to provide exceptional performance across all contemporary LTE/5G frequency bands. Covering a wide range from 617 to 4200 MHz, this antenna ensures reliable connectivity with balanced gain across all frequencies. Its robust design and superior omni-directional pattern control make it ideal for demanding marine and coastal applications.Ultra-Wideband Frequency Coverage: Supports LTE/5G bands from 617 to 4200 MHz, including LTE Band 71 and CBRS bands from 3400 to 4200 MHz.True Omni-Directional 4x4 MIMO: Features four high-gain omni-directional antennas with vertically separated radiating elements within a single radome.Superior Pattern Control: Ensures consistent performance across all frequency bands, maximising signal reception and connectivity.Marine-Grade Durability: Fully saltwater protected with a durable fiberglass radome, designed for highly corrosive environments.IP68 Protection Rating: Provides complete resistance against dust and water ingress, making it ideal for severe storm conditions at sea.Future-Proof Design: Supports next-generation LTE and 5G networks, ensuring long-term connectivity solutions.The OMNI-914 guarantees reliable signal reception worldwide, making it an ideal choice for marine, coastal, and inland applications requiring robust and future-proof LTE/5G connectivity.Ideal Applications- Marine applications: Super Yachts / Boats / Ferries- Enhanced LTE/4G and 5G reception- Increase system transmission reliability- High-end industrial grade router applications- Industrial and commercial LTE/5G deployment- Agricultural and farming LTE/5G data distribution

Poynting A-XPOL-0024-V1-02 network antenna Omni-directional antenna N-type 11 dBi Antennas

The XPOL-24 expands Poynting’s very popular Cross Polarised (XPOL) antenna range. The XPOL-24 is our first ever 4×4 MIMO 5G/LTE bands with exceptional performance. This is due to the incorporation of advanced metamaterial technology, making use of an Artificial Magnetic Conductor (AMC) and new registered/patent configuration, which has proven to yield exceptional improvements in bandwidth and gain. The radiation patterns of this antenna are exceptionally well controlled, which further adds to exceptional performance of the antenna.The XPOL-24 offers wideband frequency coverage from 617 to 4200 MHz, with a peak gain of 11dBi across the bands of operation. The antenna performs exceptionally well in the following frequency bands: 617 – 960 MHz, 1710 – 2170 MHz, 2300 – 2700 MHz & 3400 – 4200 MHz. The exceptional wideband performance is an important factor for 5G/LTE technologies, as these technologies rely on features such as Carrier Aggregation (CA) to provide the best possible reception and throughput over multiple frequency bands simultaneously. This makes the XPOL-24 the go to solution for current and future 5G/LTE antenna deployments.

Poynting LPDA-500 network antenna Directional antenna N-type 11.5 dBi Antennas

The LPDA-500 is Poynting’s next-generation log-periodic dipole array (LPDA) antenna, designed to deliver high-gain, ultra-wideband performance. Covering frequencies from 617 to 7200 MHz, this uni-directional antenna supports current 5G, future cellular bands, and Wi-Fi 6E, making it ideal for various wireless communication deployments.Ultra-Wideband Frequency Coverage Operates from 617–7200 MHz:, supporting 5G, LTE, and Wi-Fi 6E applications.Consistent High-Gain Performance: Ensures reliable and stable connectivity across the entire frequency range.Enhanced MIMO Compatibility: New adjustable mounting bracket allows for vertical, horizontal, or ±45° orientations for MIMO configurations.Proven Durability: Built to withstand extreme weather conditions, maintaining performance in harsh environments.Future-Proof Design: Engineered for long-term wireless deployments, ensuring seamless integration with evolving technologies.The LPDA-500 is the ideal solution for high-performance wireless communication, offering exceptional coverage, versatility, and durability for 5G, LTE, and Wi-Fi 6E networks.

Poynting RIPPLE-16 network antenna Omni-directional antenna SMA 9.5 dBi Antennas

Poynting Antennas introduces the Ripple series, an all-new marine antenna enclosure range designed to expand on the existing WaveHunter series. The Ripple enclosure transforms traditional networking setups into high-performance Customer Premises Equipment (CPE) by accommodating various LTE/5G routers, ensuring reliable connectivity in marine and coastal environments.Versatile Router Integration: Supports routers up to 300 x 250 x 110 mm³, mounted directly onto the base.High-Performance Omni-Directional Antenna Arrays:RIPL-16: Features 16 cross-polarised omni-directional antennas (8 vertically & 8 horizontally polarised) for enhanced performance.Wideband Frequency Coverage: Operates from 617 to 7200 MHz with a peak gain of 9.5 dBi, making it ideal for multi-router LTE & 5G bonded and aggregated deployments.Marine-Grade Weatherproof Design: Engineered to withstand harsh marine and coastal conditions with an IP65 rating for superior durability.The Ripple series is designed specifically for **marine and coastal applications**, ensuring robust, uninterrupted LTE and 5G connectivity even in the most challenging environments.

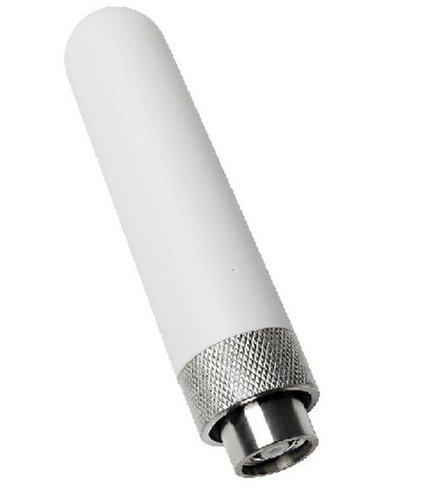

Cisco Aironet Dual-Band Omnidirectional Wi-Fi Antenna, 3 dBi (2.4 GHz)/5 dBi (5 GHz), White Dipole (1 Port), Direct Mount, 1-Year Limited Hardware Warranty (AIR-ANT2535SDW-R=) Antennas

The Cisco Aironet AIR-ANT2535SDW-R= Dual-Band Omnidirectional Wi-Fi Antenna is designed with improved coverage and performance in mind. This FCC-approved omnidirectional antenna provides a 360-degree radiation pattern and is intended for deployment when coverage in all directions from the antenna is required.

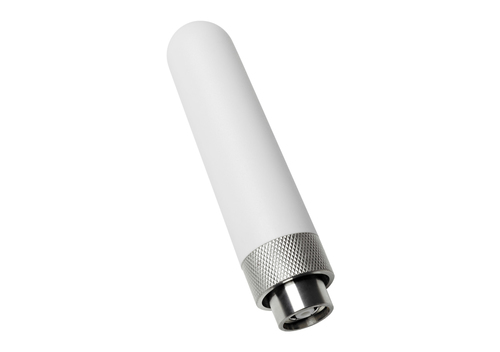

Cisco Aironet network antenna Omni-directional antenna RP-TNC 5 dBi Antennas

This document describes the Cisco Aironet AIR-ANT2535SDW-R and AIR-ANT2535SDW-RS antennas and provides electrical specifications and mounting instructions. The antenna operates over the 2.4 GHz and 5 GHz Wi-Fi bands and is designed for indoor use with the Cisco Aironet 1600, 2600, 3600, 3700, and Cisco Catalyst 9120AXE series access points. The antenna utilizes an omnidirectional radiation pattern to achieve a broad coverage area.The AIR-ANT2535SDW-RS antenna includes circuitry to enable self-identification of the antenna by the Cisco access points. The antenna has a built-in EEPROM that can be read by the AP to automatically configure the antenna type and gain in the wireless controller.

DUAL BAND DUAL-POLARIZED DIRECTIONAL ANTENNA Antennas

DUAL BAND DUAL-POLARIZED DIRECTIONAL ANTENNA

IR530SB-OFD-FCC/K9 Antennas
